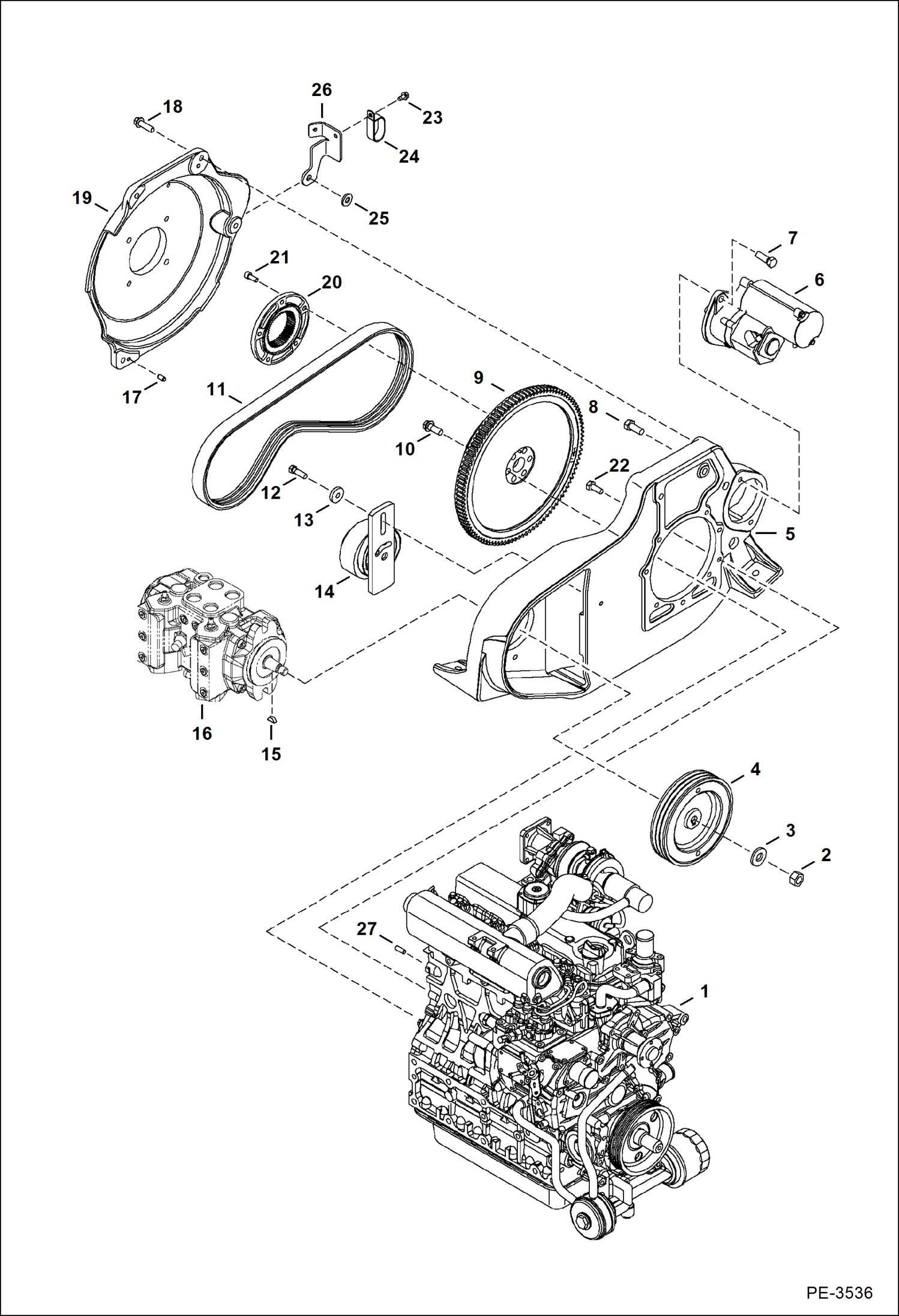

Запчасти Bobcat 435 ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA1526

2

96D10

NUT

3

27E10

WASHER

4

7125003

PULLEY

5

7127604

MOUNT, ENGINE

6

6681858

STARTER

7

1CM1235

BOLT

8

6719828

BOLT

9

7161408

FLYWHEEL, ENG ASSY See BTI388ldr - Was 7152035 - A

9

6510470

RING GEAR

9

14J1808

PIN

10

6598275

BOLT

11

7125004

BELT

12

17C620

BOLT

13

6704484

WASHER

14

7101660

IDLER assy

15

5J806

KEY

16

PUMP

17

7101341

PIN

18

29CM1035

SCREW

19

6811732

HOUSING

20

6670757

COUPLER

21

3GM820

SCREW

22

6719825

BOLT

23

26GM8016

SCREW

24

31H42

CLIP

25

15EM100

WASHER

26

7102968

BRACKET

27

23JM1024

PIN HARDENED PARALLE - Was 20JM1025 - B
