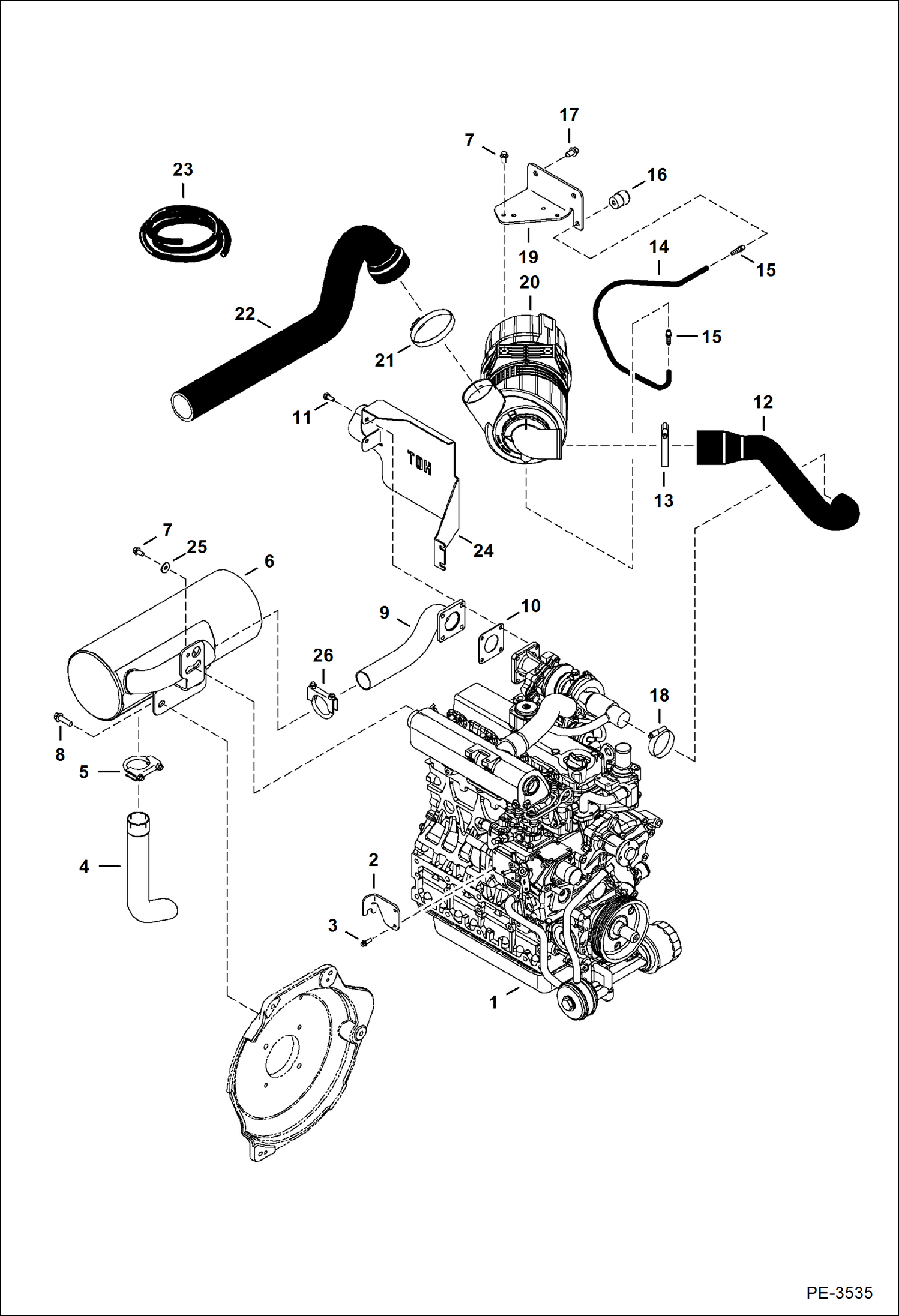

Запчасти Bobcat 435 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

ENGINE, V2403-M-DI-TE3B-BC-3 See Illustration ENGINE & GASKET KITS/ NA1526

2

6814273

BRACKET throttle

3

29CM620

SCREW

4

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

5

6677363

CLAMP, FULL CIRCLE

6

MUFFLER NLA - W/ 2'' (50,8 mm) inlet ID - Order 7000320 muffler & 7003028 tube - Was 7003025 - A

6

7000320

MUFFLER, EXHAUST W/ 1.77'' (44,9 mm) inlet ID

7

29CM816

SCREW

8

29CM1020

BOLT

9

6697945

TUBE 1.99'' (50.54 mm) OD

9

7003028

TUBE, EXHAUST 1.75'' (44,45 mm) OD

10

6727753

GASKET

11

6701123

SCREW

12

7151987

HOSE

13

42HC350

CLAMP

14

TUBE NLA - 24'' (610 mm) long - Order Ref. 23

15

6505813

CONNECTOR

16

6515007

GAUGE

17

26GM10020

BOLT

18

42HC250

CLAMP

19

6814640

BRACKET

20

6697901

FILTER, AIR

21

42H56

CLAMP

22

6815875

HOSE

23

6657720

TUBE bulk - sold per foot

24

7127717

COVER EXHAUST exhaust

25

17EM80

WASHER plain

26

7101708

CLAMP
