Запчасти Bobcat 435 CONTROL VALVE (Aux Section) HYDRAULIC/HYDROSTATIC SYSTEM

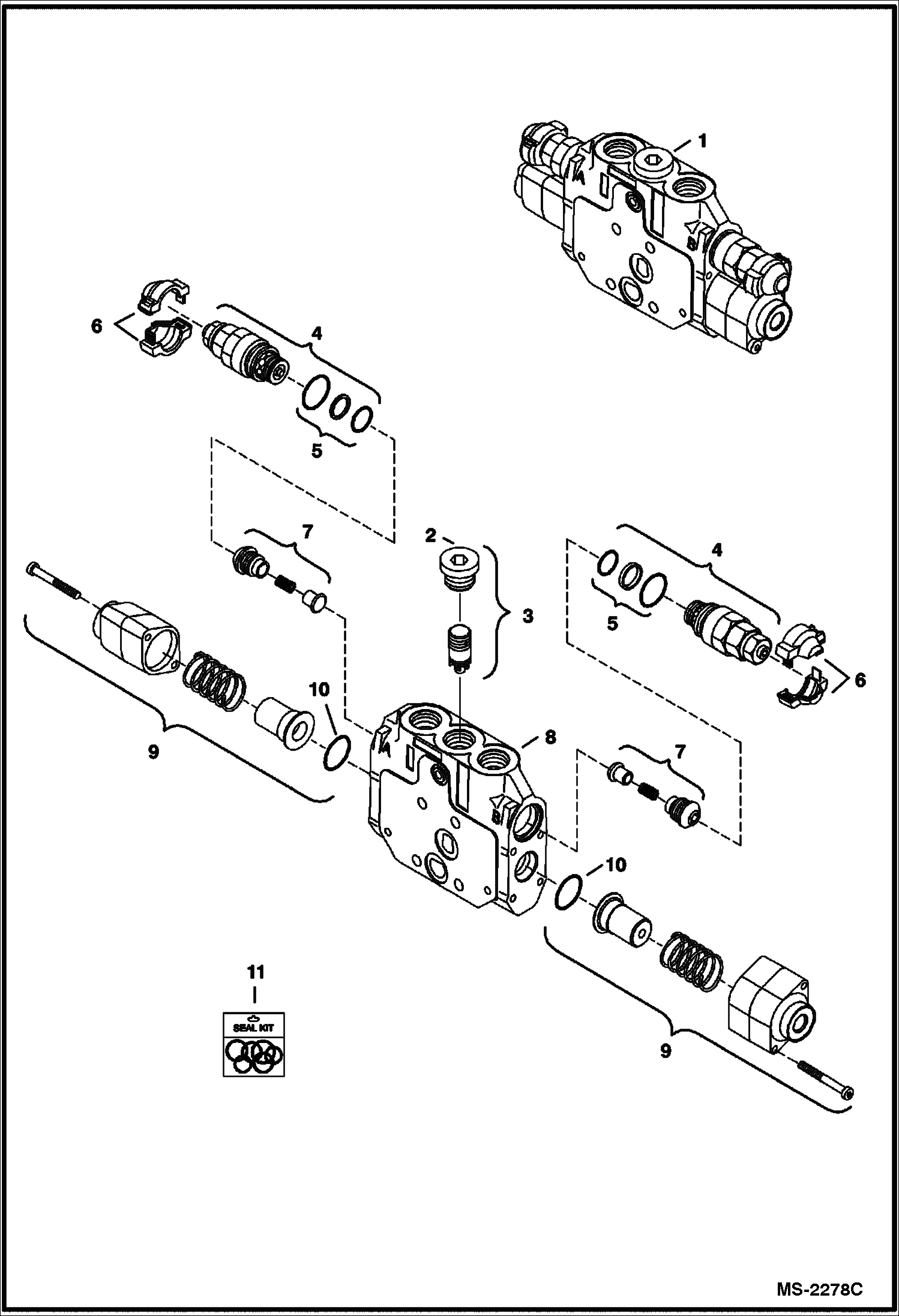

Схема запчастей Bobcat 435 - CONTROL VALVE (Aux Section) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6677454

VALVE aux

2

6685248

PLUG

3

6677690

KIT, COMPENSATOR

4

6685249

VALVE,RELIEF port A

4

6677475

RELIEF VALVE port B

5

6677468

SEAL KIT

6

6687072

KIT

7

6677689

CHECK VALVE check valve - Was 6686595 - A

8

BLOCK NSS - Order Ref. 1

9

6677699

ACTUATOR

10

O-RING NSS - Order Ref. 11

11

6677470

SEAL KIT

Выбрано товаров: 12
