Запчасти Bobcat 435 CONTROL VALVE (Blade Section) HYDRAULIC/HYDROSTATIC SYSTEM

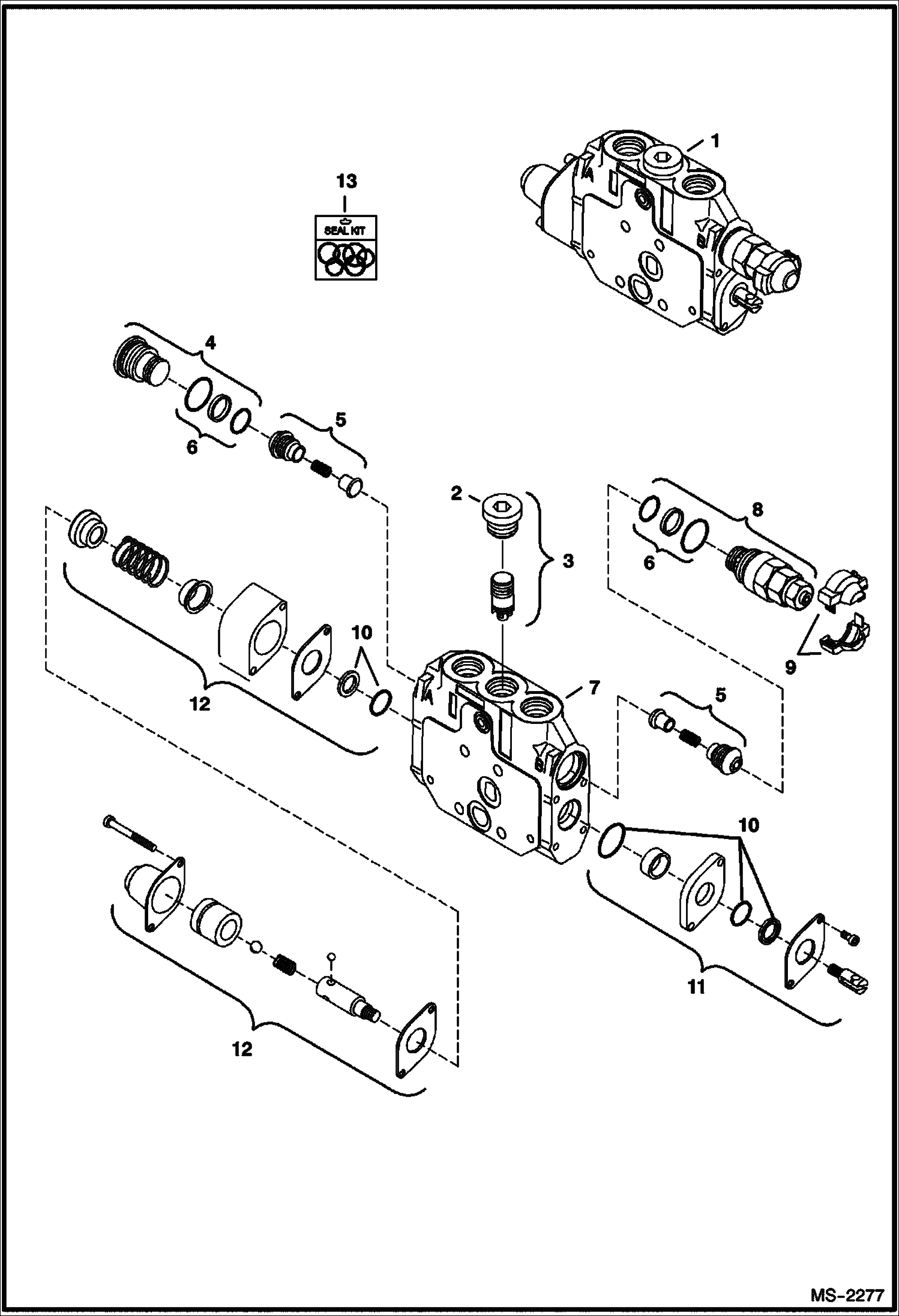

Схема запчастей Bobcat 435 - CONTROL VALVE (Blade Section) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6686640

VALVE blade

2

6685248

PLUG

3

6677690

KIT, COMPENSATOR

4

6677471

PLUG ASSY

5

6677689

CHECK VALVE check valve - Was 6686595 - A

6

6677468

SEAL KIT

7

BLOCK NSS - Order Ref. 1

8

6685249

VALVE,RELIEF

9

6687072

KIT

10

O-RING NSS - Order Ref. 13

11

6685253

END CAP

12

6686901

END CAP

13

6677470

SEAL KIT

Выбрано товаров: 13
