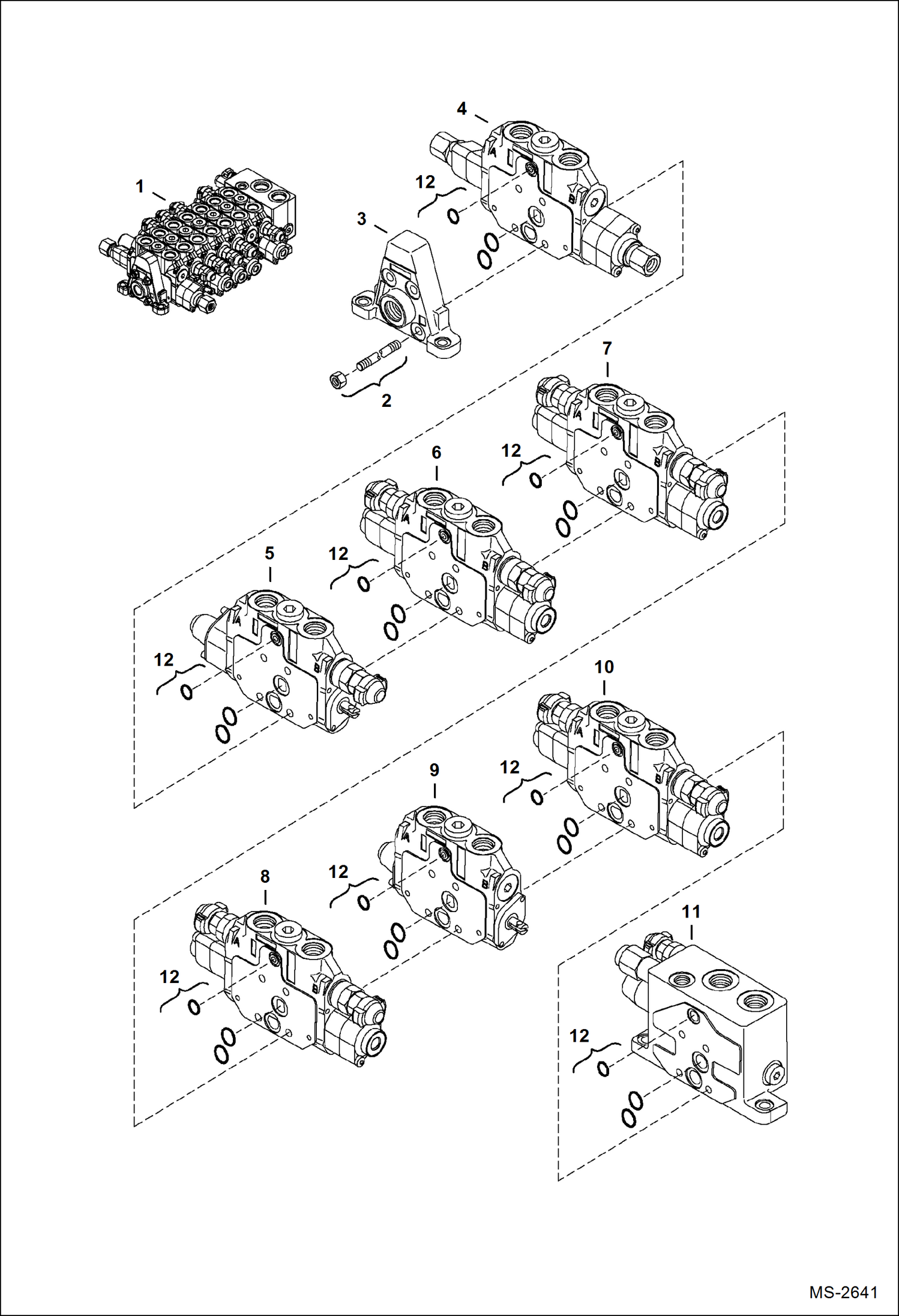

Запчасти Bobcat 435 CONTROL VALVE (Assembly) HYDRAULIC/HYDROSTATIC SYSTEM

1

6686596

VALVE

2

6685246

KIT kit

3

6677461

VALVE outlet

4

6691074

VALVE See Illustration CONTROL VALVE/ MS2276 slew

5

6686640

VALVE See Illustration CONTROL VALVE/ MS2277 blade

6

6686638

VALVE See Illustration CONTROL VALVE/ MS2278 bucket

7

6686636

VALVE See Illustration CONTROL VALVE/ MS2278A arm

8

6686634

VALVE See Illustration CONTROL VALVE/ MS2278B boom

9

6686642

VALVE See Illustration CONTROL VALVE/ MS2279 offset

10

6677454

VALVE See Illustration CONTROL VALVE/ MS2278C aux

11

6691104

INLET SECTION See Illustration CONTROL VALVE/ MS2280 inlet

12

6677467

KIT, SEAL
