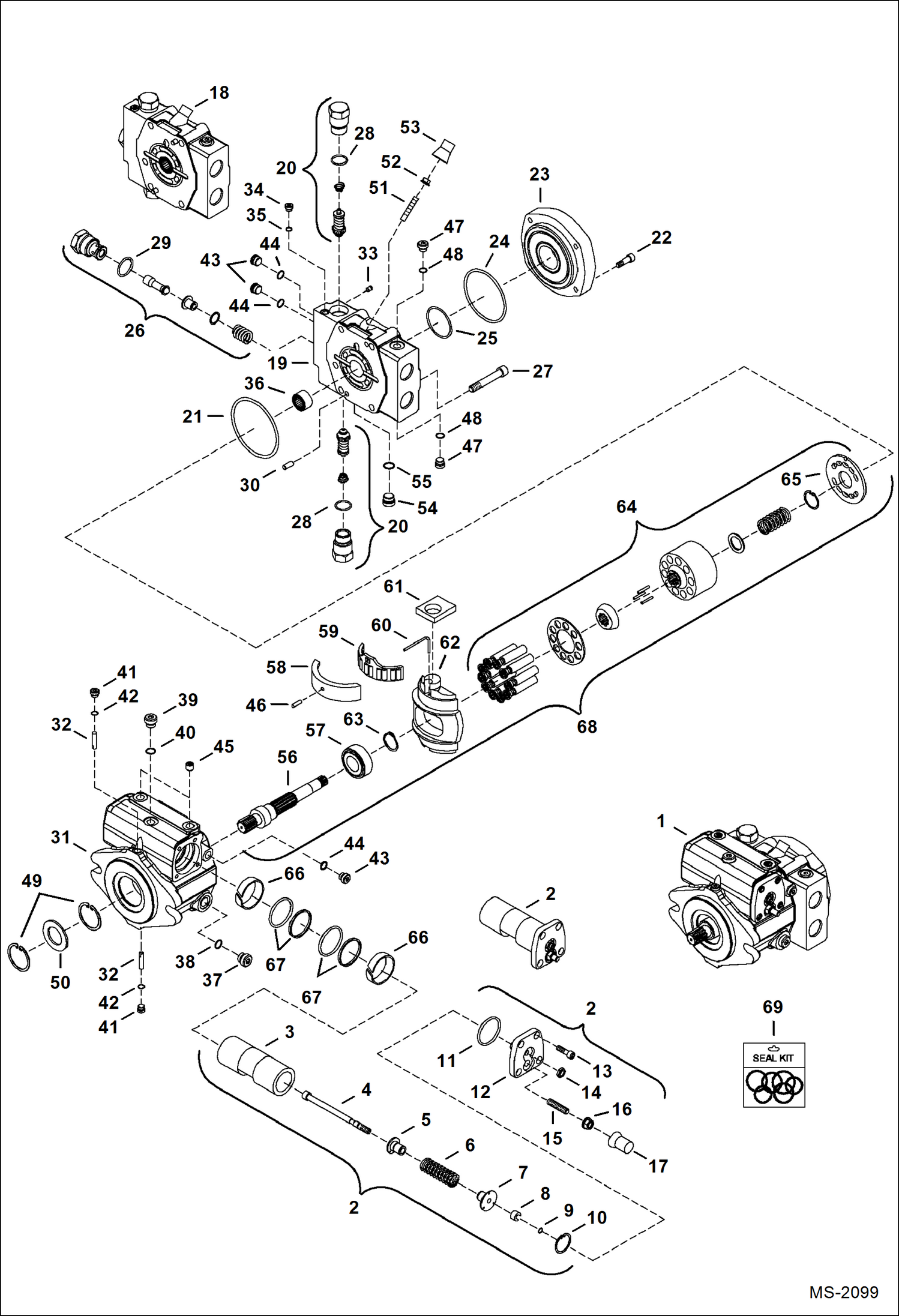

Запчасти Bobcat 435 HYDROSTATIC PUMP (Rear) (S/N AACD11078 & Below, AA8A11017 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

6698357

PUMP, HYD REAR

2

6698338

PISTON, ASSY

3

PISTON NSS - Order Ref. 2

4

SHAFT NSS - Order Ref. 2

5

COLLAR, SPRING NSS - Order Ref. 2

6

SPRING NSS - Order Ref. 2

7

COLLAR, SPRING NSS - Order Ref. 2

8

LOCK NSS - Order Ref. 2

9

SEAL NSS - Order Ref. 2

10

O-RING NSS - Order Ref. 2

11

6685408

O-RING

12

PLATE NSS - Order Ref. 2

13

BOLT NSS - Order Ref. 2

14

NUT NSS - Order Ref. 2

15

SCREW, ADJUSTING NSS - Order Ref. 2

16

NUT, LOCK NSS - Order Ref. 2

17

CAP, SECURITY NSS - Order Ref. 2

18

6698339

PORT PLATE ASSY - W/Ref. 19, 20, 26, 30, 33-36, 43, 47 & 54

19

BODY NSS - Order Ref. 18

20

6690943

VALVE, RELIEF preset to 350 bar - W/Ref. 28

21

6682949

O-RING

22

6691092

SCREW

23

6687770

PLATE

24

6685426

O-RING

25

6685419

O-RING

26

6685423

VALVE W/Ref. 29

27

6685413

SCREW

28

6685415

O-RING

29

6682929

O-RING

30

6682919

PIN

31

HOUSING NSS - Order Ref. 1

32

6967414

PIN Was 6671789 - D

33

6682879

PIN

34

6682960

SCREW

35

6685460

O-RING

36

6685414

BEARING

37

6682877

PLUG W/Ref. 38

38

6685460

O-RING Was 6698344 - A

39

6682876

PLUG W/Ref. 40

40

6698342

ORING

41

6682878

SCREW W/seal ring

42

O-RING NSS - Order Ref. 41

43

6682875

PLUG W/Ref. 44

44

6698343

ORING

45

6967419

ORIFICE

46

6685389

PIN

47

6682876

PLUG W/Ref. 48

48

6698342

ORING

49

6685398

RING

50

6685399

SEAL

51

6682881

SCREW

52

6682882

NUT

53

CAP, SECURITY NLA

54

6685390

SCREW W/Ref. 55

55

6698345

ORING

56

6685393

SHAFT

57

6685395

BEARING

58

6685394

LINER

59

6685396

BEARING

60

6682887

WIRE

61

6685388

RING slide

62

6685392

CRADLE

63

6685397

RING

64

7000301

PISTON GROUP

65

7000300

PLATE, VALVE

66

6685405

RING wear

67

6685406

RING sealing

68

6698341

ROTATOR, ASSY

69

6698350

SEAL KIT
