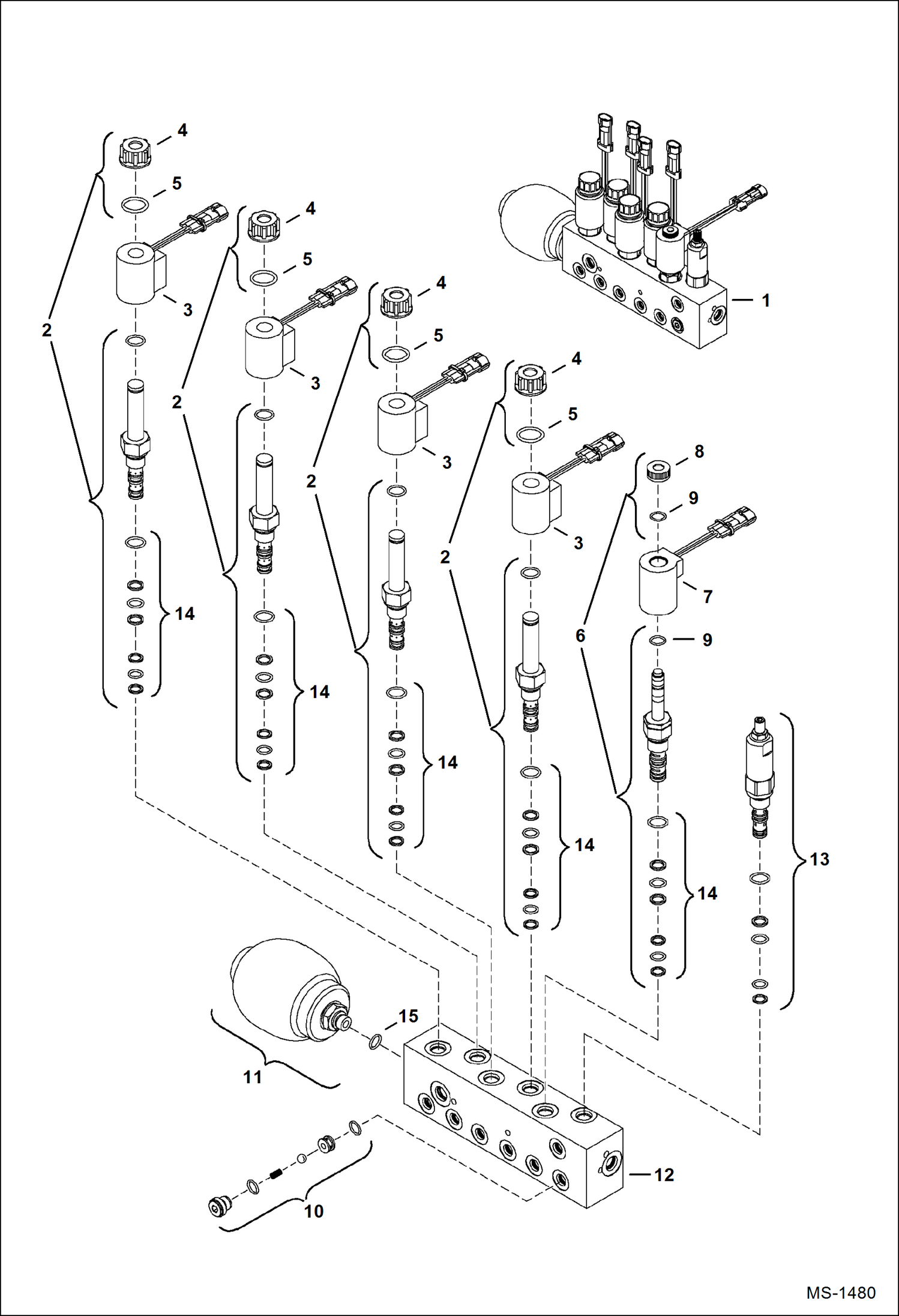

Запчасти Bobcat 435 MANIFOLD ASSY (W/Angle Blade Option) HYDRAULIC/HYDROSTATIC SYSTEM

1

6692658

MANIFOLD W/Ref. 2-15

2

6679032

VALVE

3

6679074

COIL

4

6679075

NUT

5

6679684

O-RING

6

6678988

VALVE Was 6693144 - A

7

6678984

COIL

8

6679076

NUT

9

6679509

O-RING

10

6678990

VALVE

11

6685832

ACCUMULATOR

12

BLOCK NSS - Order Ref. 1

13

6685284

VALVE

14

6679078

SEAL KIT

15

79K6

O RING 10
