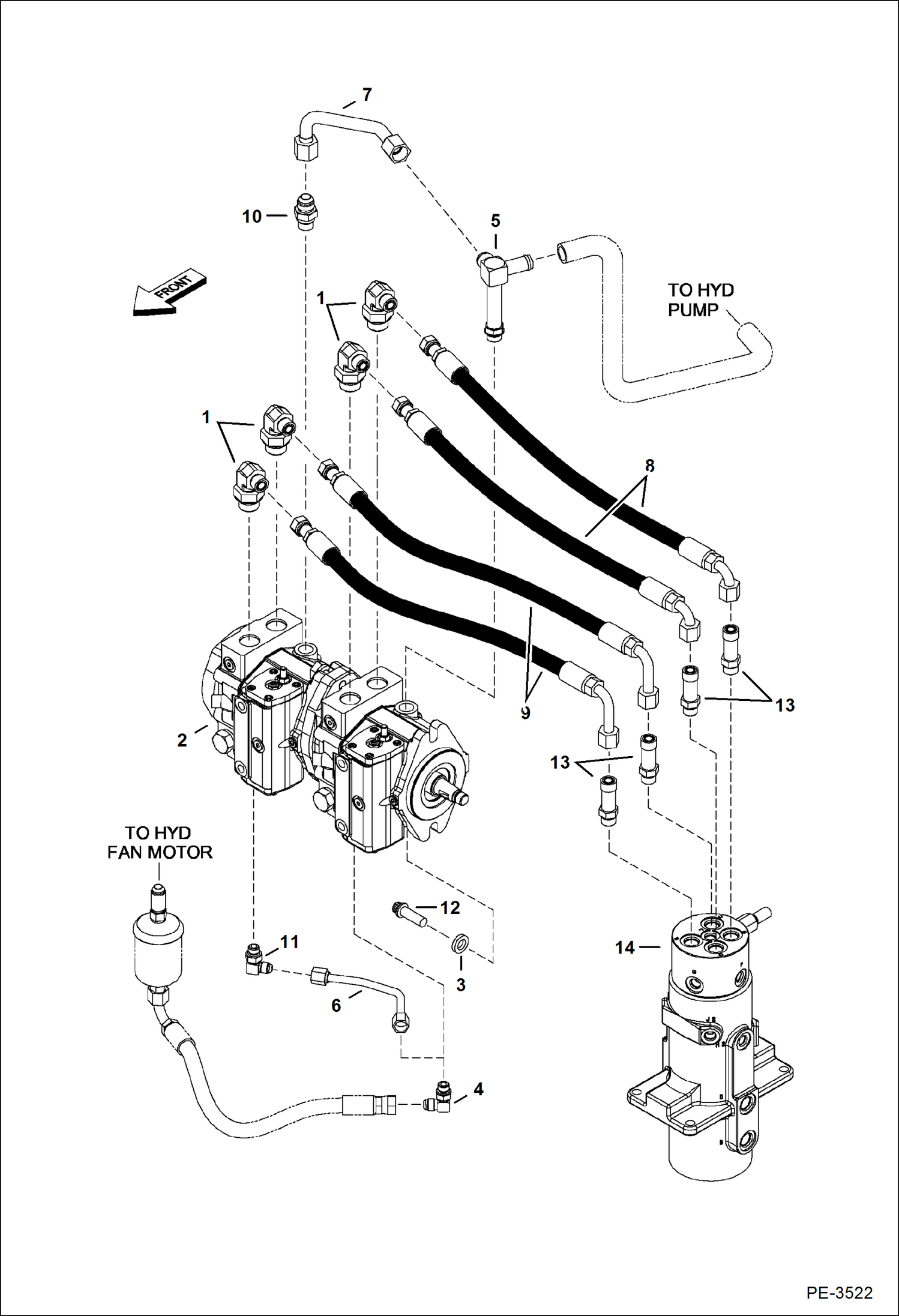

Запчасти Bobcat 435 HYDROSTATIC CIRCUITRY (Hydrostatic Pump) (S/N AACD11078 & Below, AA8A11017 & Below) HYDRAULIC/HYDROSTATIC SYSTEM

1

6682988

ELBOW

1

79K12

O RING 10

1

55K14

O-RING face seal

2

6697913

PUMP See Illustration HYDROSTATIC PUMP/ MS2591

3

6701097

WASHER

4

6725182

TEE

4

79K6

O RING 10

5

6811697

TEE

5

79K8

O RING 10

6

6813390

TUBE

7

6815004

TUBE

8

7163122

HOSE, HYD ASSY Was 7159244 - A

9

6815435

HOSE

10

15KB1008

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

17KB0606

FITTING

11

79K6

O RING 10

12

93G824

BOLT

13

6682989

CONNECTOR

13

79K8

O RING 10

13

58K014

O-RING 10 face seal

14

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy
