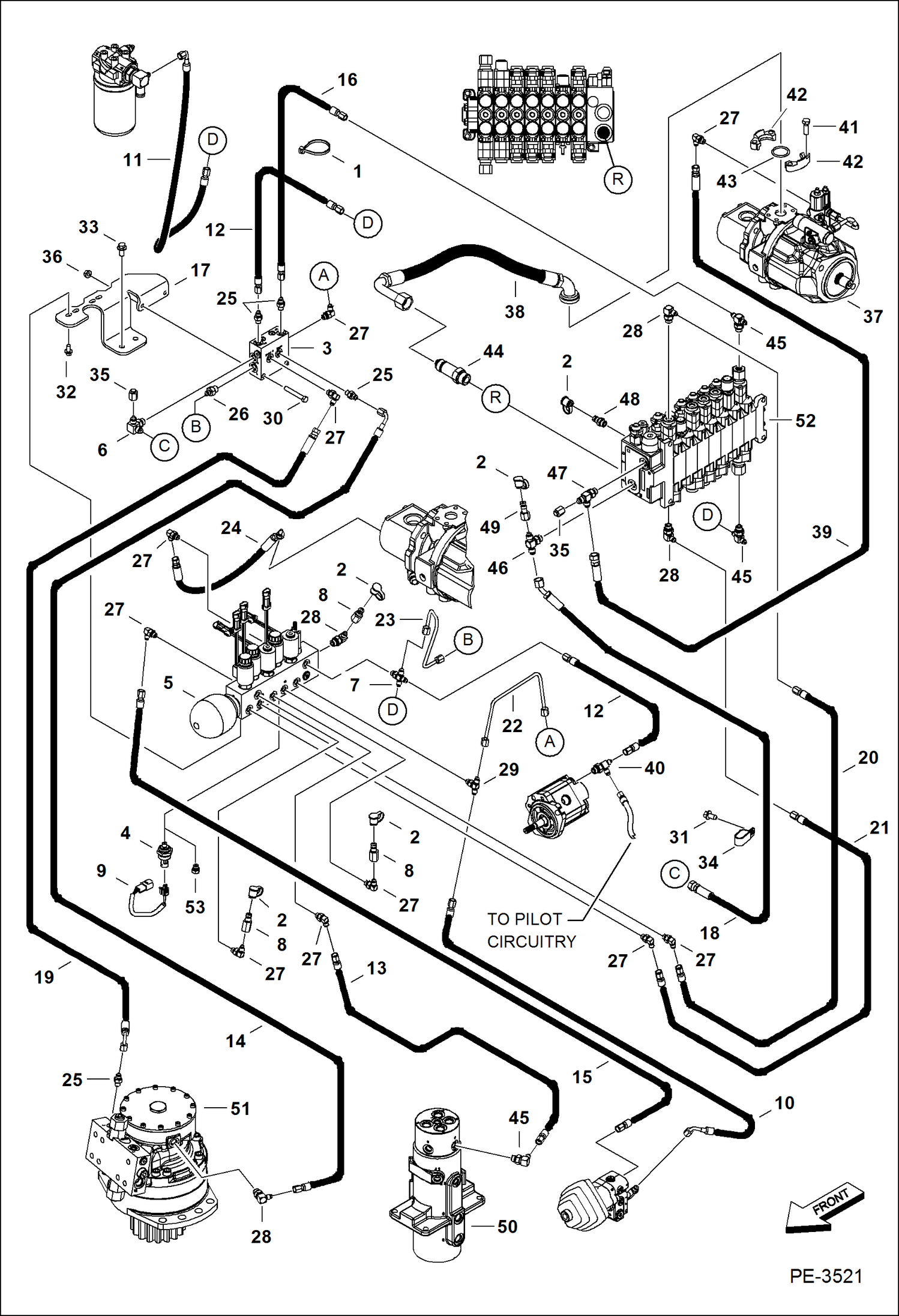

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC/HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

6630367

CAP

3

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

4

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

5

6685165

MANIFOLD See Illustration MANIFOLD ASSY/ MS1935 W/O angle blade option

5

6692658

MANIFOLD See Illustration MANIFOLD ASSY/ MS1480 W/angle blade option

6

6725182

TEE

6

79K6

O RING 10

7

6812830

CROSS

7

79K4

O RING 10

8

7000009

PLUG

9

7105174

HARNESS

10

7106599

HOSE

11

7106603

HOSE Was 7106608 - A

12

7106615

HOSE

13

7107648

HOSE

14

7107649

HOSE

15

7107650

HOSE

16

7107658

HOSE

17

7141385

BRACKET, MANIFOLD

18

7141411

HOSE

19

7141648

HOSE

20

7141872

HOSE

21

7141873

HOSE

22

7144545

TUBELINE

23

7144546

TUBELINE

24

7147827

HOSE, HYD

25

15KB0404

FTG HYD S Connector

25

79K4

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10

27

17KB0404

FTG HYD ELBOW 90

27

79K4

O RING 10

28

17KB0406

FITTING, HYD ELBOW

28

79K6

O RING 10

29

19KB0404

FITTING, HYD TEE

29

79K4

O RING 10

30

1CM860

BOLT

31

26GM10020

BOLT

32

29CM816

SCREW

33

29CM1020

BOLT

34

31H38

CLAMP

35

36K5

CAP

36

43DM8

NUT

37

7001430

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ B23896 - assy - W/gear pump - Was 6685694 - A

38

6815429

HOSE

39

7107865

HOSE

40

21KB0406

FTG HYD STRAIGHT TEE

40

79K6

O RING 10

41

17C620

BOLT

42

19J16

FLANGE

43

58K219

O RING 10

44

16KB1212

FITTING, HYD CONNECTOR

44

79K12

O RING 10

45

19KB0406

FITTING, HYD TEE

45

79K6

O RING 10

46

19KB0606

TEE

46

79K6

O RING 10

47

21KB0606

FTG HYD STRAIGHT TEE

47

79K6

O RING 10

48

6630168

COUPLER

48

79K6

O RING 10

49

6661753

PLUG

50

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

51

6689391

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2588

52

6686596

VALVE

53

24K2

PLUG

53

79K3

O RING 10
