Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Cooler & Direct to Tank Option) HYDRAULIC/HYDROSTATIC SYSTEM

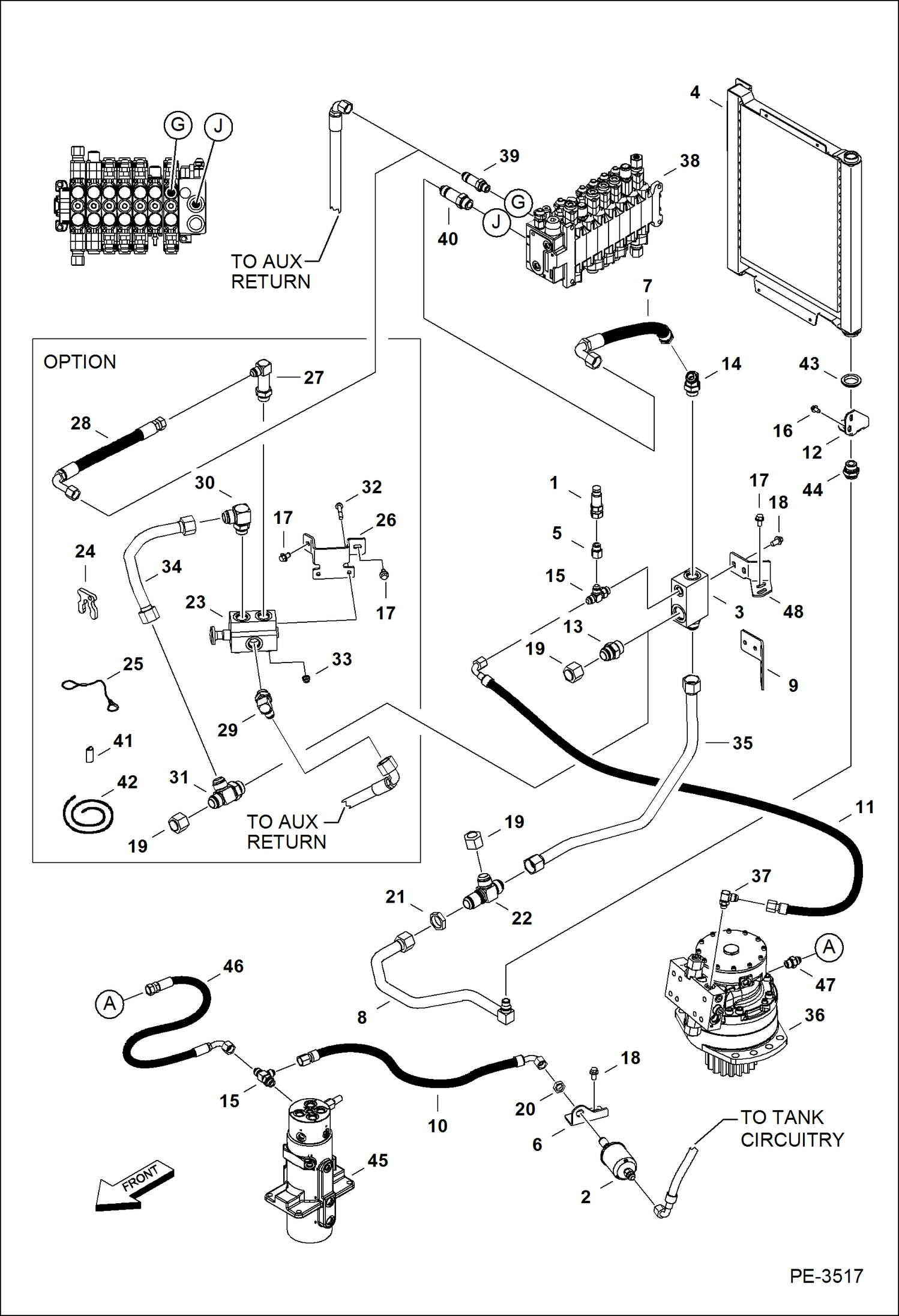

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Cooler & Direct to Tank Option) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6667806

COUPLER

2

6681012

FILTER, OIL HYD IN-LINE

3

6681586

VALVE pressure build-up

3

6681968

SPRING

3

6681969

POPPET

3

6676044

ADAPTER

4

6683316

EXCHANGER

5

6812828

ADAPTER

5

79K8

O RING 10

6

6814286

BRACKET

7

6815433

HOSE

8

6815879

TUBE

9

6815885

BRACKET

10

7125154

HOSE

11

7141621

HOSE

12

7147737

BRACKET, OIL COOLER

13

15KB1616

FITTING, HYD CONNECTOR

13

79K16

O RING 10

14

18KB1212

FITTING, HYD ELBOW

14

79K12

O RING 10

15

21KB0808

FTG HYD STRAIGHT TEE

15

79K8

O RING 10

16

26GM8016

SCREW

17

26GM10020

BOLT

18

29CM1020

BOLT

19

36K10

CAP

20

86F6

NUT

21

86F10

NUT

22

91K10

FITTING

23

6660267

VALVE See Illustration SELECTOR VALVE/ B13660

24

6808717

CLIP

25

WIRE ROPE NLA - 14'' (355 mm) long - Order Ref. 41 & 42

26

6814290

BRACKET

27

7107132

ELBOW

27

79K12

O RING 10

28

7107717

HOSE

29

17KB1012

FITTING, HYD ELBOW

29

79K12

O RING 10

30

17KB1612

FITTING, HYD ELBOW

30

79K12

O RING 10

31

21KB1616

FITTING, HYD TEE

31

79K16

O RING 10

32

29CM850

SCREW

33

43DM8

NUT

34

6814176

TUBELINE

35

7141792

TUBELINE

36

6689391

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2588

37

17KB0806

FITTING, HYD ELBOW

37

79K6

O RING 10

38

6686596

VALVE

39

16KB1008

FITTING, HYD ELBOW

39

79K8

O RING 10

40

16KB1212

FITTING, HYD CONNECTOR

40

79K12

O RING 10

41

6558310

SLEEVE

42

6558309

WIRE ROPE bulk - sold per foot

43

6681623

BUSHING

44

10L1212

ADAPTER

45

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

46

7106221

HOSE

47

15KB0808

FITTING, HYD CONNECTOR

47

79K8

O RING 10

48

7160487

BRACKET, BUILD UP VALVE

Выбрано товаров: 63
