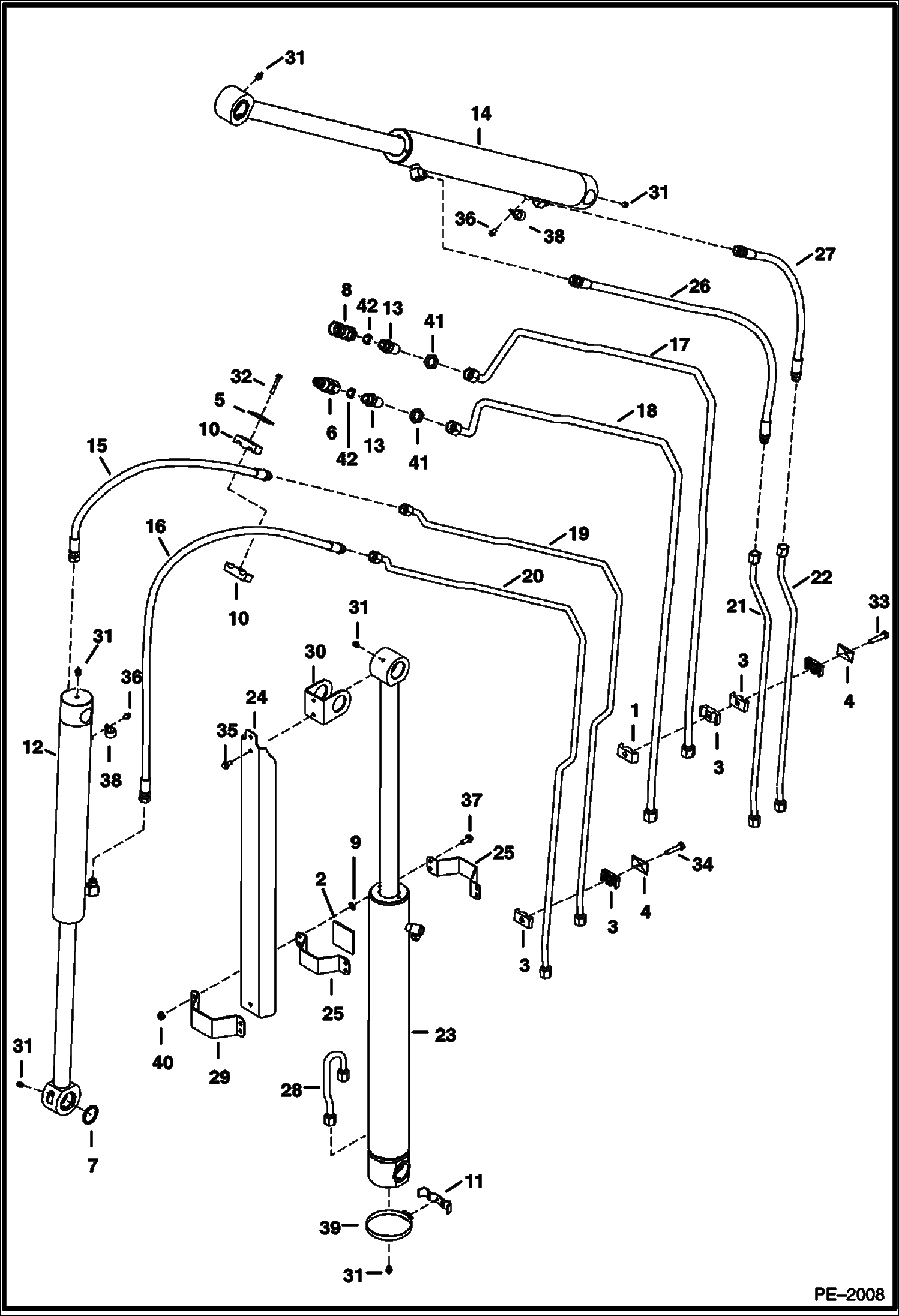

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC/HYDROSTATIC SYSTEM

1

6577697

CLAMP

2

6578278

PAD

3

6592506

CLAMP

4

6652521

PLATE

5

6653493

COVER

6

6674688

COUPLER, FF MALE straight

7

6669287

SEAL

8

6672960

COUPLER, FF FEMALE straight

9

6674264

RETAINER NUT

10

6683610

CLAMP

11

6806461

CLAMP

12

7148324

CYLINDER See Illustration BUCKET CYLINDER/ PE3615 - bucket assy

13

6812823

ADAPTER W/Ref. 42

14

7167481

CYLINDER, ARM ASSY See Illustration ARM CYLINDER/ PE3613 - arm - Also Order 6816829 wear bushing - Was 7155447 - A

15

6814098

HOSE std arm

15

7100898

HOSE long arm

16

6814099

HOSE std arm

16

7100899

HOSE long arm

17

7166621

TUBELINE, HYD Was 6814345 - A

17

TUBELINE, HYD See Illustration SECONDARY AUXILIARY/ NA2111 for secondary auxiliary option

18

7166622

TUBELINE, HYD Was 6814346 - A

18

TUBELINE, HYD See Illustration SECONDARY AUXILIARY/ NA2111 for secondary auxiliary option

19

6814347

TUBE

20

6814348

TUBE

21

6814349

TUBE

22

6814350

TUBE

23

7156126

CYLINDER, BOOM See Illustration BOOM CYLINDER/ PE3614 boom - Also Order 6816676 wear bushing

24

6814642

CHANNEL

25

6814644

CLAMP

26

6815302

HOSE

27

6815301

HOSE

28

6815315

TUBE

29

6815936

CLAMP

30

6816283

CHANNEL

31

10H25

FITTING, GREASE 5 grease

32

17C532

BOLT 5

33

1CM1050

SCREW

34

1CM1090

BOLT

35

26GM10020

BOLT

36

29CM812

BOLT

37

29CM1025

BOLT

38

30H49

CLAMP

39

42H72

CLAMP

40

51DM10

NUT

41

86F8

NUT 5

42

79K12

O RING 10
