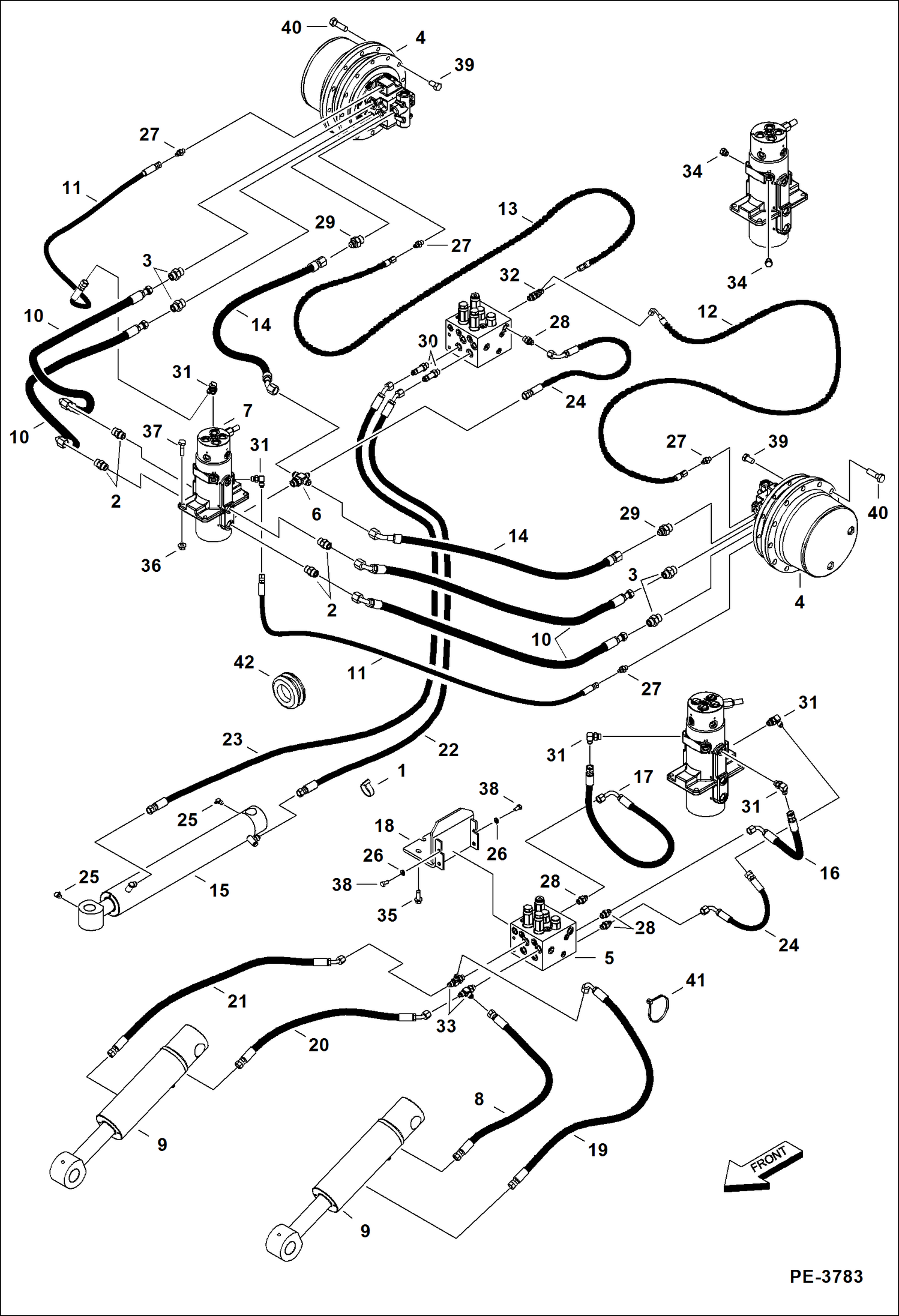

Запчасти Bobcat 435 HYDRAULIC/HYDROSTATIC CIRCUITRY (Lower)(W/Angle Blade Option) HYDRAULIC/HYDROSTATIC SYSTEM

1

6678669

STRAP

2

6682986

ADAPTOR

2

79K8

O RING 10

2

58K014

O-RING 10 face seal

3

6683811

ADAPTER

3

79K10

O RING 10

3

58K014

O-RING 10

4

6689796

MOTOR, MOTOR HYD See Illustration TRAVEL MOTOR/ MS2319

5

6691716

VALVE See Illustration ANGLE BLADE VALVE/ MS2585

6

6692916

TEE

6

79K8

O RING 10

7

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906

8

6814832

HOSE

9

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

10

6816844

HOSE

11

6816846

HOSE

12

7106594

HOSE

13

7106595

HOSE

14

7125151

HOSE

15

7134017

CYLINDER See Illustration ANGLE BLADE CYLINDER/ PE3358

16

7139109

HOSE

17

7139110

HOSE

18

7157389

MOUNT, VALVE

19

7159150

HOSE, HYD ASSY

20

7159151

HOSE, HYD ASSY

21

7159152

HOSE, HYD ASSY

22

7159153

HOSE, HYD ASSY

23

7159154

HOSE, HYD ASSY

24

7159203

HOSE, HYD ASSY

25

12H15

FITTING, GREASE 5

26

15EM80

WASHER

27

15KB0404

FTG HYD S Connector

27

79K4

O RING 10

28

15KB0606

FITTING, HYD CONNECTOR

28

79K6

O RING 10

29

15KB0810

FITTING, HYD CONNECTOR

29

79K10

O RING 10

30

16KB0606

FTG HYD L CONNECTOR

30

79K6

O RING 10

31

17KB0606

FITTING

31

79K6

O RING 10

32

21KB0406

FTG HYD STRAIGHT TEE

32

79K6

O RING 10

33

21KB0606

FTG HYD STRAIGHT TEE

33

79K6

O RING 10

34

24K5

PLUG

34

79K6

O RING 10

35

26GM10030

BOLT

36

43DM10

NUT

37

53CM1040

SCREW

38

55CM816

BOLT

39

55CM1425

SCREW

40

55CM1445

SCREW

41

6624289

STRAP, TIE

42

7165950

GROMMET
