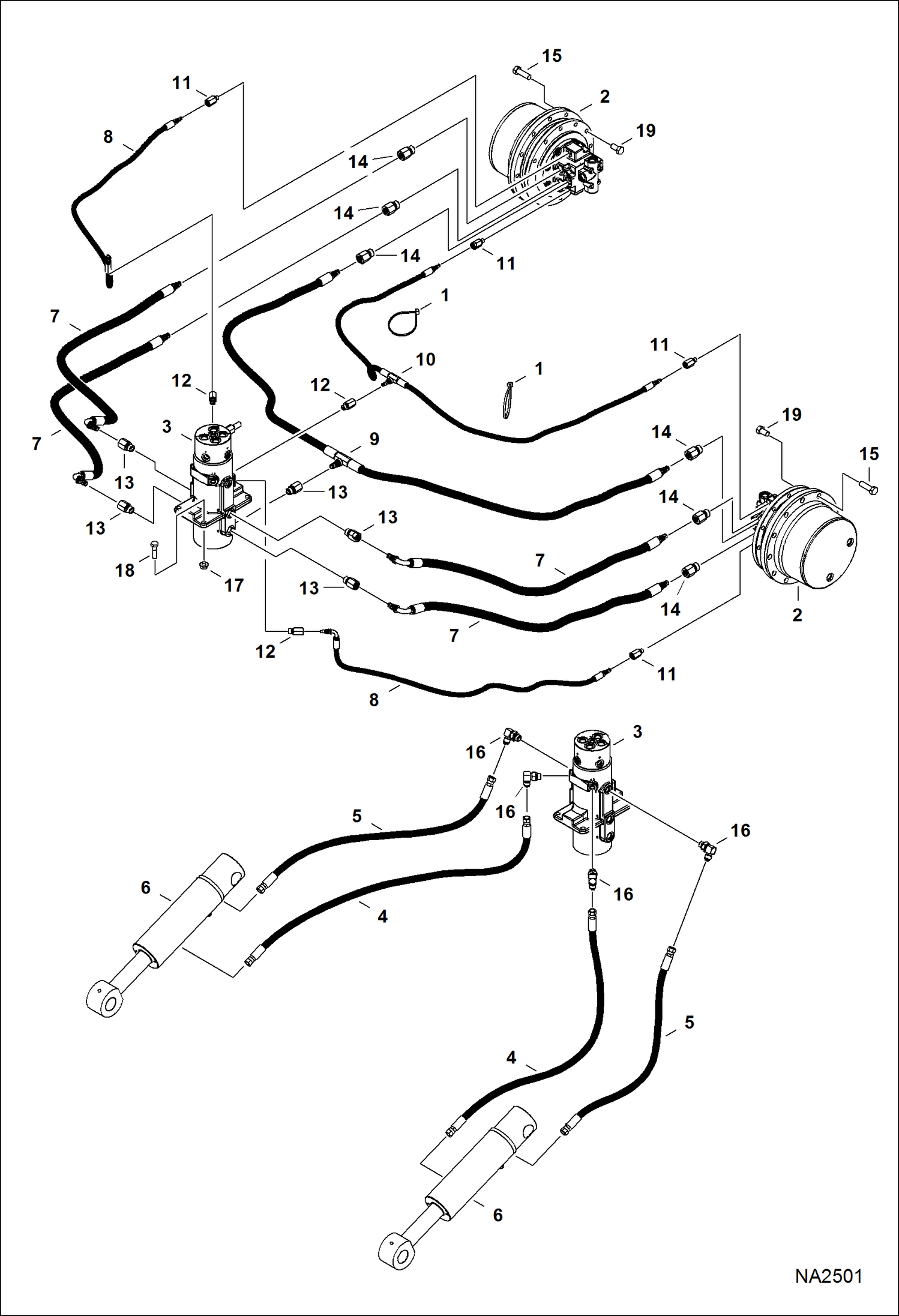

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade) (S/N AACD11215 & Above, AA8A11159 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

6689796

MOTOR, MOTOR HYD See Illustration TRAVEL MOTOR/ MS2319

3

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906

4

6814831

HOSE

5

6814832

HOSE

6

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3652

7

7157928

HOSE, HYD ASSY Also Order Ref. 13 & 14

8

7157929

HOSE, HYD ASSY Also Order Ref. 11 & 12

9

7157932

HOSE, HYD ASSY Also Order Ref. 13 & 14

10

7157933

HOSE, HYD ASSY Also Order Ref. 11 & 12

11

15HB0404

FITTING, HYD CONNECTOR

11

78K4

O'RING

12

15HB0406

FITTING, HYD CONNECTOR Also Order hose

12

78K6

O'RING

13

15HB0808

FITTING Also Order hose

13

78K8

O RING

14

15HB0810

FITTING, HYD CONNECTOR

14

78K10

O RING

15

55CM1445

SCREW

16

17KB0606

FITTING

16

79K6

O RING 10

17

43DM10

NUT

18

53CM1040

SCREW

19

55CM1425

SCREW
