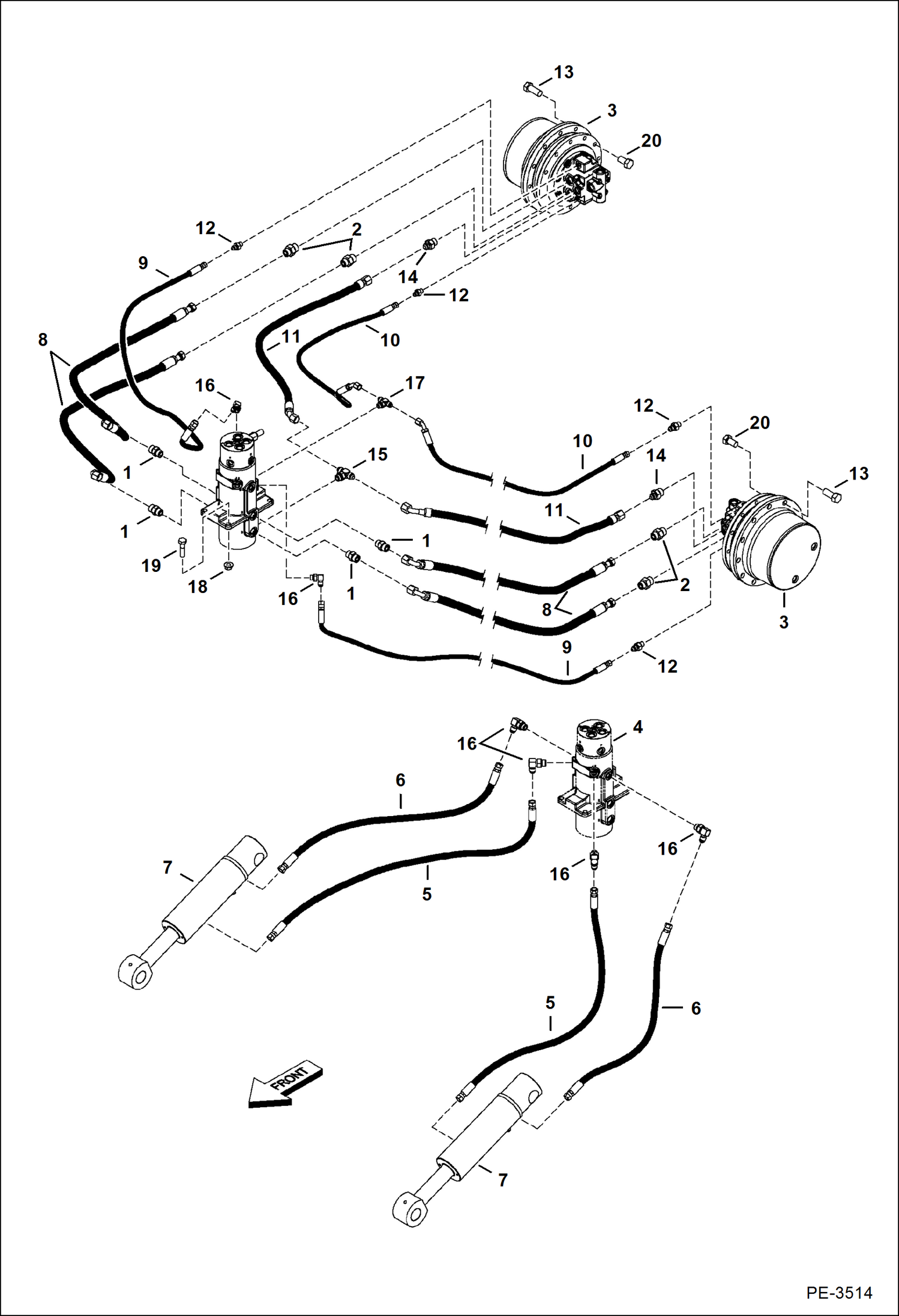

Запчасти Bobcat 435 HYDRAULIC/HYDROSTATIC CIRCUITRY (Lower)(W/O Angle Blade Option) (S/N AACD11001 - 11214, AA8A11001 - 11158) HYDRAULIC/HYDROSTATIC SYSTEM

1

6682986

ADAPTOR

1

79K8

O RING 10

1

58K014

O-RING 10 face seal

2

6683811

ADAPTER

2

79K10

O RING 10

2

58K014

O-RING 10 face seal

3

6689796

MOTOR, MOTOR HYD See Illustration TRAVEL MOTOR/ MS2319

4

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

5

6814831

HOSE

6

6814832

HOSE

7

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

8

6816844

HOSE

9

6816846

HOSE

10

7107672

HOSE

11

7125151

HOSE

12

15KB0404

FTG HYD S Connector

12

79K4

O RING 10

13

55CM1445

SCREW

14

15KB0810

FITTING, HYD CONNECTOR

14

79K10

O RING 10

15

19KB0808

Fitting Hydraulic Branch Tee

15

79K8

O RING 10

16

17KB0606

FITTING

16

79K6

O RING 10

17

19KB0406

FITTING, HYD TEE

17

79K6

O RING 10

18

43DM10

NUT

19

53CM1040

SCREW

20

55CM1425

SCREW
