Запчасти Bobcat 435 SECONDARY AUXILIARY (Option) ACCESSORIES & OPTIONS

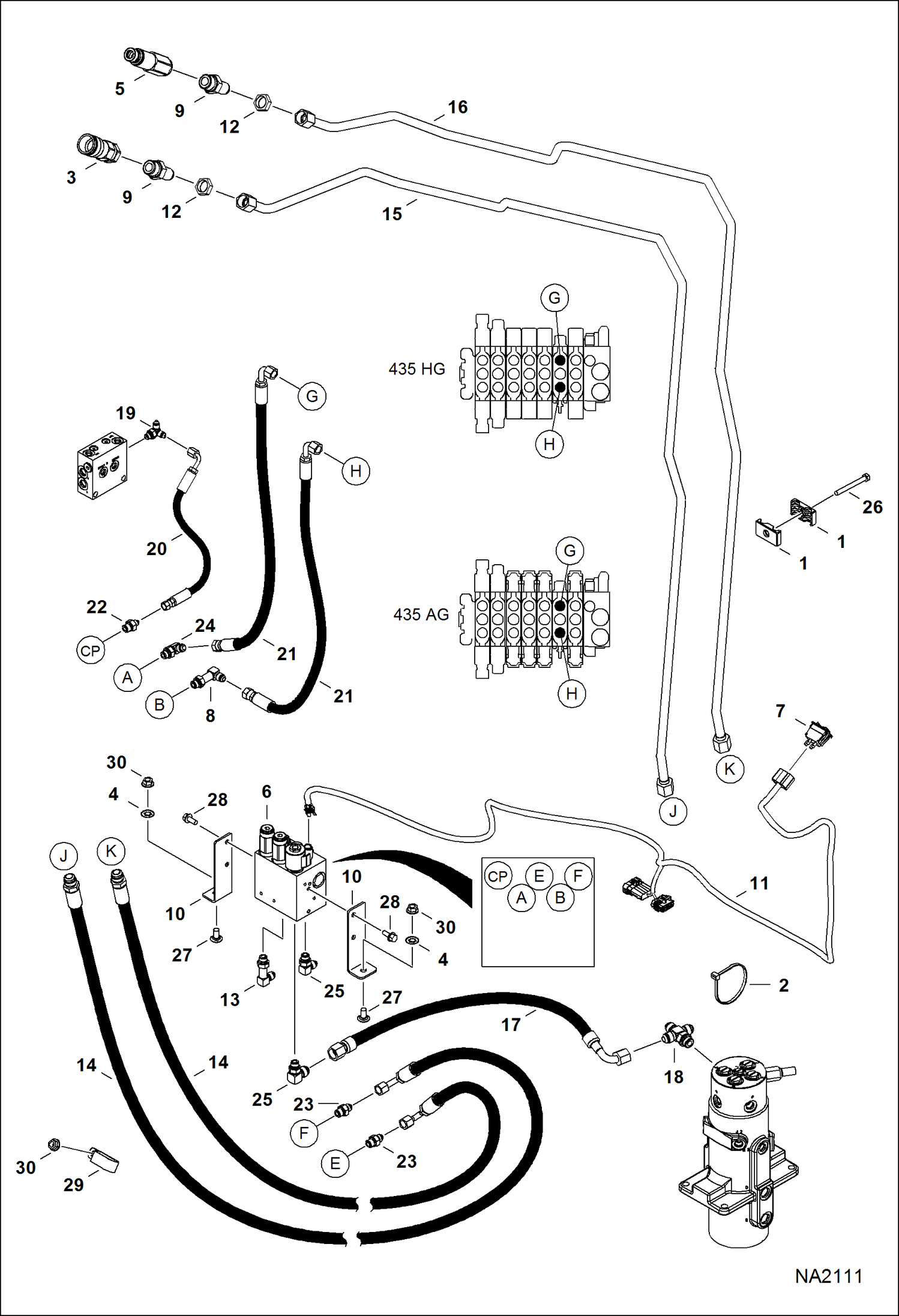

Схема запчастей Bobcat 435 - SECONDARY AUXILIARY (Option) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6577697

CLAMP

2

6624289

STRAP, TIE

3

6672960

COUPLER, FF FEMALE straight

4

6674264

RETAINER NUT

5

6674688

COUPLER, FF MALE straight

5

6679841

SEAL Was 6672026 - A

6

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

7

6679906

SWITCH

8

6812815

FITTING

8

79K6

O RING 10

9

6812816

ADAPTER

9

79K12

O RING 10

10

6816892

BRACKET

11

6818394

HARNESS

12

86F7

LOCK NUT

13

7103659

FITTING

13

79K6

O RING 10

14

7163172

HOSE, ASSY HYD

15

7164569

TUBELINE, HYD

16

7164570

TUBELINE, HYD

17

7164692

HOSE, HYD ASSY

18

7165409

FITTING, CROSS

18

79K8

O RING 10

19

7166606

TEE

19

79K4

O RING 10

20

7166628

HOSE, HYD ASSY

21

7167709

HOSE, HYD ASSY

22

15KB0406

FTG HYD S CONNECTOR

22

79K6

O RING 10

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

17KB0606

FITTING

24

79K6

O RING 10

25

17KB0806

FITTING, HYD ELBOW

25

79K6

O RING 10

26

1CM1070

BOLT

27

28CM1020

BOLT

28

31C512

BOLT

29

31H46

CLAMP

30

51DM10

NUT

Выбрано товаров: 40
