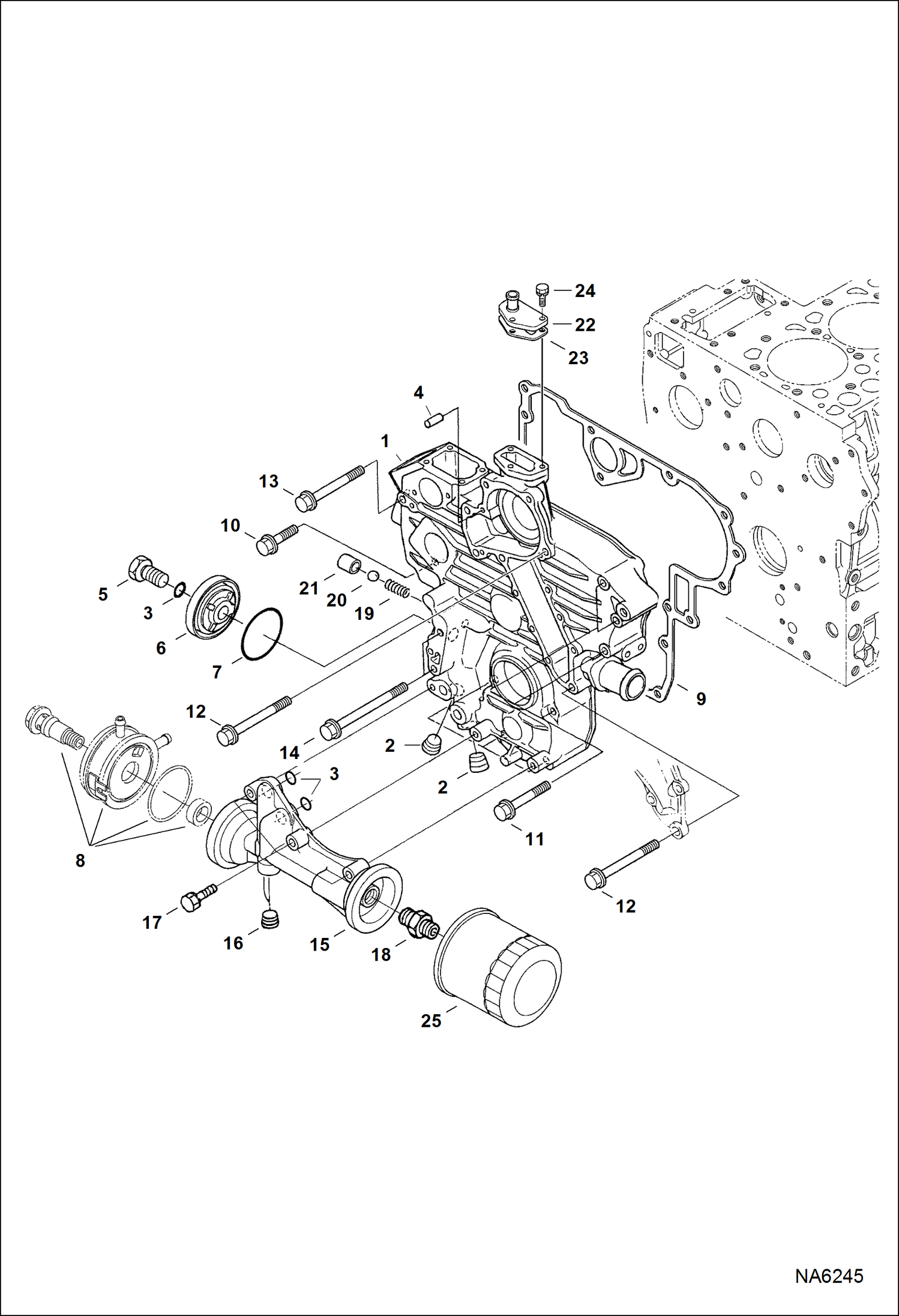

Запчасти Bobcat 435 GEARCASE (S/N E/ 9G0001 & Above) POWER UNIT

1

7016900

HOUSING, GEAR W/Ref. 2

2

6672360

PLUG

3

6685466

O-RING

4

3974395

PIN straight

5

6684768

BOLT

6

6684766

COVER

7

6684769

O-RING

8

OIL COOLER See Illustration OIL COOLER/ B27089

9

7010599

GASKET, GEARCASE

10

6680706

BOLT

11

6692375

BOLT

12

6692377

BOLT

13

6680686

BOLT

14

6692376

BOLT

15

6684773

BASE, FILTER

16

6672360

PLUG

17

6960963

BOLT

18

6653809

CONNECTOR oil filter

19

6652652

SPRING

20

10J13

BALL Was 6969574 - A

21

3974893

SEAT valve

22

3974894

FLANGE water return

23

6666803

GASKET water return flange

24

1CM620

BOLT Was 4CM620 - A

25

6675517

FILTER, OIL ENG 12
