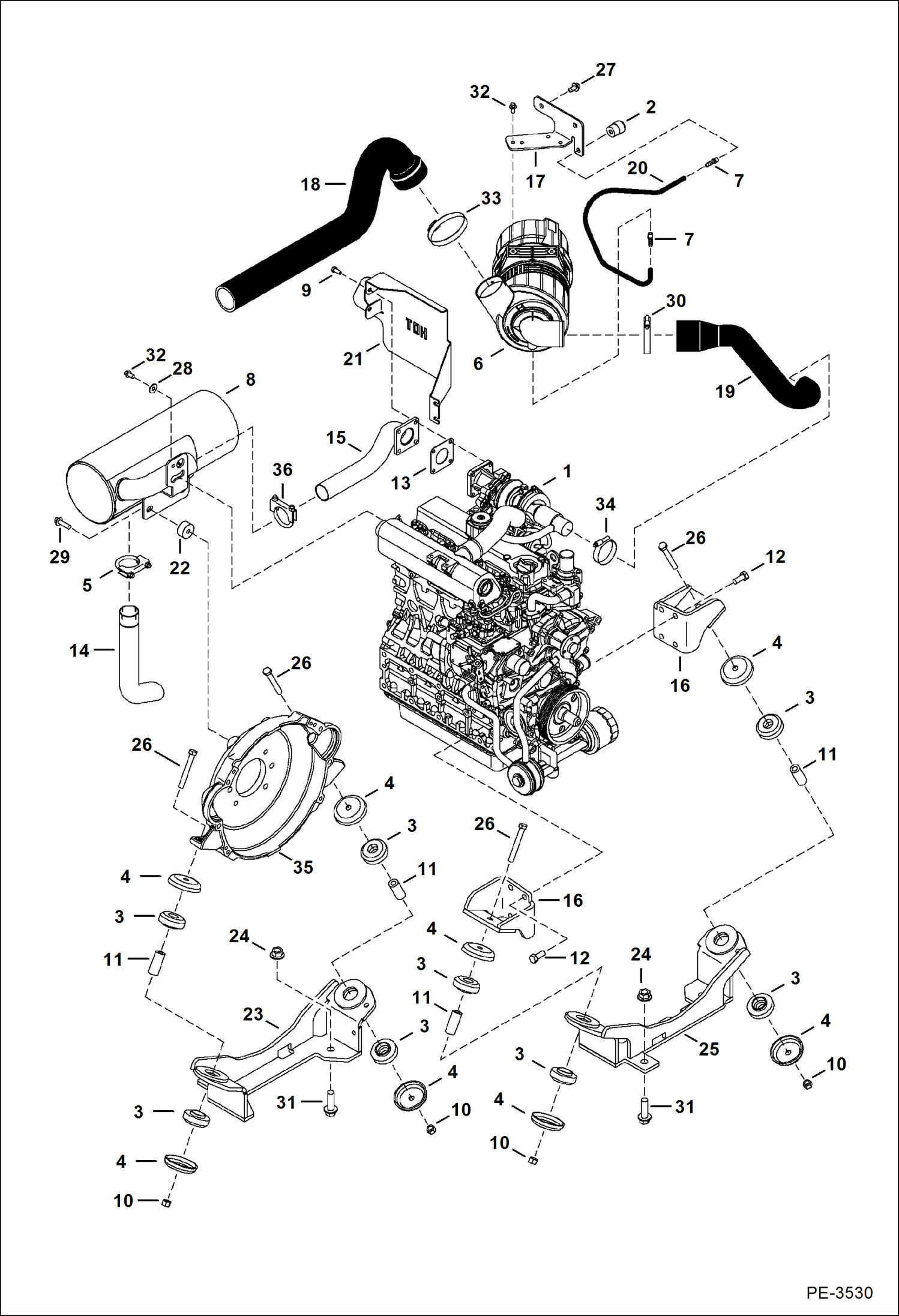

Запчасти Bobcat 435 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler, Engine Mounts) POWER UNIT

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA1526

2

6515007

GAUGE

3

6688994

MOUNT

4

7116851

CUP

5

6677363

CLAMP, FULL CIRCLE

6

6697901

FILTER, AIR

6

6666376

FILTER, AIR INNER inner

6

6666375

FILTER, AIR OUTER outer

7

6505813

CONNECTOR

8

MUFFLER NLA - W/ 2'' (50,8 mm) inlet ID - Order 7000320 muffler & 7003028 tube - Was 7003025 - A

8

7000320

MUFFLER, EXHAUST W/ 1.77'' (44,9 mm) inlet ID

9

6701123

SCREW

10

53DM12

NUT

11

7116850

SPACER

12

6719828

BOLT

13

6727753

GASKET

14

7000323

PIPE, TUBE EXHAUST Was 7140376 - A

15

6697945

TUBE 1.99'' (50,54 mm) OD

15

7003028

TUBE, EXHAUST 1.75'' (44,45 mm) OD

16

6814278

MOUNT

17

6814640

BRACKET

18

6815875

HOSE

19

7151987

HOSE

20

HOSE NLA - Order 24'' (585,6 mm) of 6557720 bulk hose - Was 6817554 - D

21

7127717

COVER EXHAUST

22

7101016

SPACER

23

7116844

MOUNT engine

24

51DM16

NUT

25

7116839

MOUNT W/A

26

7CM1290

SCREW

27

26GM10020

BOLT

28

17EM80

WASHER

29

29CM1035

SCREW

30

42HC300

CLAMP

31

29CM1650

BOLT

32

29CM816

SCREW

33

42H56

CLAMP

34

42HC250

CLAMP

35

7121429

HOUSING MACH

36

7101708

CLAMP
