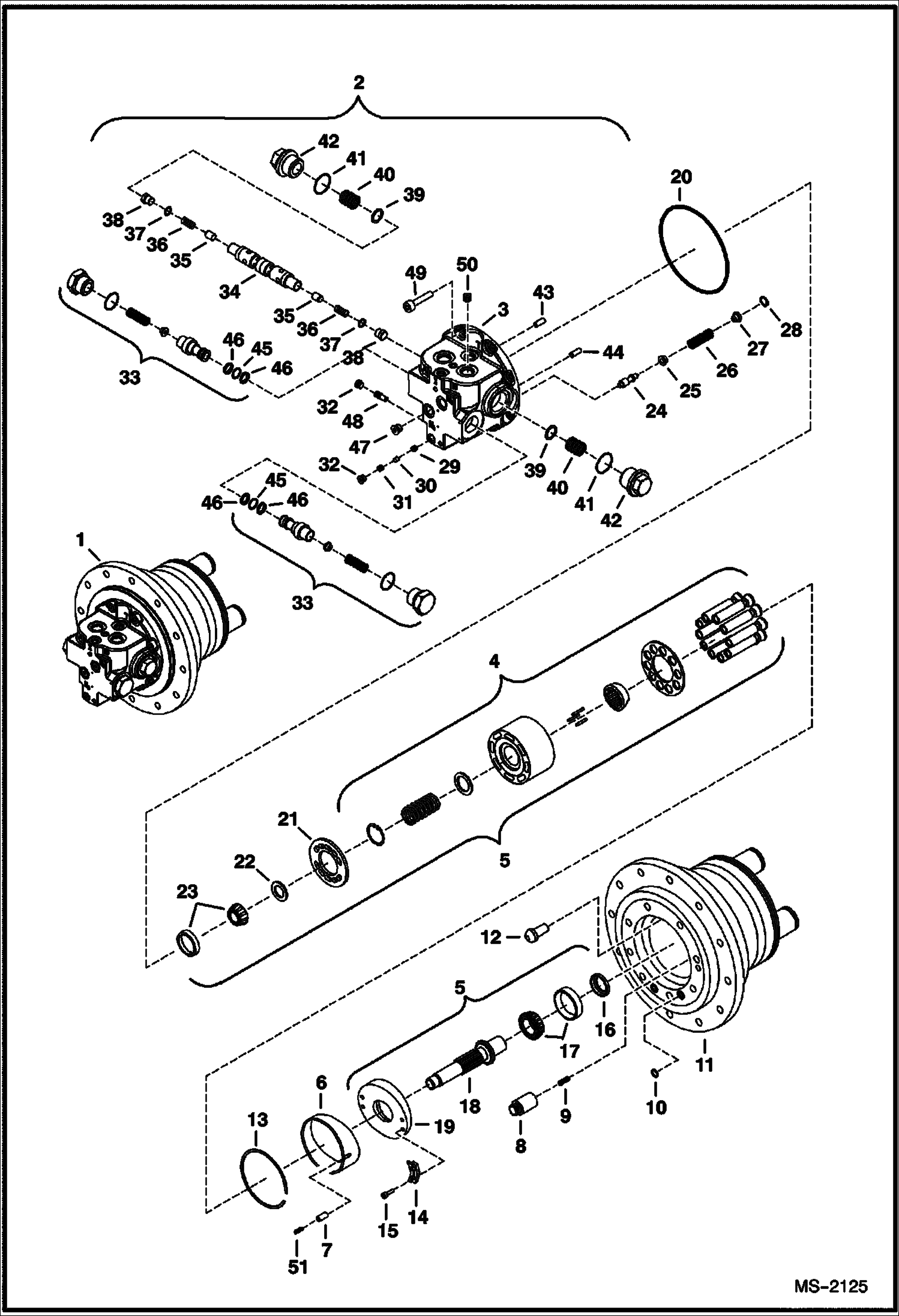

Запчасти Bobcat 435 TRAVEL MOTOR (Motor - Rexroth GFT7T2.5062) (S/N AA89 11012 & Below) HYDRAULIC SYSTEM

1

MOTOR NSS - Order 6685455 travel motor- Was 6687114 - A

2

6690064

PORT PLATE Ref. 3, 24-48 & 50

3

PORT PLATE NSS - Order Ref. 2

4

6691612

ROTARY GROUP

5

6690061

ROTARY GROUP

6

6686301

STOP cradle - Was 6686617 - D

7

6686607

SPRING

8

6686300

PISTON

9

6686307

SPRING pressure

10

6686936

GASKET

11

6686916

MOTOR

12

6686302

SWIVEL BALL

13

6686626

CIRCLIP

14

6691608

RETAINER

15

6691616

SCREW

16

6686313

RING

17

6686311

BEARING

18

6691607

SHAFT

19

6691617

PLATE swash

20

6686937

O-RING

21

6691611

PLATE valve

22

6686312

SHIM

23

6686310

BEARING

24

6691464

PISTON control

25

6691465

COLLAR

26

6691466

SPRING

27

6686318

COLLAR spring

28

6686323

RING

29

6691609

SCREW

30

6691610

PIN

31

6686321

SCREW

32

6686322

SCREW

33

6691615

VALVE relief

34

6691605

PISTON brake

35

6691602

VALVE poppet

36

6691604

SPRING pressure

37

6691614

O-RING

38

6691606

SCREW locking

39

6691603

COLLAR spring

40

6691600

SPRING pressure

41

6691613

O-RING

42

6691601

SCREW locking

43

6688010

PIN

44

6686934

PIN

45

O-RING NSS - Order Ref 33

46

BACKUP NSS - Order Ref. 33

47

6676024

PLUG Was 6691619 - D

48

6686314

VALVE

49

6686935

BOLT

50

6691618

ORIFICE

51

PIN NSS - Order Ref. 6
