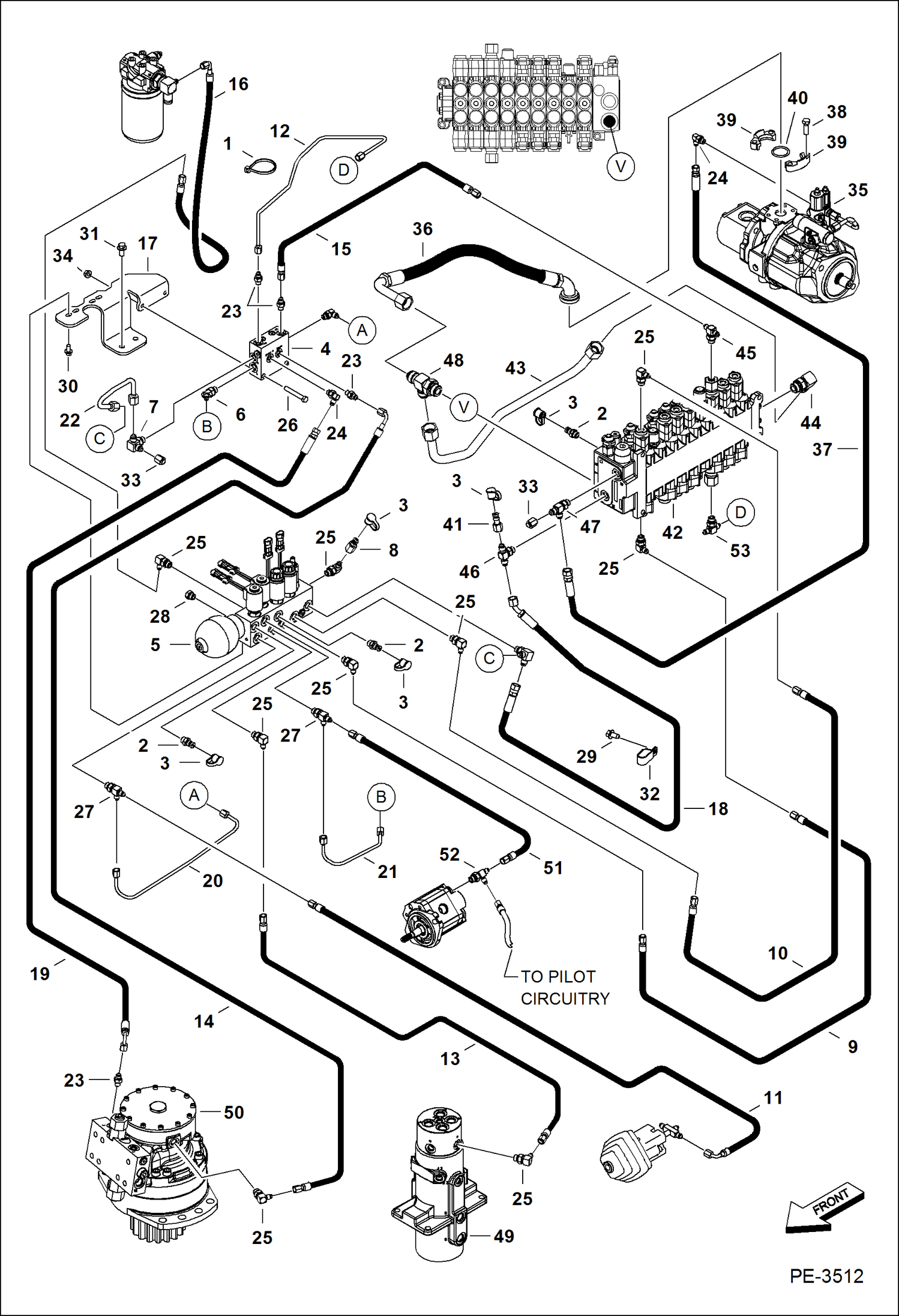

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER

2

79K6

O RING 10

3

6630367

CAP

4

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

5

6690054

MANIFOLD See Illustration MANIFOLD ASSY/ MS1465 W/O angle blade option

5

6692394

MANIFOLD See Illustration MANIFOLD ASSY/ MS1481 W/angle blade option

6

6707895

ELBOW

6

79K6

O RING 10

7

6725182

TEE

7

79K6

O RING 10

8

7000009

PLUG

9

7106597

HOSE

10

7106598

HOSE

11

7106599

HOSE

12

7106615

HOSE 22'' (559 mm) long

12

7106604

HOSE 27'' (686 mm) long

12

7164147

TUBELINE, HYD

13

7107648

HOSE

14

7107649

HOSE

15

7107658

HOSE

16

7106603

HOSE Was 7130707 - A

17

7141385

BRACKET, MANIFOLD

18

7141411

HOSE

19

7141648

HOSE

20

7144547

TUBELINE

21

7144548

TUBELINE

22

7144549

TUBELINE

23

15KB0404

FTG HYD S Connector

23

79K4

O RING 10

24

17KB0404

FTG HYD ELBOW 90

24

79K4

O RING 10

25

17KB0406

FITTING, HYD ELBOW

25

79K6

O RING 10

26

1CM860

BOLT

27

21KB0406

FTG HYD STRAIGHT TEE

27

79K6

O RING 10

28

24K5

PLUG

28

79K6

O RING 10

29

26GM10020

BOLT

30

29CM816

SCREW

31

29CM1020

BOLT

32

31H38

CLAMP

33

36K5

CAP

34

43DM8

NUT

35

7001430

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ B23896 - assy - W/gear pump - Was 6685694 - A

36

6815429

HOSE

37

7107865

HOSE

38

17C620

BOLT

39

19J16

FLANGE

40

58K219

O RING 10

41

6661753

PLUG

42

6685693

VALVE

43

7101014

TUBELINE

44

17KB1210

FITTING, HYD ELBOW

44

79K10

O RING 10

45

19KB0406

FITTING, HYD TEE

45

79K6

O RING 10

46

19KB0606

TEE

46

79K6

O RING 10

47

21KB0606

FTG HYD STRAIGHT TEE

47

79K6

O RING 10

48

21KB1212

FITTING, HYD TEE

48

79K12

O RING 10

48

79K12

O RING 10

49

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

50

6689391

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2588

51

7106615

HOSE 22'' (559 mm) long

51

7107657

HOSE 18'' (457 mm) long

52

21KB0406

FTG HYD STRAIGHT TEE Use W/Ref. 51 7106615 hose

52

7157717

TEE Use W/Ref. 51 7107657 hose

52

79K6

O RING 10

53

19KB0406

FITTING, HYD TEE Use W/Ref. 12 7106615 hose

53

7157717

TEE Use W/Ref. 12 7106604 hose

53

79K6

O RING 10
