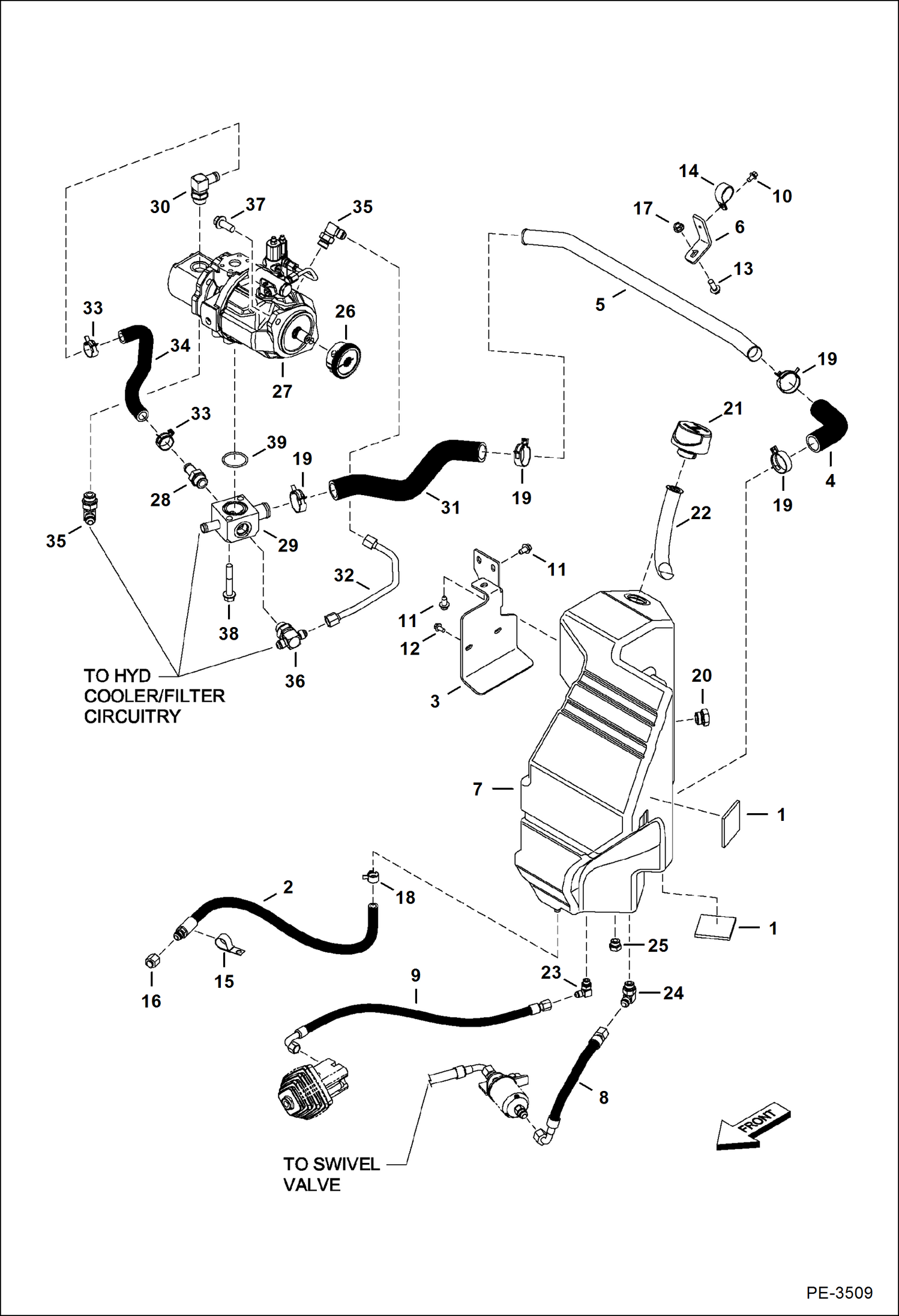

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

6812176

HOSE

3

6814175

BRACKET

4

7159240

HOSE, HYD FORMED Was 6814655 - A

5

7101019

TUBE

6

7102965

BRACKET

7

6814617

TANK

8

7125155

HOSE

9

7145072

HOSE

10

26GM8016

SCREW

11

26GM10020

BOLT

12

29CM816

SCREW

13

29CM1030

BOLT

14

30H75

CLAMP

15

30HJ616

CLIP

16

36K6

CAP

17

43DM10

NUT

18

5HM20

CLAMP

19

5HM42

HOSECLAMP

20

6665915

GAUGE

21

6692836

CAP, HYDRAULIC TANK W/ 79K20 O-ring

22

7134222

SCREEN

23

17KB0606

FITTING

23

79K6

O RING 10

24

17KB0808

FITTING, HYD ELBOW

24

79K8

O RING 10

25

24K6

FITTING

25

79K8

O RING 10

26

6676535

COUPLER

27

7001430

PUMP, HYD See Illustration HYDRAULIC PISTON PUMP/ B23896 - assy - W/gear pump - Was 6685694 - A

28

6812865

FITTING

28

79K12

O RING 10

29

6814414

MANIFOLD

30

6814419

FITTING

30

79K12

O RING 10

31

7159241

HOSE, HYD FORMED Was 7101024 - A

32

7101026

TUBELINE

33

5HM29

HOSECLAMP

34

7102953

HOSE

35

17KB0810

FITTING, HYD ELBOW

35

79K10

O RING 10

36

19KB0812

FITTING, HYD TEE

36

79K12

O RING 10

37

29CM1435

SCREW

38

31C848

BOLT

39

58K225

O RING 10
