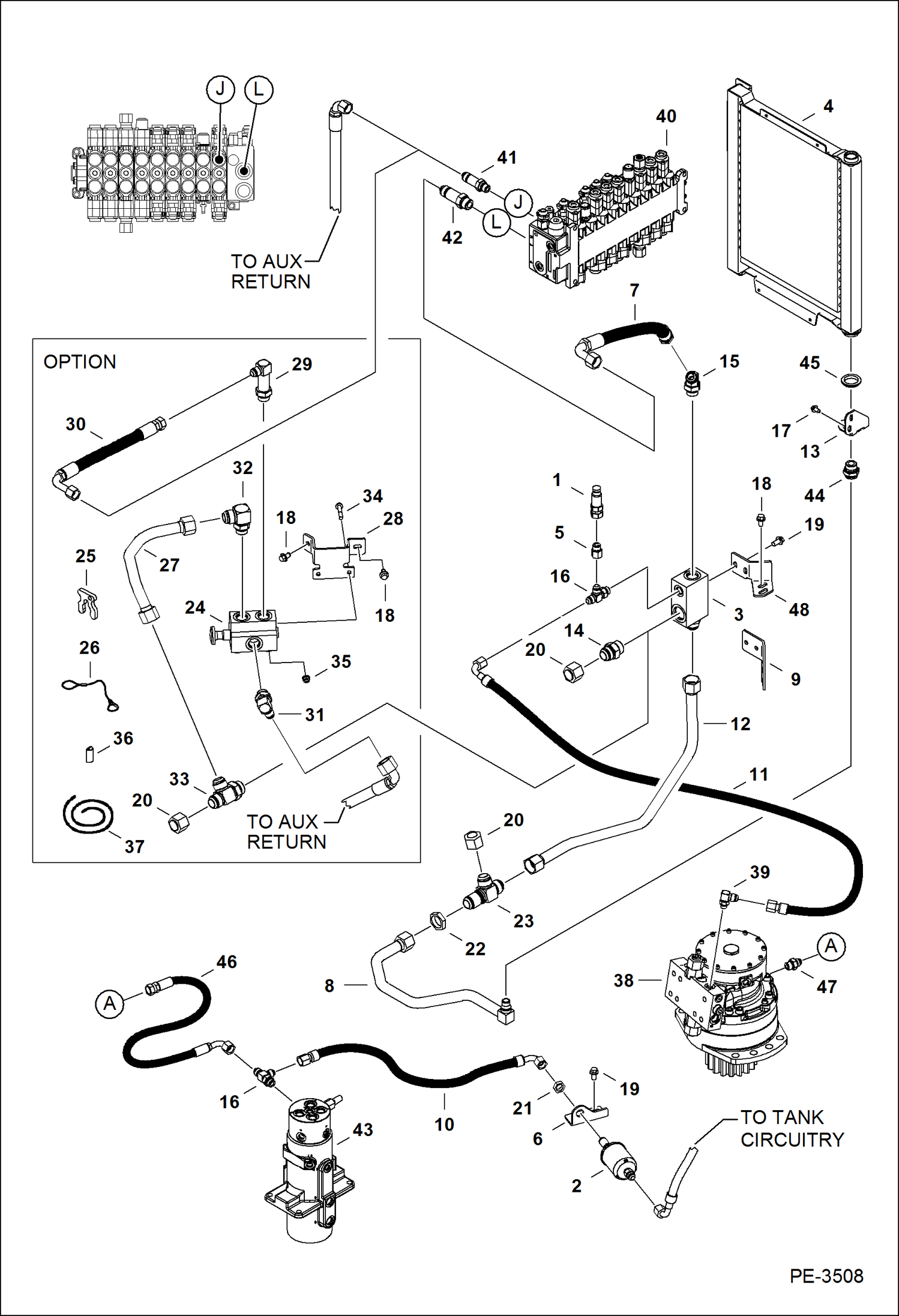

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Cooler & Direct to Tank Option) HYDRAULIC SYSTEM

1

6667806

COUPLER

2

6681012

FILTER, OIL HYD IN-LINE

3

6681586

VALVE pressure build-up

3

6681968

SPRING

3

6681969

POPPET

3

6676044

ADAPTER

4

6683316

EXCHANGER

5

6812828

ADAPTER

5

79K8

O RING 10

6

6814286

BRACKET

7

6815433

HOSE

8

6815879

TUBE

9

6815885

BRACKET

10

7125154

HOSE

11

7141621

HOSE

12

7141792

TUBELINE

13

7147737

BRACKET, OIL COOLER

14

15KB1616

FITTING, HYD CONNECTOR

14

79K16

O RING 10

15

18KB1212

FITTING, HYD ELBOW

15

79K12

O RING 10

16

21KB0808

FTG HYD STRAIGHT TEE

16

79K8

O RING 10

17

26GM8016

SCREW

18

26GM10020

BOLT

19

29CM1020

BOLT

20

36K10

CAP

21

86F6

NUT

22

86F10

NUT

23

91K10

FITTING

24

6660267

VALVE See Illustration SELECTOR VALVE/ B13660 - For Direct to Tank

25

6808717

CLIP

26

WIRE ROPE NLA - 14'' (355 mm) long - Order Ref. 36 & 37

27

6814176

TUBELINE

28

6814290

BRACKET

29

7107132

ELBOW

29

79K12

O RING 10

30

7107717

HOSE

31

17KB1012

FITTING, HYD ELBOW

31

79K12

O RING 10

32

17KB1612

FITTING, HYD ELBOW

32

79K12

O RING 10

33

21KB1616

FITTING, HYD TEE

33

79K16

O RING 10

34

29CM850

SCREW

35

43DM8

NUT

36

6558310

SLEEVE

37

6558309

WIRE ROPE bulk - sold per foot

38

6689391

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2588

39

17KB0806

FITTING, HYD ELBOW

39

79K6

O RING 10

40

6685693

VALVE

41

16KB1008

FITTING, HYD ELBOW

41

79K8

O RING 10

42

16KB1212

FITTING, HYD CONNECTOR

42

79K12

O RING 10

43

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

44

10L1212

ADAPTER

45

6681623

BUSHING

46

7106221

HOSE

47

15KB0808

FITTING, HYD CONNECTOR

47

79K8

O RING 10

48

7160487

BRACKET, BUILD UP VALVE
