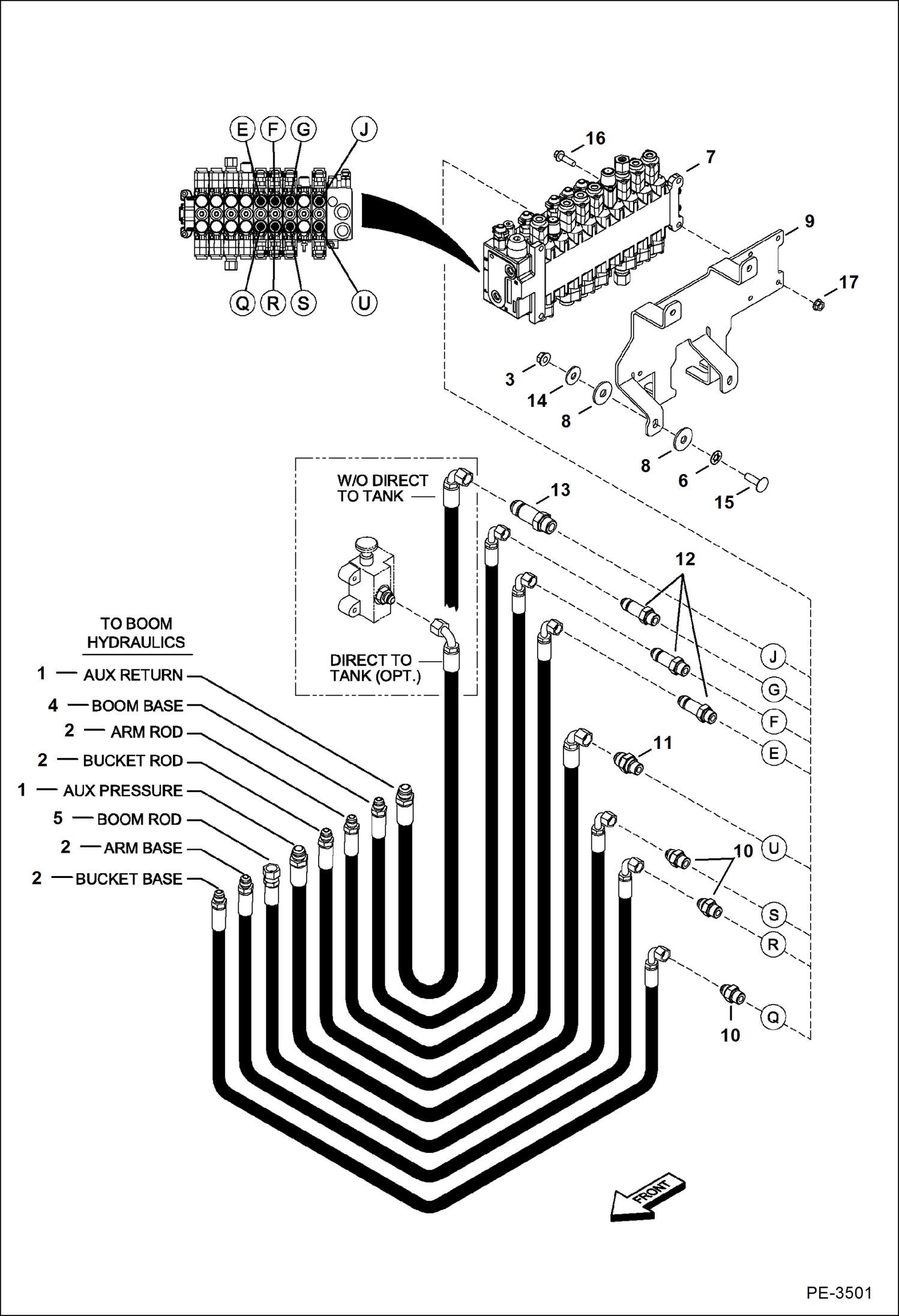

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

1

6807460

HOSE

1

HOSE See Illustration SECONDARY AUXILIARY/ NA2111 for secondary auxiliary option

2

6818101

HOSE

3

51DM10

NUT

4

7117825

HOSE

5

7117826

HOSE

6

6674264

RETAINER NUT

7

6685693

VALVE

8

6806720

INSULATOR

9

7132968

MOUNT, VALVE CONTROL

10

15KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

15KB1008

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

16KB0808

FITTING, HYD CONNECTOR

12

79K8

O RING 10

13

16KB1008

FITTING, HYD ELBOW

13

79K8

O RING 10

14

17EM100

WASHER

15

21CM1035

BOLT

16

29CM830

CAPSCREW

17

43DM8

NUT
