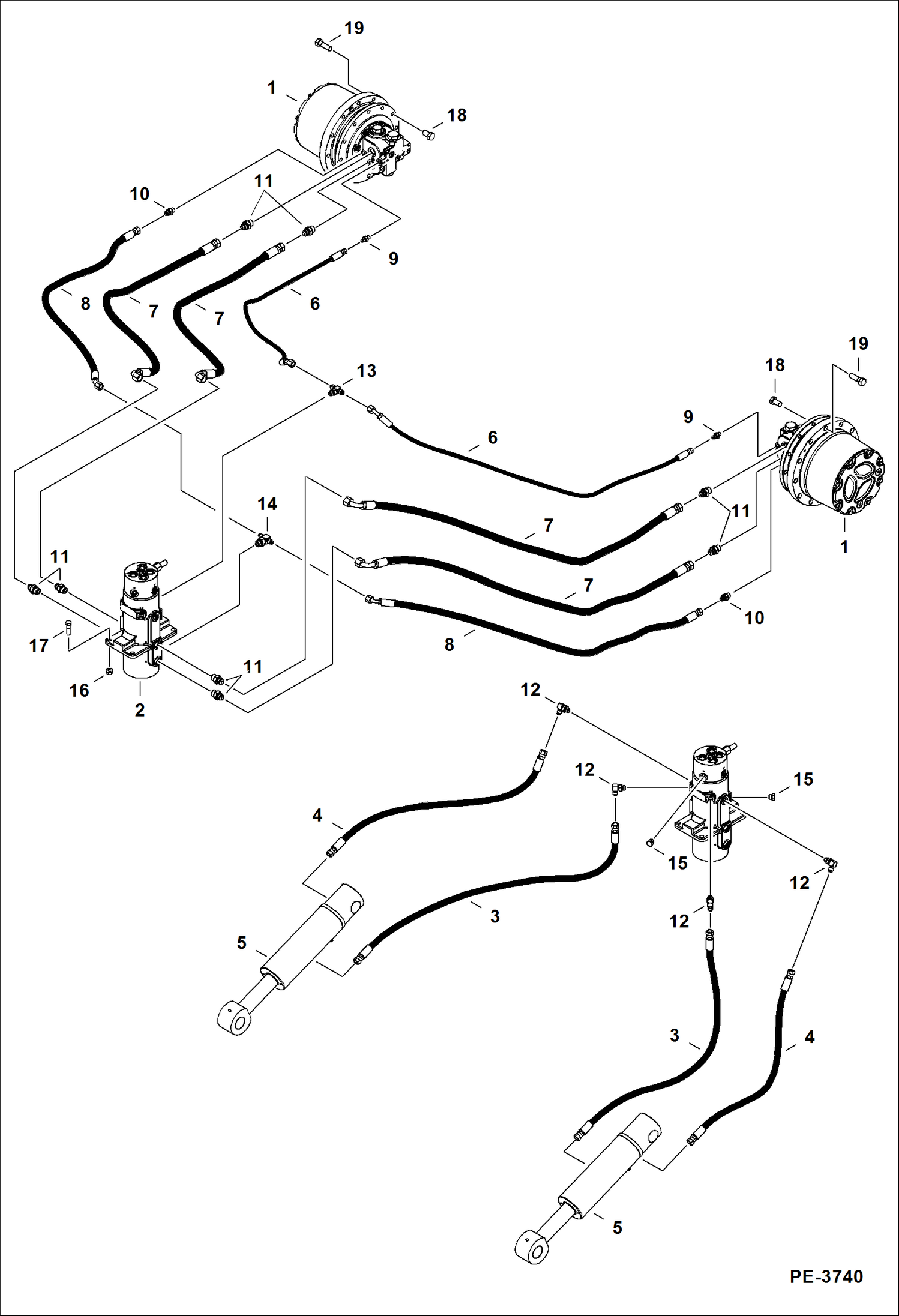

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Lower)(W/O Angle Blade Option) (S/N AA8911001 - 11012) HYDRAULIC SYSTEM

1

6685455

MOTOR See Illustration TRAVEL MOTOR/ MS1998

2

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

3

6814831

HOSE

4

6814832

HOSE

5

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

6

7101091

HOSE

7

7107672

HOSE

8

7125150

HOSE

9

15KB0404

FTG HYD S Connector

9

79K4

O RING 10

10

15KB0606

FITTING, HYD CONNECTOR

10

79K6

O RING 10

11

15KB0808

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

17KB0606

FITTING

12

79K6

O RING 10

13

19KB0406

FITTING, HYD TEE

13

79K6

O RING 10

14

19KB0608

UNION

14

79K8

O RING 10

15

24K5

PLUG

15

79K6

O RING 10

16

43DM10

NUT

17

53CM1040

SCREW

18

55CM1425

SCREW

19

55CM1445

SCREW
