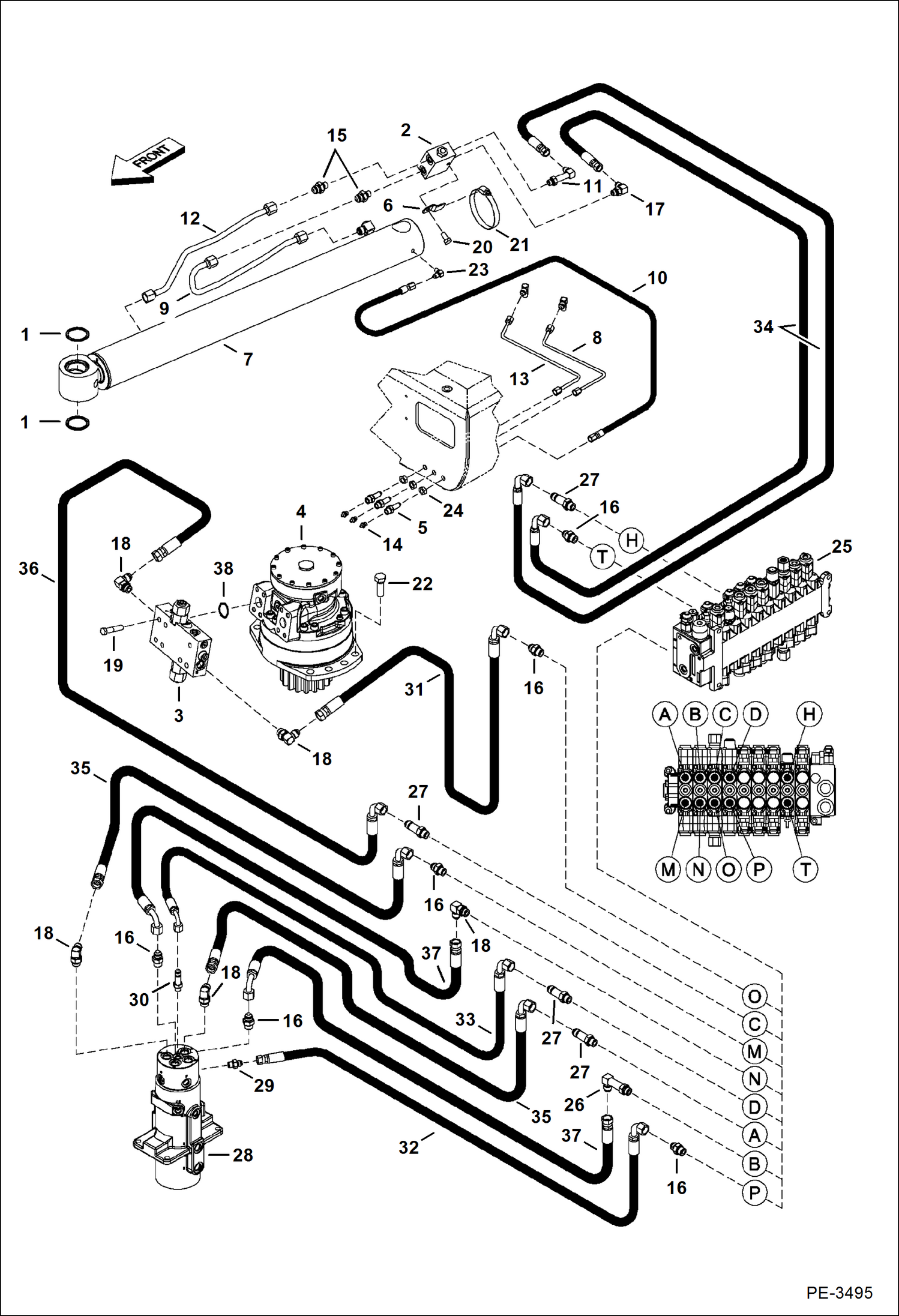

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Upper/Swing) HYDRAULIC SYSTEM

1

6669287

SEAL

2

6676167

VALVE See Illustration LOCK VALVE/ C3475 lock

3

6678788

VALVE See Illustration RELIEF/BRAKE VALVE/ B16419 - assy

4

6689391

MOTOR, HYD SLEW See Illustration SWING MOTOR/ MS2588

5

6807184

FITTING

6

6807345

MOUNT

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3616

8

6813917

TUBE

9

6816328

TUBE

10

7107658

HOSE

11

7107682

ELBOW

11

79K6

O RING 10

12

7109685

TUBELINE See Illustration SWING CYLINDER/ PE3616 - Use on NLA cylinder 7156130

12

7164139

TUBELINE, HYD See Illustration SWING CYLINDER/ NA6519 - Use W/cylinder 7161469

13

7126402

TUBELINE

14

10H25

FITTING, GREASE 5 grease

15

15KB0806

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

15KB0808

FITTING, HYD CONNECTOR

16

79K8

O RING 10

17

17KB0606

FITTING

17

79K6

O RING 10

18

17KB0808

FITTING, HYD ELBOW

18

79K8

O RING 10

19

17C732

BOLT

20

1CM1020

BOLT

21

42H56

CLAMP

22

7CM1645

SCREW

23

83F3

ELBOW 5

24

86F3

LOCKNUT

25

6685693

VALVE

26

7102234

FITTING

26

79K8

O RING 10

27

16KB0808

FITTING, HYD CONNECTOR

27

79K8

O RING 10

28

6811778

SWIVEL See Illustration SWIVEL ASSY/ PE1906 - assy

29

15KB0606

FITTING, HYD CONNECTOR

29

79K6

O RING 10

30

16KB0606

FTG HYD L CONNECTOR

30

79K6

O RING 10

31

6813903

HOSE

32

6815033

HOSE

33

6815582

HOSE

34

6817060

HOSE

35

6818105

HOSE

36

7101790

HOSE

37

7103037

HOSE

38

6674900

O-RING
