Запчасти Bobcat 435 RH COVER (S/N AA8911055 & Below, AACB11121 & Below) MAIN FRAME

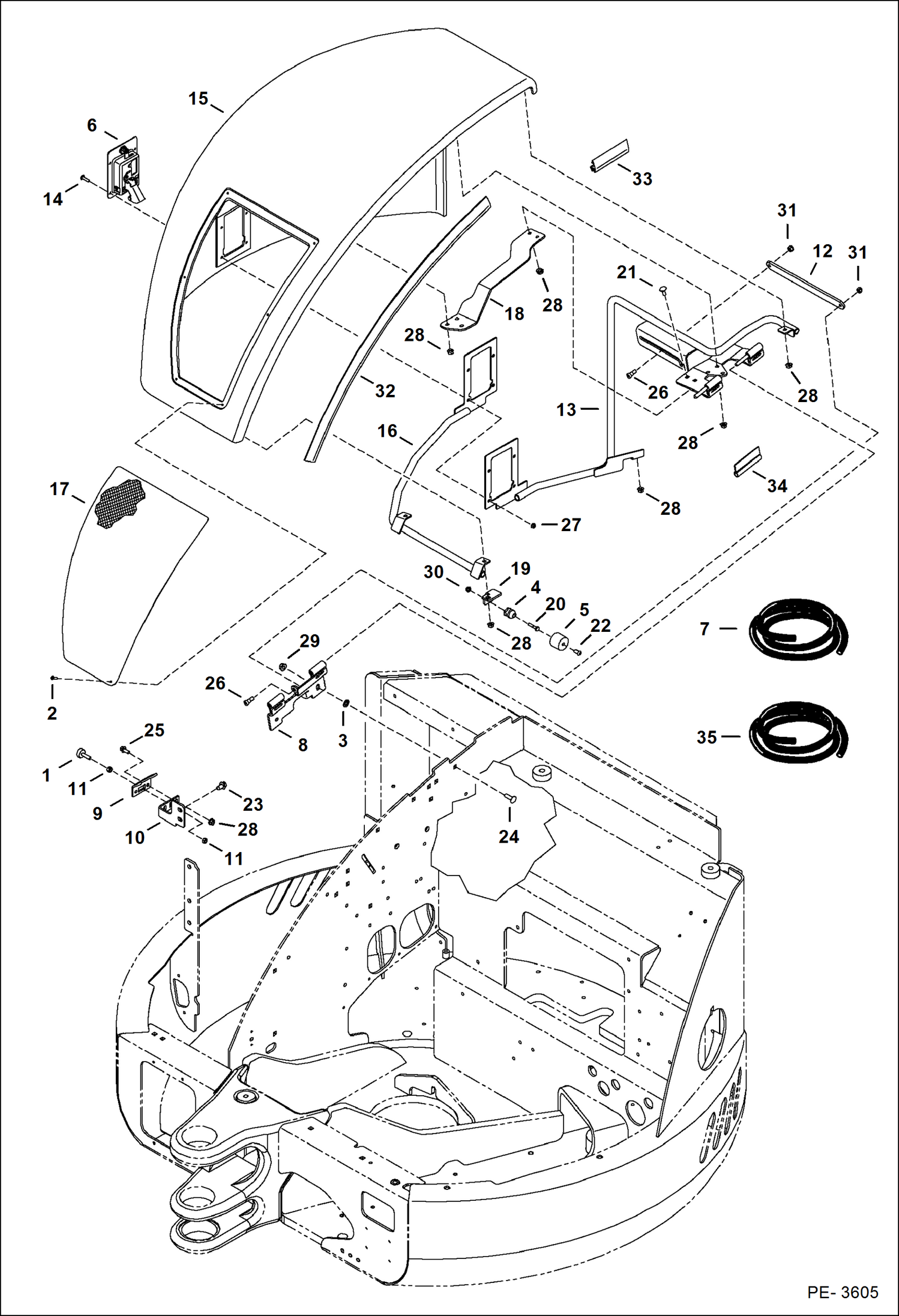

Схема запчастей Bobcat 435 - RH COVER (S/N AA8911055 & Below, AACB11121 & Below) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6655399

BUMPER

2

6669224

BOLT

3

6674264

RETAINER NUT

4

6675385

PLUG

5

6675386

SOCKET

6

6684408

LATCH

6

6693241

KEY 10 ignition - single key W/O ring

7

6675546

SEAL- BULK/FT (25) bulk - sold per foot

8

HINGE See Illustration RH COVER/ PE3809 - NLA - Order 7175607 hinge, 7174414 bracket, 7159883 hinge, 7174416 hinge, 7174412 bracket, (2) 21CM820 bolts, & (2) 51DM8 nuts - Was 7105711 - A

9

6813216

BRACKET

10

BRACKET See Illustration RH COVER/ PE3809 - NLA - Order 7175607 hinge, 7174414 bracket, 7159883 hinge, 7174416 hinge, 7174412 bracket, (2) 21CM820 bolts, & (2) 51DM8 nuts - Was 6815412 - A

11

61D5

NUT

12

6816051

BAR

13

COVER See Illustration RH COVER/ PE3809 - NLA - Order 7175607 hinge, 7174414 bracket, 7159883 hinge, 7174416 hinge, 7174412 bracket, (2) 21CM820 bolts, & (2) 51DM8 nuts - Was 6816052 - A

14

6816193

SCREW

15

6816300

COVER, RH SIDE

16

6816465

BRACKET

17

6816568

SCREEN

18

BRACKET See Illustration RH COVER/ PE3809 - NLA - Order 7175607 hinge, 7174414 bracket, 7159883 hinge, 7174416 hinge, 7174412 bracket, (2) 21CM820 bolts, & (2) 51DM8 nuts - Was 7159995 - A

19

7174413

STOP, COVER HINGED Was 6817750 - A

20

17C420

BOLT Was 1C420 - D

21

21CM820

BOLT carriage

22

25G510

BOLT

23

26GM10020

BOLT

24

28CM1030

BOLT carriage

25

29CM820

SCREW

26

38C606

BOLT

27

43DM6

NUT

28

43DM8

NUT

29

43DM10

NUT

30

55D4

NUT

31

59D5

NUT 5

32

SEAL, RH COVER NLA - 35.5'' (902 mm) long - Order Ref. 7

33

SEAL, RH COVER NLA - 5.25'' (133,4 mm) long - Order Ref. 7

34

SEAL, RH COVER NLA - 2.4'' (61 mm) long - Order Ref.35

35

6676396

SEAL bulk - sold per foot

Выбрано товаров: 36
