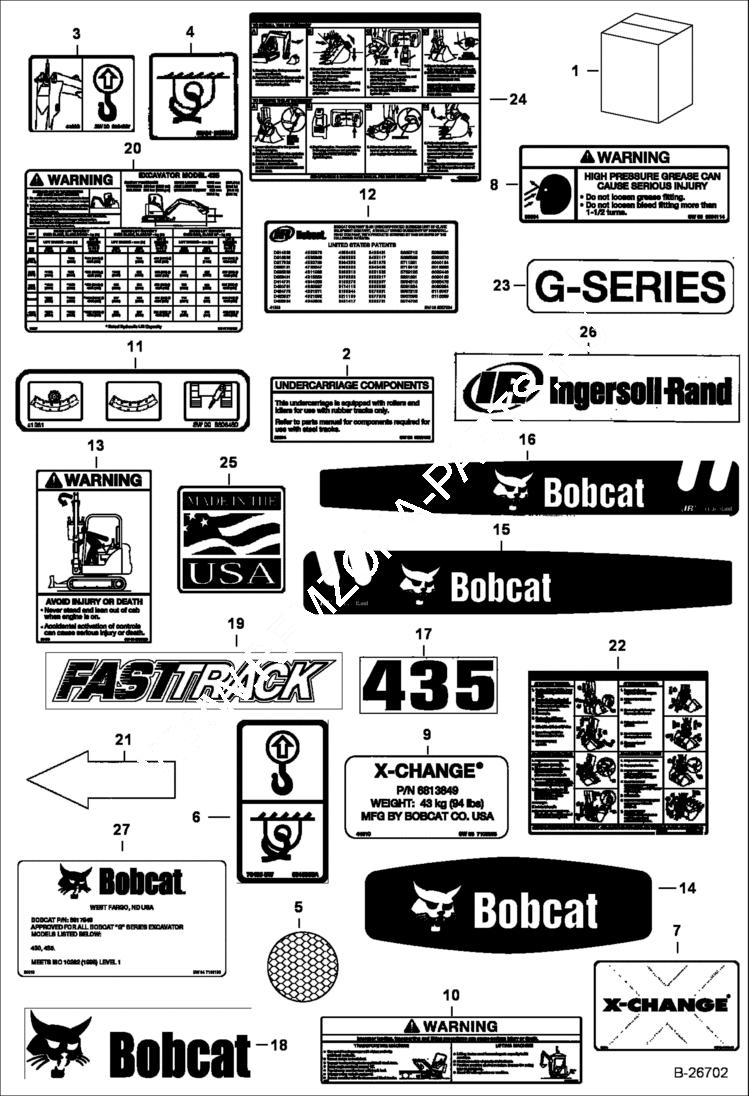

Запчасти Bobcat 435 DECALS (Outside) ACCESSORIES & OPTIONS

1

6986670

KIT DECAL See Illustration DECALS/ B25027 includes Ref. 2-27 - Also includes Ref. 2-25 on this page

1

7126836AR

KIT TRANS DECAL

1

7126836BR

KIT TRANS DECAL

1

7126836JP

KIT TRANS DECAL

1

7126835AR

KIT TRANSLATION

1

7126835BR

KIT TRANSLATION

2

6589129

DECAL track-rubber

3

6594897

DECAL boom lift

4

6595014

DECAL tie down

5

7106627

DECAL, REFLECTIVE reflective

6

6815993

DECAL, LIFT tie down

7

6803760

DECAL X-Change

8

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

9

7100058

DECAL pin-on X-Change

9

7116756

DECAL hydraulic X-Change

10

6808185

DECAL warning

11

6808480

DECAL remote grease

12

DECAL NLA - patent - Was 6557224 - C

13

6809829

DECAL warning

14

6812258

DECAL rear logo

15

6813506

DECAL RH logo

16

6813507

DECAL LH logo

17

6815541

DECAL model 435

18

6815489

DECAL logo - 402 mm (15.81'') long

18

6727324

DECAL, LOGO BOBCAT AND HEAD 210 mm (8.25'') long

19

6815981

DECAL fast track

20

7107501

DECAL lift capacity

20

7107502

DECAL lift capacity - long arm

21

6533899

DECAL arrow

22

7102651

DECAL using pin-on X-Change

23

6817056

DECAL G series

24

7134587

DECAL, X-CHANGE using hydraulic X-Change

25

DECAL NLA - Was 7136123 - A

26

DECAL NLA - IR Logo - not in kit - Was 6735864 - A

27

7103193

DECAL top guard - not in kit

27

7103194

DECAL spcl apps canopy - not in kit

27

7103195

DECAL spcl apps cab - not in kit
