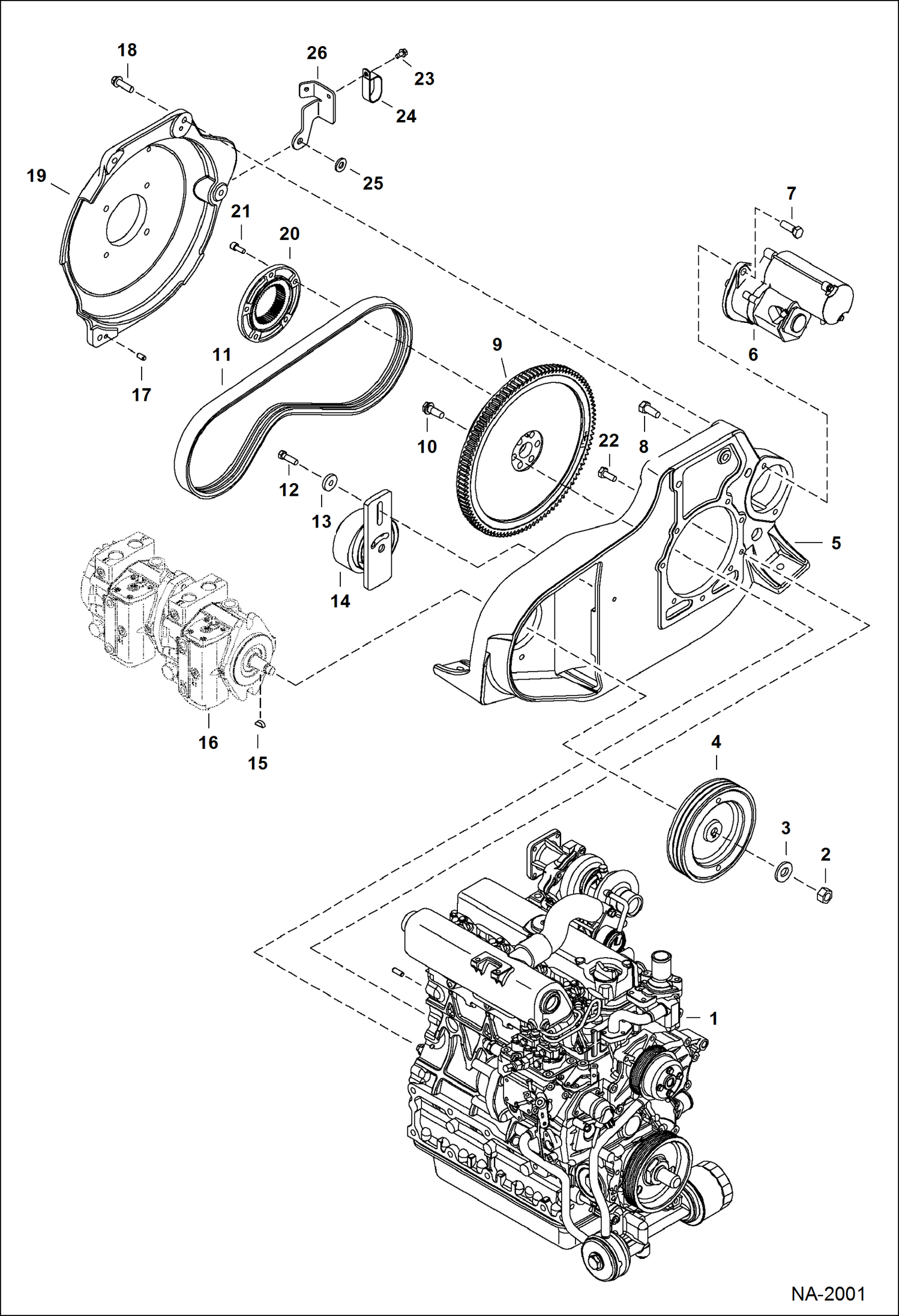

Запчасти Bobcat 435 ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

ENGINE V2003TMDI See Illustration ENGINE & GASKET KITS/ NA1524 See BTI388ldr - Was 6685050 - A

2

96D10

NUT

3

27E10

WASHER

4

6811701

PULLEY 7.44'' (189 mm) dia - original design

4

7125003

PULLEY 6.3'' (160 mm) dia

5

MOUNT NLA - Order 7127604 mount - Also Order Ref. 27 - Was 7101661 - A

5

7127604

MOUNT, ENGINE

6

6681858

STARTER

7

1CM1235

BOLT

8

6719828

BOLT

9

7158130

FLYWHEEL, ENG ASSY See BTI388ldr - Was 6811244 - A

9

6510470

RING GEAR

10

6598275

BOLT Was 6652487 - A

11

6672021

BELT, DRIVE Use W/Ref. 4 6811701 pulley - original design - Was 6811245 - A

11

7125004

BELT Use W/Ref. 4 7125003 pulley

12

17C620

BOLT

13

6704484

WASHER

14

7101660

IDLER See Illustration IDLER/ PE2285 assy

15

5J806

KEY

16

6689757

PUMP, HYD TANDEM See Illustration HYDROSTATIC CIRCUITRY/ PE2579 - Was 6679754 - D

17

7101341

PIN

18

29CM1035

SCREW

19

6811732

HOUSING

20

6670757

COUPLER

21

3GM820

SCREW

22

6719825

BOLT

23

26GM8016

SCREW

24

31H42

CLIP

25

15EM100

WASHER

26

7102968

BRACKET

27

20JM1025

DOWEL PIN Use W/ 7127604 mount
