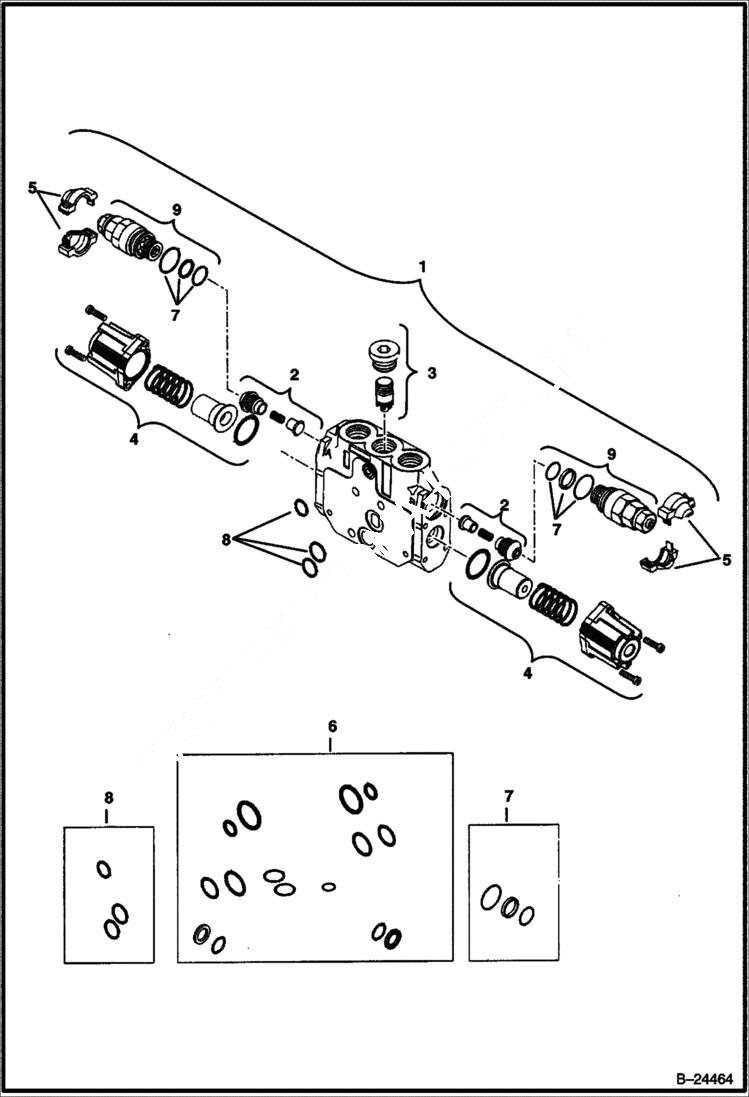

Запчасти Bobcat 435 CONTROL VALVE (Bucket Section) HYDRAULIC/HYDROSTATIC SYSTEM

1

6686638

VALVE assy - bucket

2

6677689

CHECK VALVE check valve - Was 6686595 - A

3

6677690

KIT, COMPENSATOR pressure - Was 6686896 - A

3

6685248

PLUG

4

6677699

ACTUATOR assy - Was 6685254 - A

5

6678023

COVER half

6

6677470

SEAL KIT assy - Was 6685264 - A

7

6677468

SEAL KIT Was 6685256 - A

8

6677467

KIT, SEAL Was 6685259 - A

9

6685249

VALVE,RELIEF assy - Was 6686897 - A
