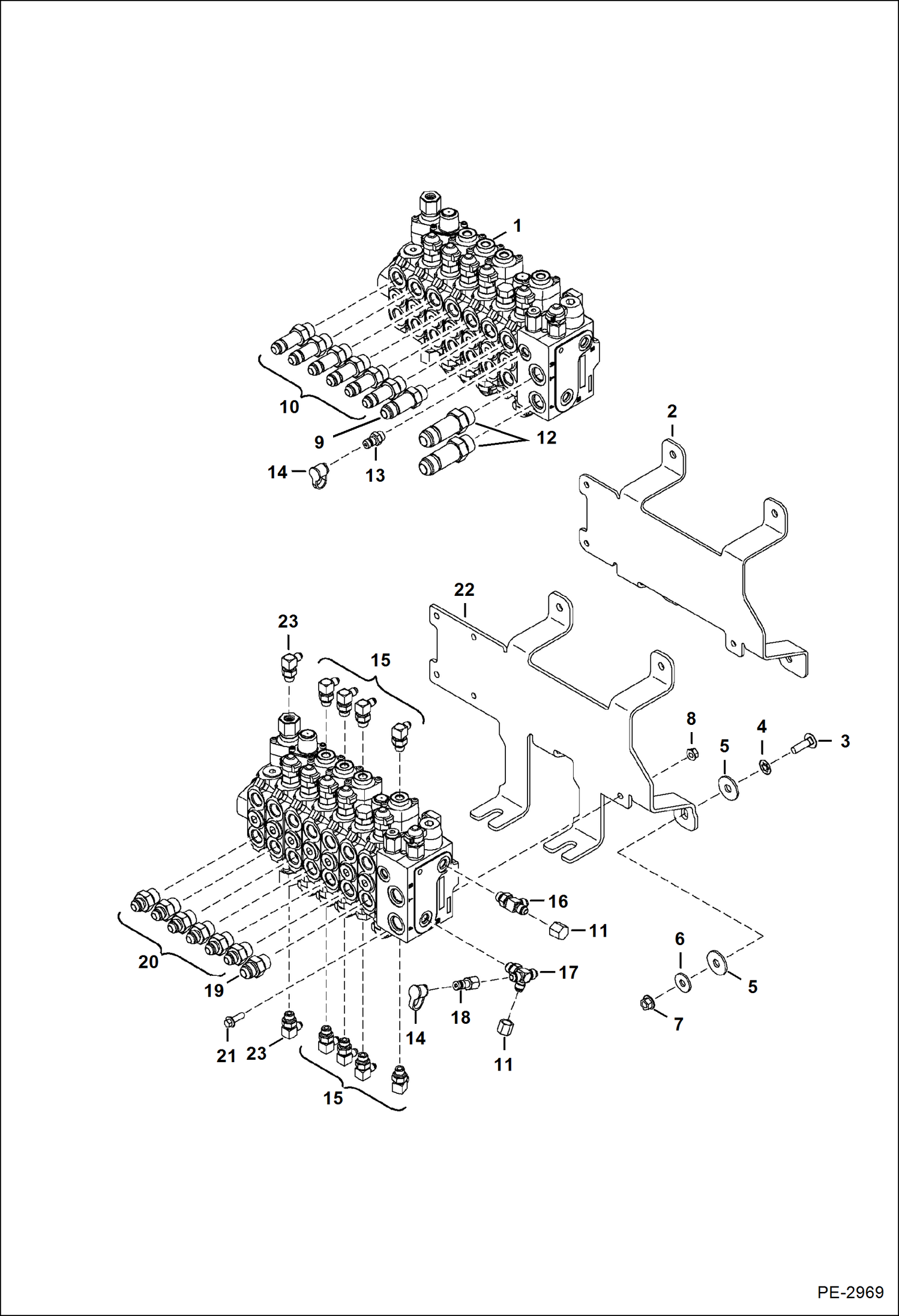

Запчасти Bobcat 435 CONTROL VALVE HYDRAULIC/HYDROSTATIC SYSTEM

1

6686596

VALVE assy

2

6811362

MOUNT

3

21CM1035

BOLT

4

6674264

RETAINER NUT

5

6806720

INSULATOR

6

17EM100

WASHER

7

51DM10

NUT

8

43DM8

NUT

9

16KB1008

FITTING, HYD ELBOW

9

79K8

O RING 10

10

16KB0808

FITTING, HYD CONNECTOR

10

79K8

O RING 10

11

36K5

CAP

12

16KB1212

FITTING, HYD CONNECTOR

12

79K12

O RING 10

13

6630168

COUPLER diagnostic

13

79K6

O RING 10

14

6630367

CAP dust

15

17KB0406

FITTING, HYD ELBOW

15

79K6

O RING 10

16

21KB0606

FTG HYD STRAIGHT TEE W/Hydraulic X-Change

16

17KB0606

FITTING 1 port

16

79K6

O RING 10

17

7102019

CROSS W/Hydraulic X-Change

17

19KB0606

TEE 2 port

17

79K6

O RING 10

18

6661753

PLUG diagnostic

19

15KB1008

FITTING, HYD CONNECTOR

19

79K8

O RING 10

20

15KB0808

FITTING, HYD CONNECTOR

20

79K8

O RING 10

21

29CM825

BOLT

21

29CM830

CAPSCREW

22

7132968

MOUNT, VALVE CONTROL

23

17KB0406

FITTING, HYD ELBOW

23

19KB0406

FITTING, HYD TEE

23

79K6

O RING 10
