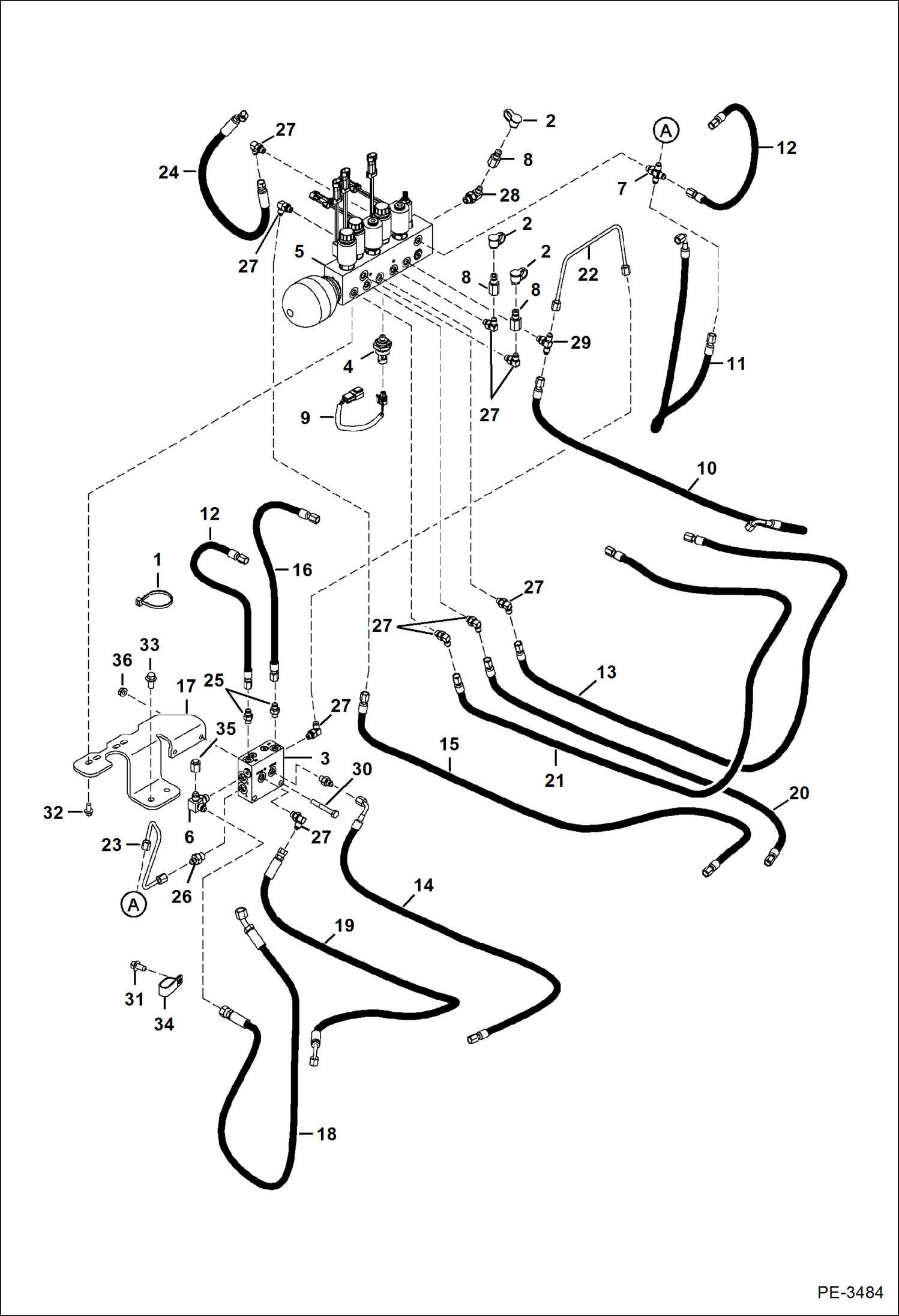

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Manifold) (S/N 5632 14000-14007, 15000 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

6630367

CAP

3

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

4

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

5

6685165

MANIFOLD See Illustration MANIFOLD/ MS1935

6

6725182

TEE

6

79K6

O RING 10

7

6812830

CROSS

7

79K4

O RING 10

8

7000009

PLUG

9

7105174

HARNESS

10

7106599

HOSE

11

7106608

HOSE

12

7106615

HOSE

13

7107648

HOSE

14

7107649

HOSE

15

7107650

HOSE

16

7107658

HOSE

17

7141385

BRACKET, MANIFOLD

18

7141411

HOSE

19

7141648

HOSE

20

7141872

HOSE

21

7141873

HOSE

22

7144545

TUBELINE

23

7144546

TUBELINE

24

7147827

HOSE, HYD

25

15KB0404

FTG HYD S Connector

25

79K4

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10

27

17KB0404

FTG HYD ELBOW 90

27

79K4

O RING 10

28

17KB0406

FITTING, HYD ELBOW

28

79K6

O RING 10

29

19KB0404

FITTING, HYD TEE

29

79K4

O RING 10

30

1CM860

BOLT

31

26GM10020

BOLT

32

29CM816

SCREW

33

29CM1020

BOLT

34

31H38

CLAMP

35

36K5

CAP

36

43DM8

NUT
