Запчасти Bobcat 435 HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot ISO/STD) (S/N 5632 14000-14007, 15000 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

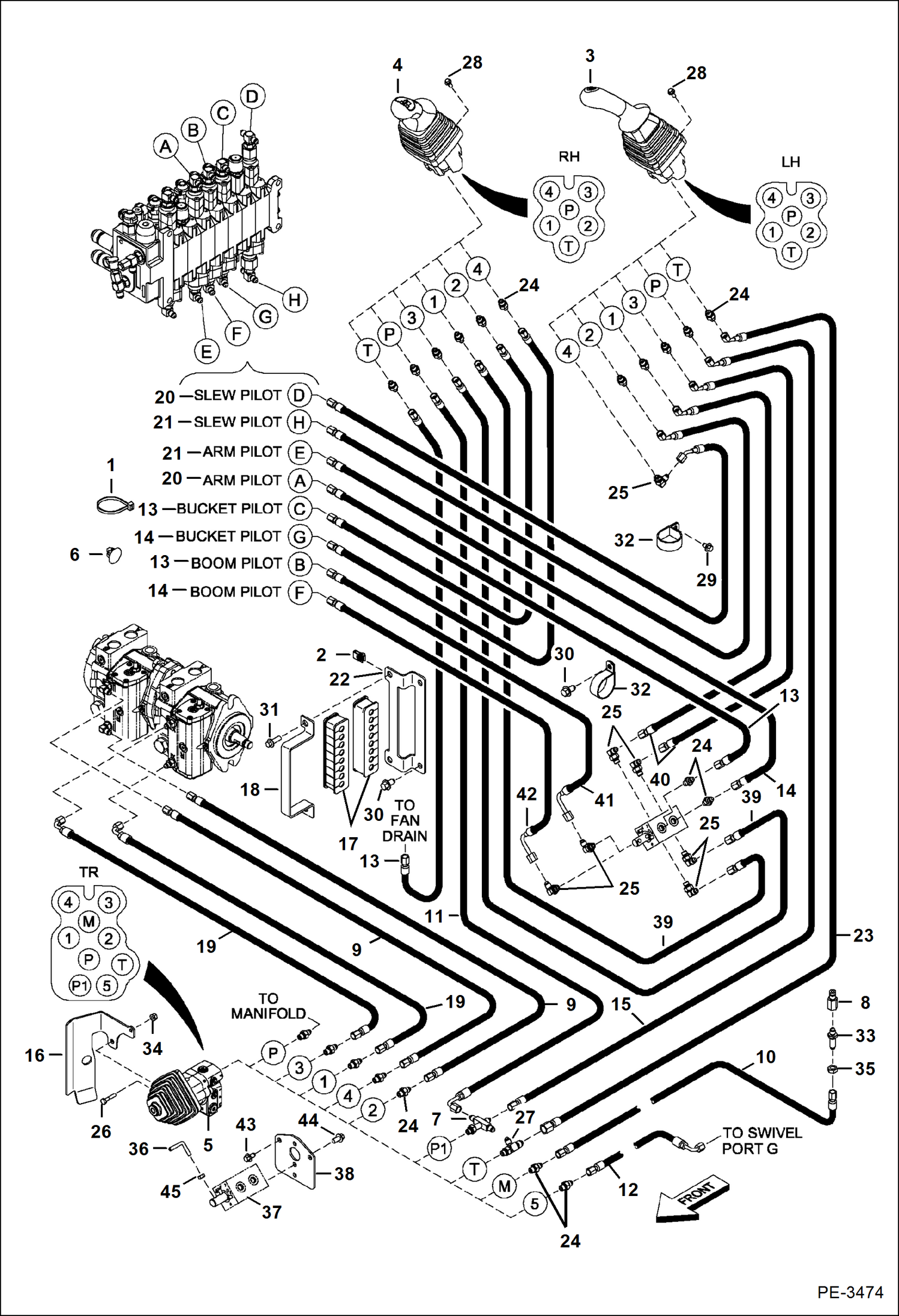

Схема запчастей Bobcat 435 - HYDRAULIC/HYDROSTATIC CIRCUITRY (Pilot ISO/STD) (S/N 5632 14000-14007, 15000 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6676169

NUT

3

6677894

JOYSTICK

4

6677895

JOYSTICK

5

6688970

VALVE

6

6691172

PLUG

7

6812829

CROSS

7

79K4

O RING 10

8

7000009

PLUG

9

7106595

HOSE

10

7106597

HOSE

11

7106599

HOSE

12

7106608

HOSE 1 straight & 1 90 degree end

12

7106590

HOSE 2 straight ends

13

7106611

HOSE

14

7106615

HOSE

15

7107672

HOSE

16

7126056

GUIDE

17

7133310

GUIDE, HOSE

18

7134800

BRACKET

19

7140546

HOSE

20

7142536

HOSE

21

7142538

HOSE

22

7144687

BRACKET

23

7145071

HOSE

24

15KB0404

FTG HYD S Connector

24

79K4

O RING 10

25

17KB0404

FTG HYD ELBOW 90

25

79K4

O RING 10

26

17C420

BOLT

27

21KB604

FITTING

27

79K4

O RING 10

28

26GM6020

SCREW

29

26GM8013

BOLT

30

26GM10020

BOLT

31

29CM825

BOLT

32

30H85

CLAMP

33

45K3

FITTING

33

97K4

O'RING flared end

34

83D4

NUT 10

35

86F3

LOCKNUT

36

6804251

HANDLE

37

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

38

6814607

PLATE

39

7107657

HOSE

40

7107665

HOSE

41

7141412

HOSE

42

7141413

HOSE

43

26GM8016

SCREW

44

29CM816

SCREW

45

53DM6

NUT Was 1DM6 - A

Выбрано товаров: 51
