Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Hydraulic Pump) HYDRAULIC/HYDROSTATIC SYSTEM

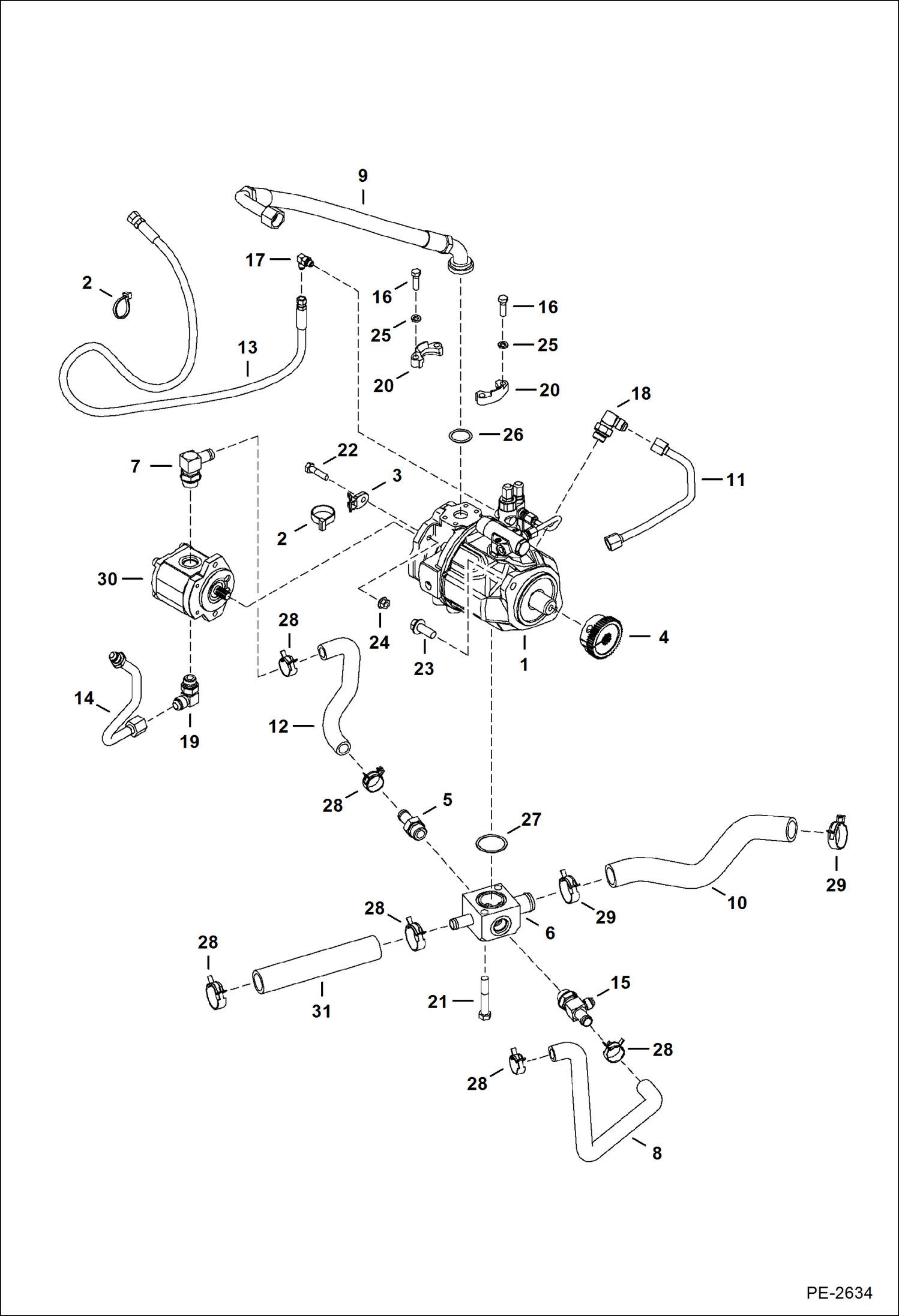

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Hydraulic Pump) HYDRAULIC/HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7001430

PUMP, HYD - assy - W/gear pump - Was 6685694 - A

2

6678669

STRAP

3

6679034

MOUNT

4

6676535

COUPLER

5

6812865

FITTING

5

79K12

O RING 10

6

6814414

MANIFOLD

7

6814419

FITTING

7

79K12

O RING 10

8

6814810

HOSE

9

6815429

HOSE

10

7159241

HOSE, HYD FORMED Was 7101024 - A

11

7101026

TUBELINE

12

7102953

HOSE

13

7107865

HOSE

14

7108636

TUBELINE

15

7109893

TEE

15

79K12

O RING 10

16

17C620

BOLT

17

17KB0404

FTG HYD ELBOW 90

17

79K4

O RING 10

18

17KB0810

FITTING, HYD ELBOW

18

79K10

O RING 10

19

17KB1010

FITTING, HYD ELBOW

19

7108783

TEE

19

79K10

O RING 10

20

19J16

FLANGE

21

17C848

BOLT

22

1CM1040

BOLT

23

29CM1435

SCREW

24

43DM10

NUT

25

WASHER no longer needed - Was 4E6

26

58K219

O RING 10

27

58K225

O RING 10

28

5HM29

HOSECLAMP

29

5HM42

HOSECLAMP

30

6688093

PUMP

31

6814942

HOSE See Illustration HYDRAULIC CIRCUITRY/ PE2573

Выбрано товаров: 38
