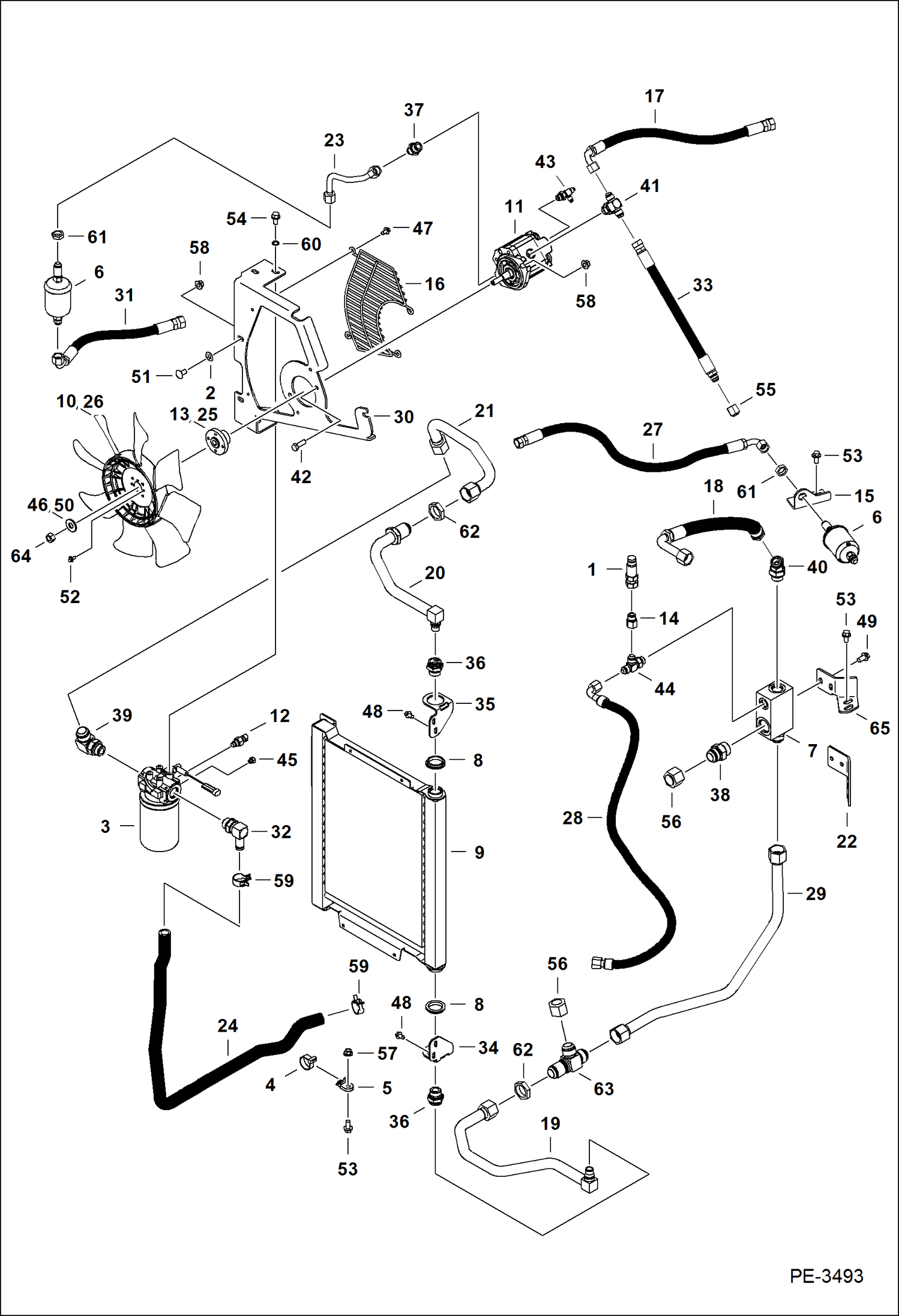

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Cooler/Filter) (S/N 5632 14000-14007, 15000 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

1

6667806

COUPLER

2

6674264

RETAINER NUT

3

FILTER See Illustration HYDROSTATIC OIL FILTER/ NA1844 - NLA - assy - Order 6688385 filter assy & 6668819 filter - replace existing short filter (5.5'' long) with longer 6668819 filter (9'' long)

3

6668819

FILTER, OIL HYD hydraulic - 9.5 (241,3 mm) long

4

6678669

STRAP

5

6679034

MOUNT

6

6681012

FILTER, OIL HYD IN-LINE inline

7

6681586

VALVE pressure build-up

7

6681968

SPRING

7

6681969

POPPET

7

6676044

ADAPTER

8

6681623

BUSHING

9

6683316

EXCHANGER heat hyd.

10

6683810

FAN 8 blade

11

FAN MOTOR See Illustration FAN MOTOR/ B24364

12

6727869

SENDER,HYD TEMP

13

6812390

HUB 1.42'' (36 mm) long - Use W/ 6683810 fan

14

6812828

ADAPTER

15

6814286

BRACKET

16

6814288

GUARD

17

6814660

HOSE

18

6815433

HOSE Was 6684365 - A

19

6815879

TUBE

20

6815880

TUBE

21

6815883

TUBE

22

6815885

BRACKET original design

23

6815893

TUBE

23

7165282

TUBELINE, HYD Use W/ 7165327 mount

24

7166145

HOSE, FORMED HYD Was 7156384 - A

25

7117206

HUB 2.01'' (51 mm) long - ESA Only - Use W/ 7117208 fan

26

7117208

FAN 5 blade - ESA Only

27

7125154

HOSE

28

7141621

HOSE

29

7141792

TUBELINE

30

MOUNT, FAN NLA - Order 7165327 mount and 7165282 tubeline - Was 7141918 - A

30

7165327

MOUNT, FAN

31

7141924

HOSE, HYD

32

7144732

FITTING, ELBOW HYD

32

79K12

O RING 10

33

7147700

HOSE, HYD

34

7147737

BRACKET, OIL COOLER

35

7147738

BRACKET, OIL COOLER

36

10L1212

ADAPTER

36

78K12

O-RING

37

15KB0810

FITTING, HYD CONNECTOR

37

79K10

O RING 10

38

15KB1616

FITTING, HYD CONNECTOR

38

79K16

O RING 10

39

17KB1612

FITTING, HYD ELBOW

39

79K12

O RING 10

40

18KB1212

FITTING, HYD ELBOW

40

79K12

O RING 10

41

19KB0810

FITTING, HYD TEE

41

79K10

O RING 10

42

1CM1030

BOLT

43

21KB0406

FTG HYD STRAIGHT TEE

43

79K6

O RING 10

44

21KB0808

FTG HYD STRAIGHT TEE

44

79K8

O RING 10

45

24K2

PLUG

45

79K3

O RING 10

46

25E21

WASHER 5 ESA Only - Use W/ 7117208 fan

47

26GM8013

BOLT

48

26GM8016

SCREW

49

26GM10020

BOLT

50

27E8

WASHER 10 Use W/ 6683810 fan

51

28CM1020

BOLT

52

29CM620

SCREW

53

29CM1020

BOLT

54

35C612

BOLT

55

36K6

CAP

56

36K10

CAP

57

43DM10

NUT

58

51DM10

NUT

59

5HM29

HOSECLAMP

60

6E6

WASHER

61

86F6

NUT

62

86F10

NUT

63

91K10

FITTING

64

96D8

NUT

65

7160487

BRACKET, BUILD UP VALVE modified design - Use W/replacement upperstructure
