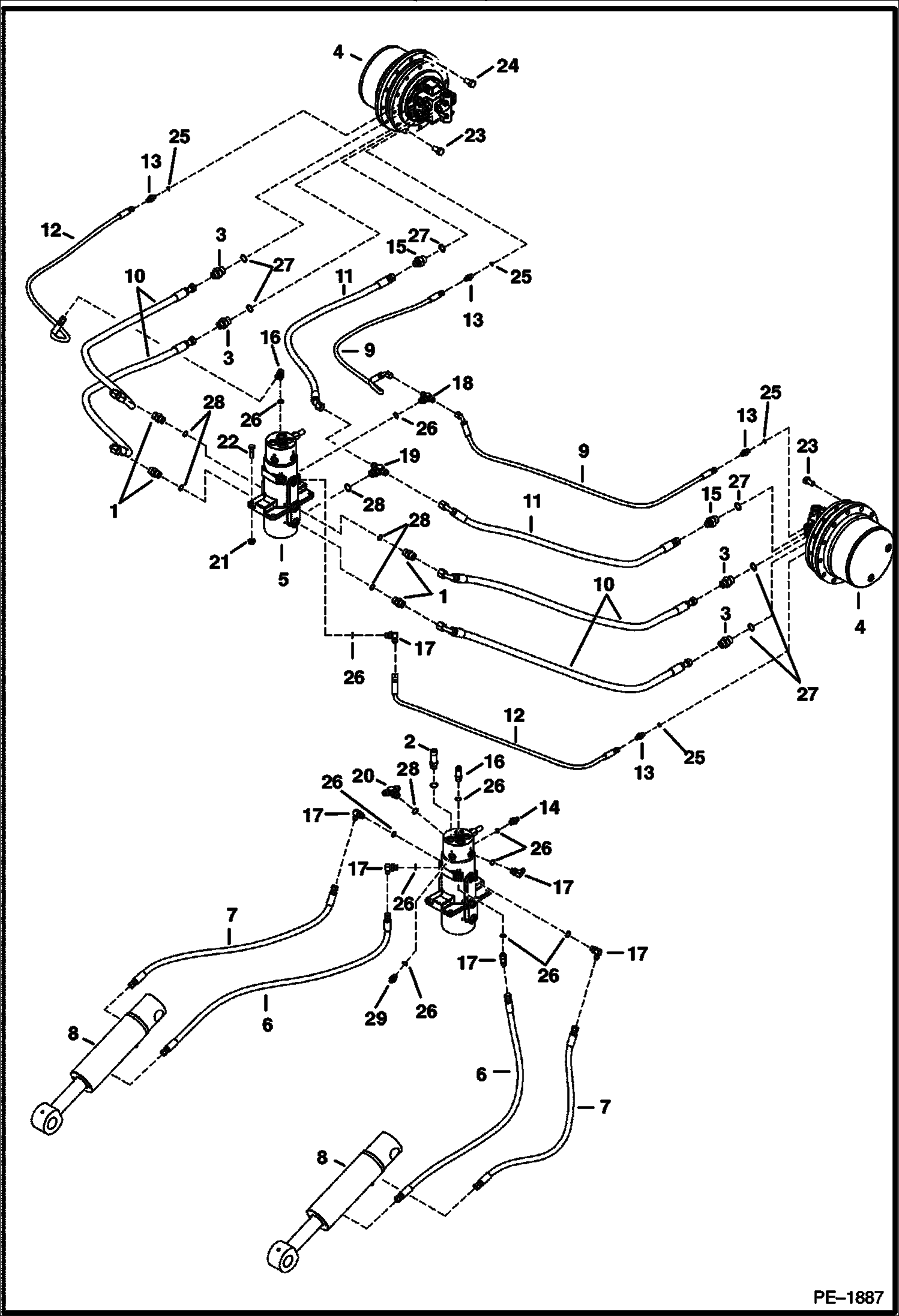

Запчасти Bobcat 435 HYDRAULIC/HYDROSTATIC CIRCUITRY (Lower) HYDRAULIC/HYDROSTATIC SYSTEM

1

6682986

ADAPTOR W/Ref. 28

1

58K014

O-RING 10 face seal

2

6682989

CONNECTOR W/Ref. 28

2

58K014

O-RING 10 face seal

3

6683811

ADAPTER W/Ref. 27

4

MOTOR See Illustration TRAVEL MOTOR/ B19921 See BTIE-086

4

MOTOR See Illustration TRAVEL MOTOR/ MS2319

5

6811778

SWIVEL assy

6

6814831

HOSE

7

6814832

HOSE

8

6815953

CYLINDER See Illustration BLADE CYLINDER/ PE3652

9

HOSE NLA - Order 7107672 - Was 6816492 9/16 thread size - A

9

7107672

HOSE 7/16 thread size

10

6816844

HOSE

11

7125151

HOSE Was 6816845 - B

12

6816846

HOSE

13

15KB0404

FTG HYD S Connector W/Ref. 25

14

15KB0606

FITTING, HYD CONNECTOR W/Ref. 26

15

15KB0810

FITTING, HYD CONNECTOR W/Ref. 27

16

7128584

ELBOW W/Ref. 26 - Was 16KB606 - B

17

17KB0606

FITTING 9/16 thread size - W/Ref. 26

17

17KB0406

FITTING, HYD ELBOW 7/16 thread size - manifold - W/Ref 26

18

19KB0606

TEE 9/16 thread size - used with NLA hose - W/Ref 26

18

19KB0406

FITTING, HYD TEE 7/16 thread size - Use W/ 7107672 hose - W/Ref 26

19

19KB0808

Fitting Hydraulic Branch Tee W/Ref. 28

20

21KB0808

FTG HYD STRAIGHT TEE W/Ref. 28

21

43DM10

NUT Was 42DM00010B - D

22

53CM1040

SCREW

23

55CM1425

SCREW

24

55CM1445

SCREW

25

79K4

O RING 10

26

79K6

O RING 10

27

79K10

O RING 10

28

79K8

O RING 10

29

15KB0406

FTG HYD S CONNECTOR Use W/ hose W/ 90 degree end

29

17KB0406

FITTING, HYD ELBOW Use W/hose W/straight end

29

7161014

TEE W/motion alarm option

29

79K6

O RING 10
