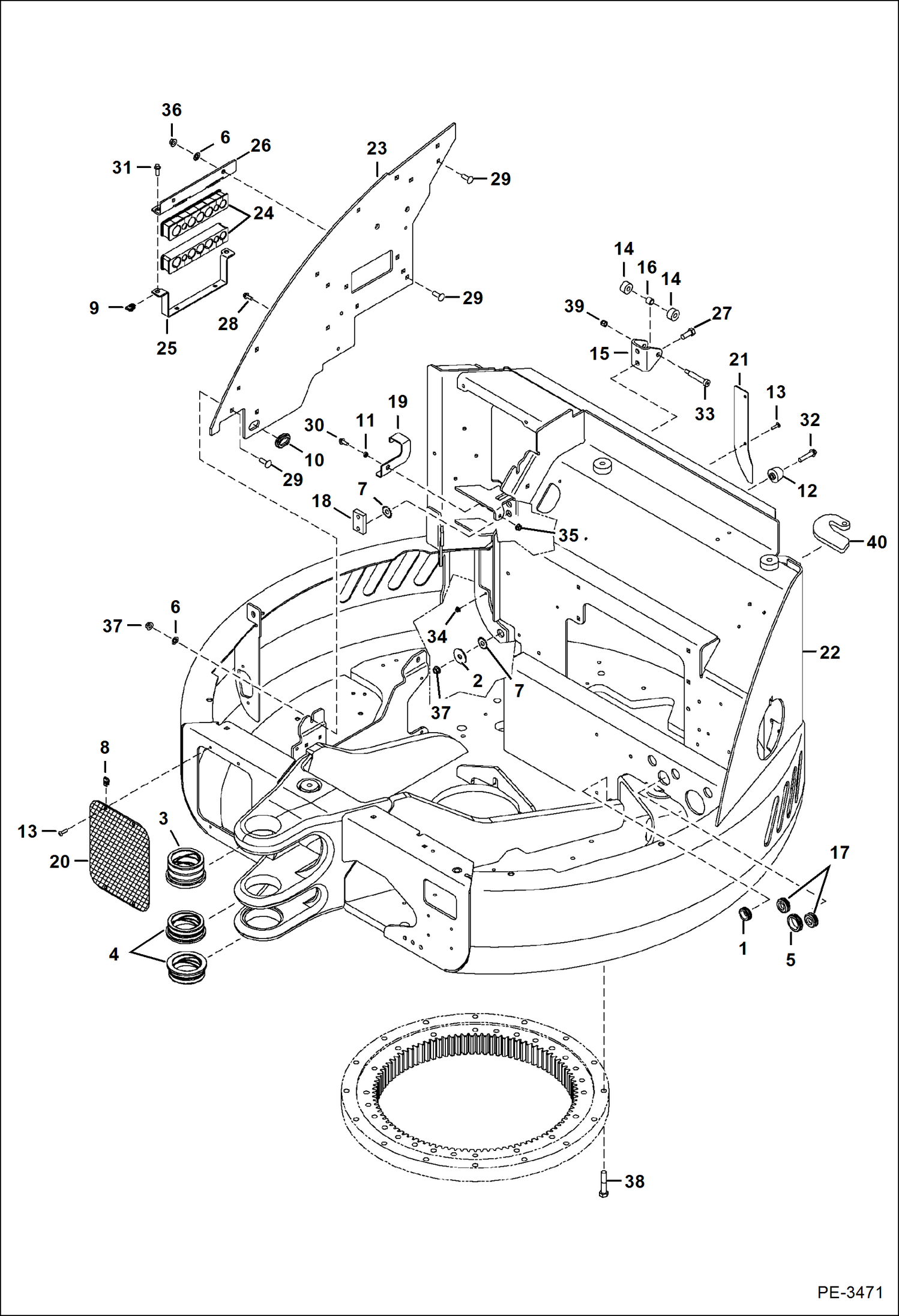

Запчасти Bobcat 435 UPPERSTRUCTURE (S/N 5632 14000-14007, 15000 & Above) MAIN FRAME

1

6515603

GROMMET

2

6560899

WASHER

3

6628101

BUSHING

4

6628102

BUSHING

5

6670119

GROMMET

6

6674264

RETAINER NUT

7

6675273

WASHER

8

6676026

NUT

9

6676169

NUT

10

6681886

GROMMET

11

6807220

SPACER

12

6808365

BUMPER

13

6809030

SCREW

14

6809726

ROLLER

15

6809727

CHANNEL

16

6809734

BUSHING

17

6810133

GROMMET

18

6810802

BAR

19

6811886

TAILGATE LOCK

20

6816555

SCREEN

21

7110857

COVER

22

UPPERSTRUCTURE NLA - Order 7161061 upperstructure & 7160487 build-up valve bracket - Was 7156639 - A

23

7131987

PLATE

24

7133309

GUIDE, HOSE

25

7134798

BRACKET

26

7134799

BRACKET

27

17C820

BOLT

28

26GM10020

BOLT

29

28CM1030

BOLT

30

29CM820

SCREW

31

29CM825

BOLT

32

29CM1050

BOLT

33

38C840

BOLT

34

43DM6

NUT

35

43DM8

NUT

36

43DM10

NUT

37

51DM10

NUT

38

55CM1470

SCREW

39

59D6

NUT

40

6810968

HINGE weld-on
