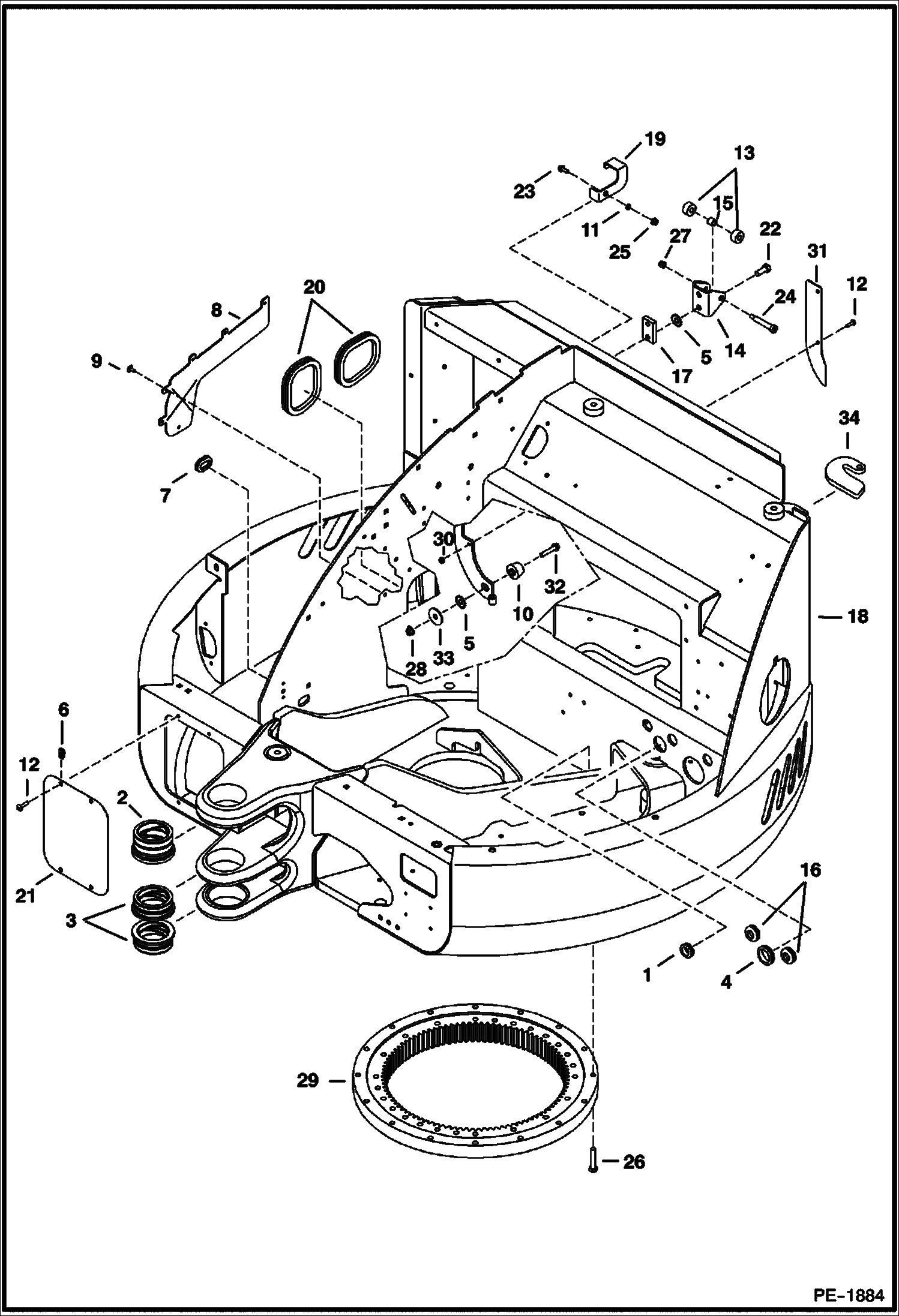

Запчасти Bobcat 435 UPPERSTRUCTURE (S/N 5632 11001-13999, 14008-14999) MAIN FRAME

1

6515603

GROMMET

2

6628101

BUSHING

3

6628102

BUSHING

4

6670119

GROMMET

5

6675273

WASHER lock

6

6676026

NUT

7

6681886

GROMMET

8

6682272

SEAL rubber

9

6683172

CLIP plastic tree

10

6808365

BUMPER Was 6733616 - B

11

6807220

SPACER

12

6809030

SCREW

13

6809726

ROLLER

14

6809727

CHANNEL

15

6809734

BUSHING

16

6810133

GROMMET

17

6810802

BAR striker

18

UPPERSTRUCTURE NLA - Order 7102847 upperstructure, 7109894 hose, and 7109134 bracket - Was 7102847 - A

18

7102847

UPPERSTRUCTURE

19

6811886

TAILGATE LOCK

20

7124332

GROMMET Was 6814926 - A

21

6816555

SCREEN

22

17C820

BOLT

23

29CM820

SCREW

24

38C840

BOLT

25

43DM8

NUT

26

55CM1470

SCREW

27

59D6

NUT

28

51DM10

NUT Was 61D5 - B

29

6675777

BEARING

30

43DM6

NUT

31

7110857

COVER

32

29CM1050

BOLT

33

6560899

WASHER

34

6810968

HINGE weld-on
