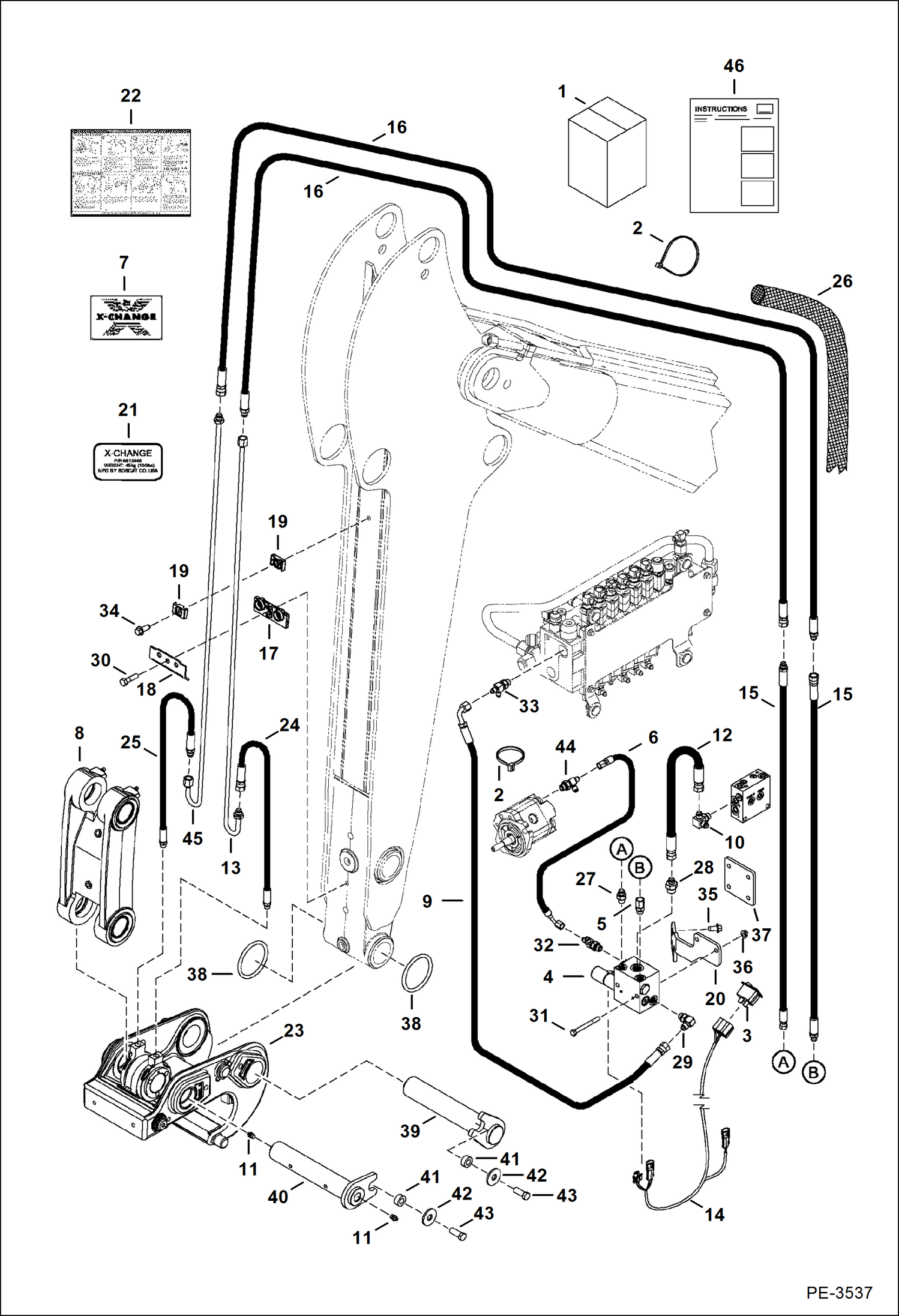

Запчасти Bobcat 435 X-CHANGE (Hydraulic) (Kit)(S/N 5631 14000-14006, 15000 & Above) ACCESSORIES & OPTIONS

1

7155769

KIT, X-CHANGE HYD SHORT ARM hydraulic X-Change for standard arm - Ref. 2-9, 11-43 & 45-46

1

7155770

KIT, X-CHANGE HYD LONG ARM hydraulic X-Change for long arm - Ref. 2-9, 11-43 & 45-46

2

6624289

STRAP, TIE

3

6688667

SWITCH

4

6688821

MANIFOLD

5

6732089

CONNECTOR

6

7125143

HOSE

7

6803760

DECAL

8

LINK NLA - Order components - Was 6813005 - A

9

6800963

HOSE, HYD

10

6725182

TEE not in kit

11

10H25

FITTING, GREASE 5

12

7117661

HOSE

13

7115617

TUBELINE

14

7113694

HARNESS

15

7114637

HOSE

16

7140688

HOSE For standard arm

16

7140689

HOSE For long arm

17

7114712

CLAMP

18

7114713

PLATE COVER

19

7115645

CLAMP

20

7141705

BRACKET

21

7116756

DECAL

22

7134587

DECAL, X-CHANGE

23

7135873

X-CHG SWIVEL ASSY assy

24

7117184

HOSE

25

7117185

HOSE

26

7120119

GUARD

27

15KB0606

FITTING, HYD CONNECTOR

28

15KB0608

FITTING, HYD CONNECTOR

29

17KB0606

FITTING

30

1CM1040

BOLT

31

1CM880

BOLT

32

21KB0406

FTG HYD STRAIGHT TEE

33

21KB0606

FTG HYD STRAIGHT TEE

34

26GM10030

BOLT

35

26GM10020

BOLT

36

43DM8

NUT

37

7120188

PLATE MOUNT

38

6674145

O-RING

39

6813401

PIN

40

7121252

PIN

41

6816368

SPACER

42

17EM120

WASHER

43

1CM1235

BOLT

44

ELBOW not in kit

45

7115618

TUBELINE

46

6904249

INSTRUCTIONS

47

7110324

TUBELINE not in kit - not used
