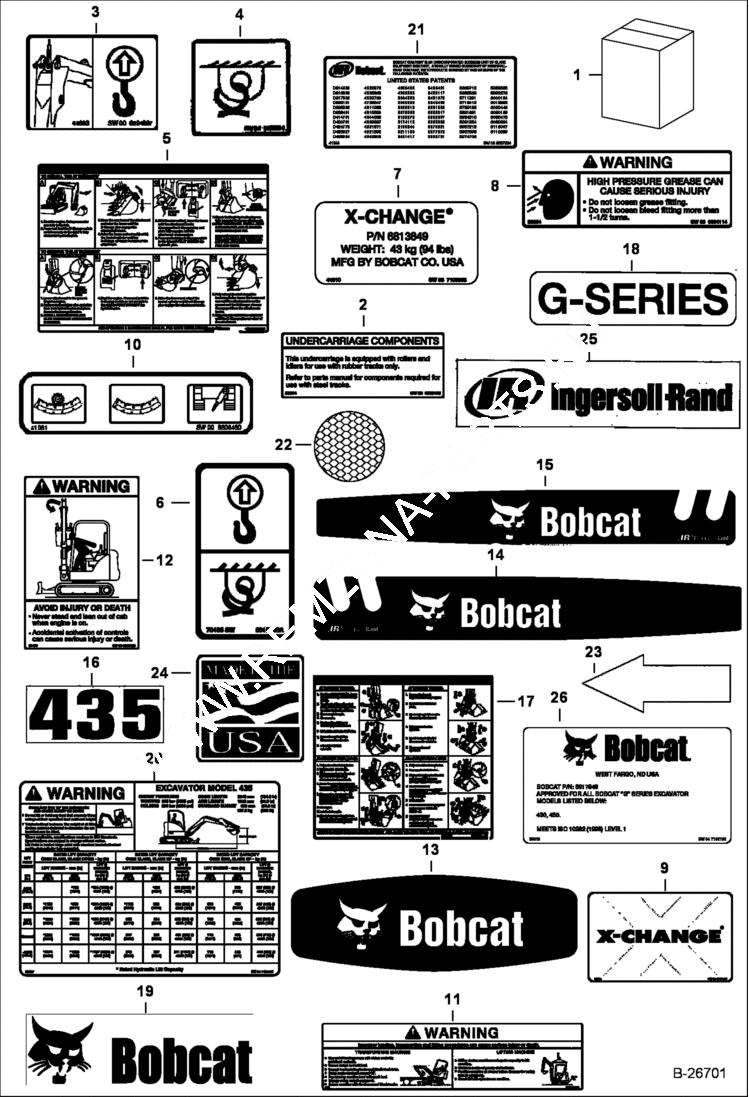

Запчасти Bobcat 435 DECALS (Outside) ACCESSORIES & OPTIONS

1

6986669

KIT DECAL See Illustration DECALS/ B24952 includes Ref. 2-26 - Also includes Ref. 2-24 on this page

1

7126836AR

KIT TRANS DECAL

1

7126836BR

KIT TRANS DECAL

1

7126836JP

KIT TRANS DECAL

1

7126835AR

KIT TRANSLATION

1

7126835BR

KIT TRANSLATION

2

6589129

DECAL track-rubber

3

6594897

DECAL boom lift

4

6595014

DECAL tie down

5

7134587

DECAL, X-CHANGE using hydraulic X-Change

6

6815993

DECAL, LIFT tie down

7

7100058

DECAL pin-on X-Change

7

7116756

DECAL hydraulic X-Change

8

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

9

6803760

DECAL X-Change

10

6808480

DECAL remote grease

11

6808185

DECAL warning

12

6809829

DECAL warning

13

6812258

DECAL rear logo

14

6813506

DECAL RH logo

15

6813507

DECAL LH logo

16

6815541

DECAL model 435

17

7102651

DECAL using pin-on X-Change

18

6817056

DECAL G series

19

6815489

DECAL logo - 402 mm (15.81'') long

19

6727324

DECAL, LOGO BOBCAT AND HEAD 210 mm (8.25'') long

20

7107501

DECAL lift capacity

20

7107502

DECAL lift capacity W/long arm - Was 7106219 - A

21

DECAL NLA - patent - Was 6557224 - C

22

7106627

DECAL, REFLECTIVE reflective

23

6533899

DECAL arrow

24

DECAL NLA - Was 7136123 - A

25

DECAL NLA - IR Logo - not in kit - Was 6735864 - A

26

7103193

DECAL top guard - not in kit

26

7103194

DECAL spcl apps canopy - not in kit

26

7103195

DECAL spcl apps cab - not in kit
