VALVE SECTION (Right Travel)

Запчасти Bobcat 435 VALVE SECTION (Right Travel) HYDRAULIC SYSTEM

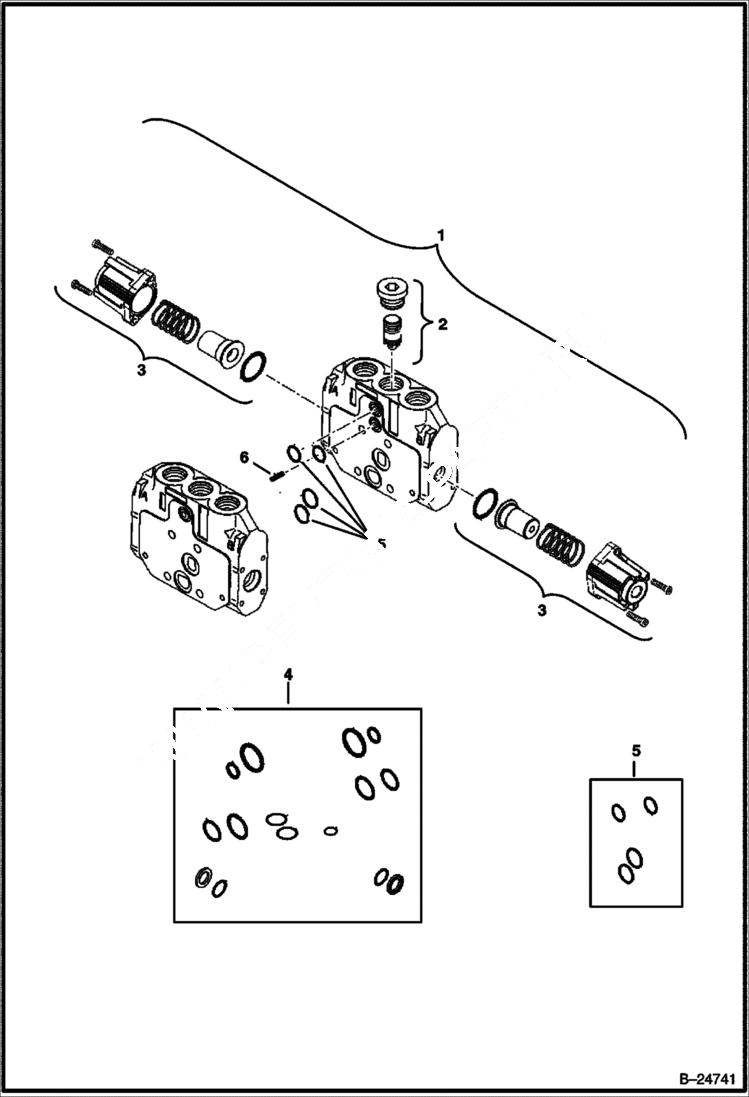

Схема запчастей Bobcat 435 - VALVE SECTION (Right Travel) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6679924

SECTION, VALVE W/(3) O-ring grooves - Was 6686582 - A

2

6677690

KIT, COMPENSATOR pressure - Was 6686896 - A

3

6677699

ACTUATOR assy - Was 6685254 - A

4

6677470

SEAL KIT assy - Was 6685264 - A

5

6677472

KIT,SEAL Was 6686594 - A

6

6677695

SCREW
