Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Pilot ISO/STD) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

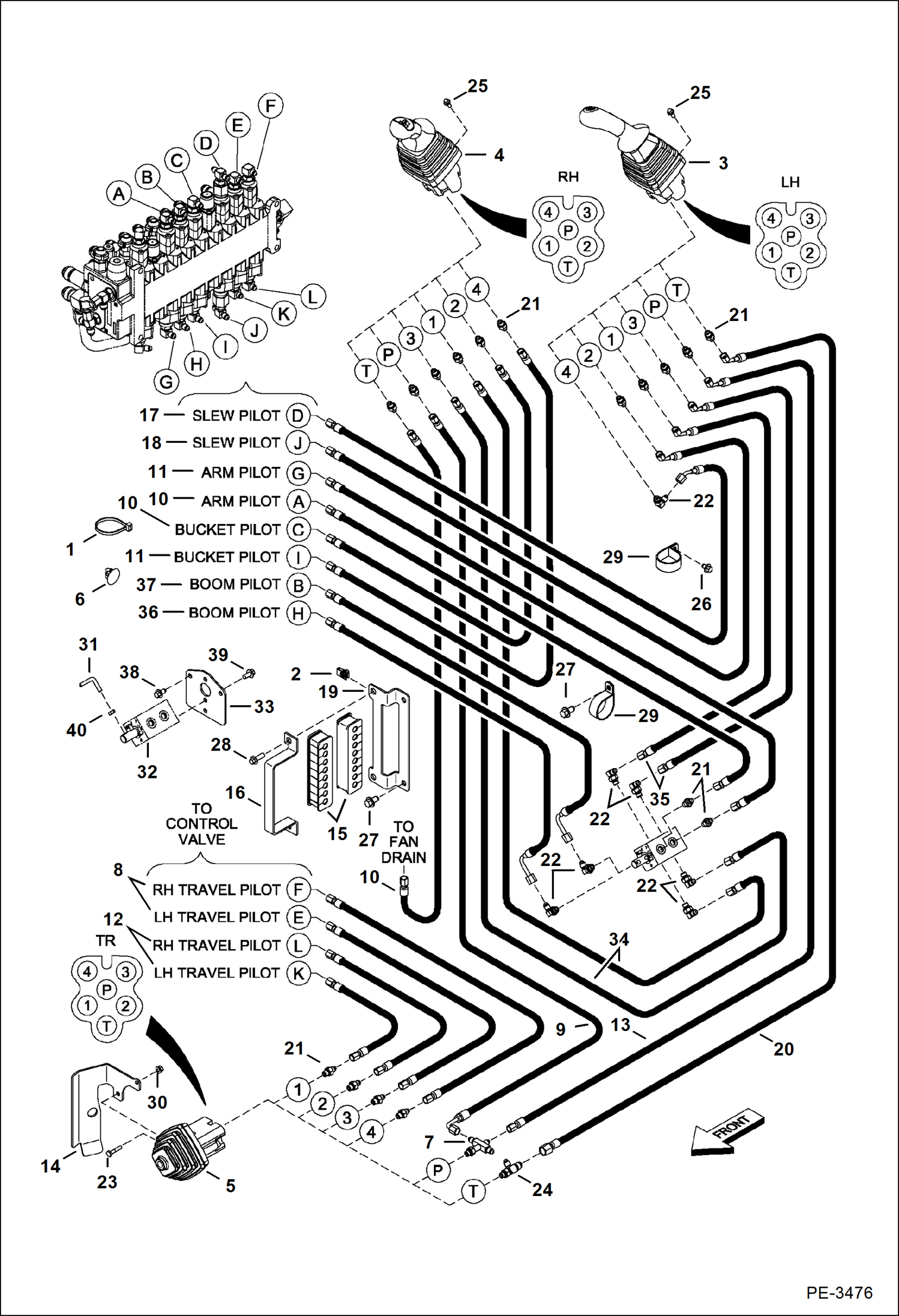

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Pilot ISO/STD) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6676169

NUT

3

6677894

JOYSTICK

4

6677895

JOYSTICK

5

6677896

JOYSTICK

6

6691172

PLUG

7

6812829

CROSS

7

79K4

O RING 10

8

7106597

HOSE

9

7106599

HOSE

10

7106611

HOSE

11

7106615

HOSE

12

7107650

HOSE

13

7107672

HOSE

14

7126056

GUIDE

15

7133310

GUIDE, HOSE

16

7134800

BRACKET

17

7142536

HOSE

18

7142538

HOSE

19

7144687

BRACKET

20

7145071

HOSE

21

15KB0404

FTG HYD S Connector

21

79K4

O RING 10

22

17KB0404

FTG HYD ELBOW 90

22

79K4

O RING 10

23

17C420

BOLT

24

21KB604

FITTING

24

79K4

O RING 10

25

26GM6020

SCREW

26

26GM8013

BOLT

27

26GM10020

BOLT

28

29CM825

BOLT

29

30H85

CLAMP

30

83D4

NUT 10

31

6804251

HANDLE

32

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

33

6814607

PLATE

34

7107657

HOSE

35

7107665

HOSE

36

7141412

HOSE

37

7141413

HOSE

38

26GM8016

SCREW

39

29CM816

SCREW

40

53DM6

NUT Was 1DM6 - A

Выбрано товаров: 44
