Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Pilot ISO/STD) (S/N 5631 11001-13999, 14007-14999) HYDRAULIC SYSTEM

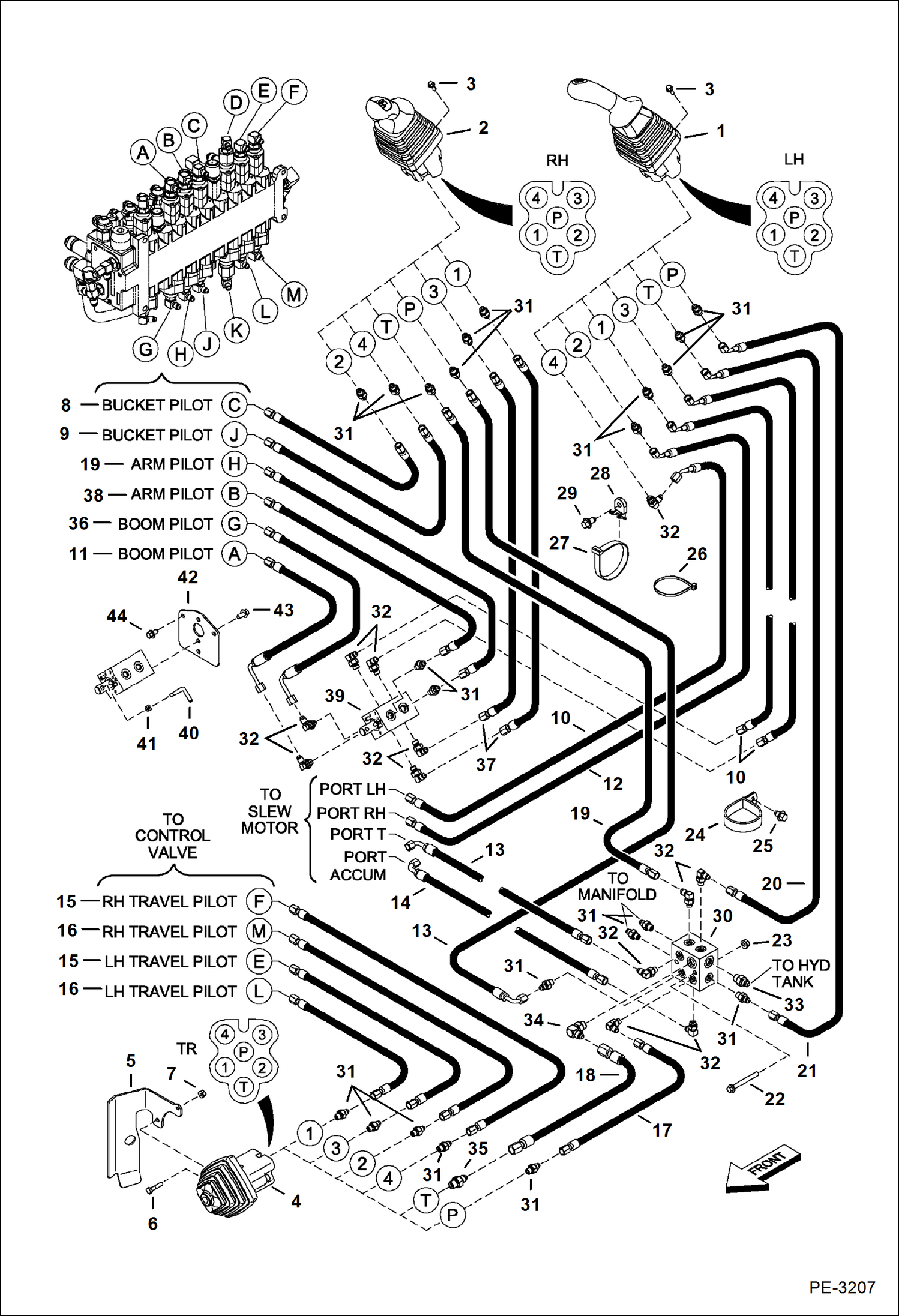

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Pilot ISO/STD) (S/N 5631 11001-13999, 14007-14999) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

2

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

3

26GM6020

SCREW

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

7126056

GUIDE

6

17C420

BOLT Was 1CM630 - B

7

83D4

NUT 10 Was 43DM6 - B

8

7107647

HOSE Was 6806794 - B

9

7107646

HOSE Was 6813884 - B

10

7107665

HOSE Was 6813882 - B

11

7125156

HOSE Was 6717266 - B

12

7107644

HOSE Was 6815465 - B

13

7106608

HOSE Was 6815471 & 6807946 - B

14

7106613

HOSE Was 6803091 - B

15

7107638

HOSE 1 staight & 1 90 degree end - use with straight adapter in valve - Was 6807480 - B

15

7106598

HOSE 2 straight ends - use with 90 degree elbow in valve

16

7102576

HOSE 1 staight & 1 90 degree end - use with straight adapter in valve

16

7107650

HOSE 2 straight ends - use with 90 degree elbow in valve

17

7106604

HOSE Was 6815261 - B

18

7107651

HOSE Was 6817066 - B

19

7107648

HOSE Was 6813790 - B

20

7106592

HOSE assy - Was 6578185 - B

21

7107661

HOSE Was 6815897 - B

22

29CM870

BOLT

23

51DM8

NUT

24

30H85

CLAMP

25

26GM10016

SCREW

25

26GM8013

BOLT

26

6624289

STRAP, TIE

27

6685156

RETAINER cable tie

28

6679034

MOUNT Was 30H100 - B

29

26GM10020

BOLT

30

6814985

BLOCK

31

15KB0404

FTG HYD S Connector

31

79K4

O RING 10

32

17KB0404

FTG HYD ELBOW 90 90 degree

32

79K4

O RING 10

33

15KB0606

FITTING, HYD CONNECTOR

33

79K6

O RING 10

34

17KB0606

FITTING 90 degree

34

79K6

O RING 10

35

15KB0604

FTG HYD S CONNECTOR

35

79K4

O RING 10

36

6807478

HOSE

37

7107657

HOSE Was 6577775 - B

38

6812855

HOSE

39

6805768

VALVE

40

6804251

HANDLE

41

4DM8

NUT

42

6814607

PLATE mounting

43

26GM8016

SCREW

44

29CM816

SCREW

Выбрано товаров: 52
