Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Pilot) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

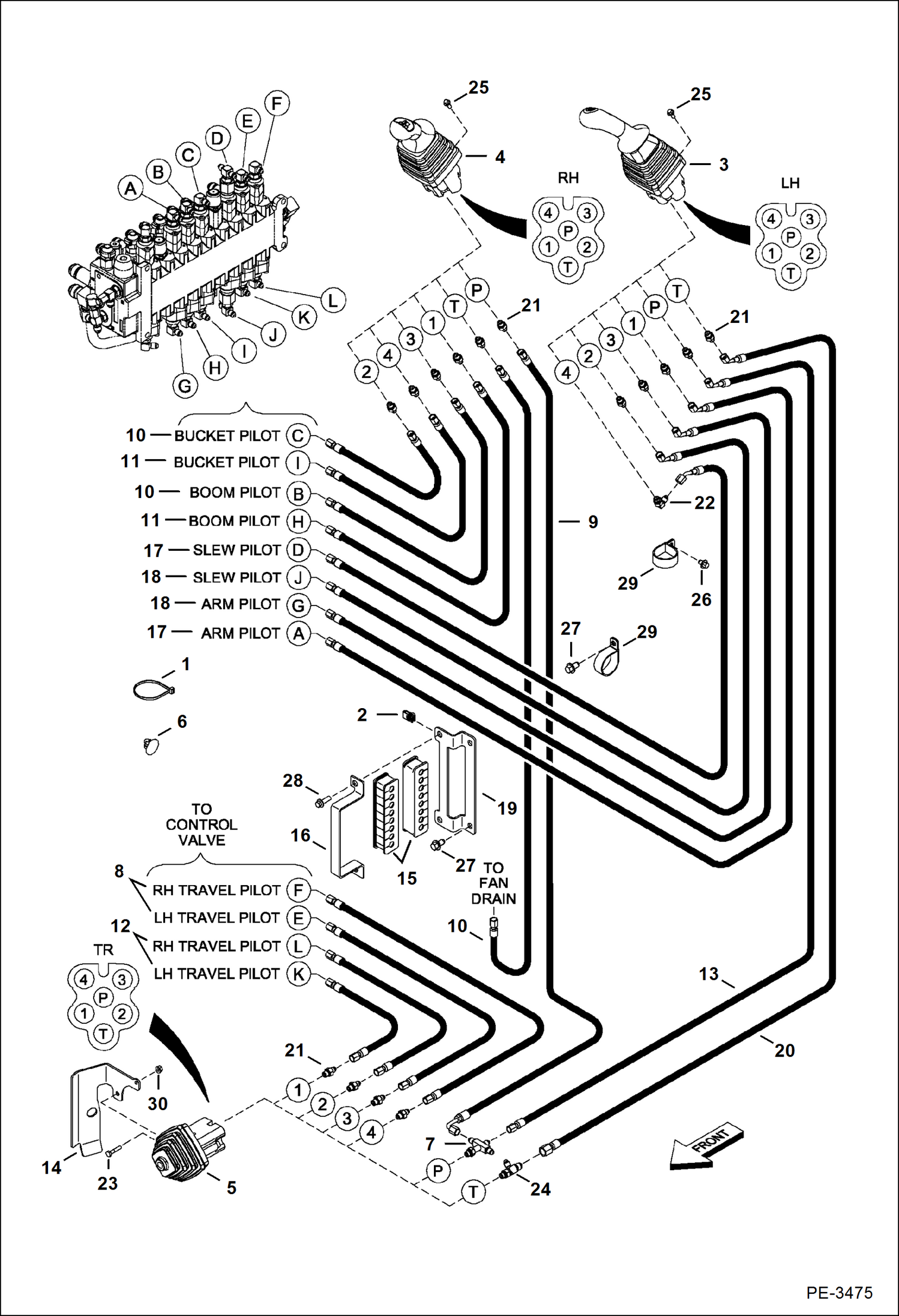

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Pilot) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6676169

NUT

3

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

4

6677895

JOYSTICK See Illustration R.H. JOYSTICK/ MS1352

5

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

6

6691172

PLUG

7

6812829

CROSS

7

79K4

O RING 10

8

7106597

HOSE

9

7106599

HOSE

10

7106611

HOSE

11

7106615

HOSE

12

7107650

HOSE

13

7107672

HOSE

14

7126056

GUIDE

15

7133310

GUIDE, HOSE

16

7134800

BRACKET

17

7142536

HOSE

18

7142538

HOSE

19

7144687

BRACKET

20

7145071

HOSE

21

15KB0404

FTG HYD S Connector

21

79K4

O RING 10

22

17KB0404

FTG HYD ELBOW 90

22

79K4

O RING 10

23

17C420

BOLT

24

21KB604

FITTING

24

79K4

O RING 10

25

26GM6020

SCREW

26

26GM8013

BOLT

27

26GM10020

BOLT

28

29CM825

BOLT

29

30H85

CLAMP

30

83D4

NUT 10

Выбрано товаров: 34
