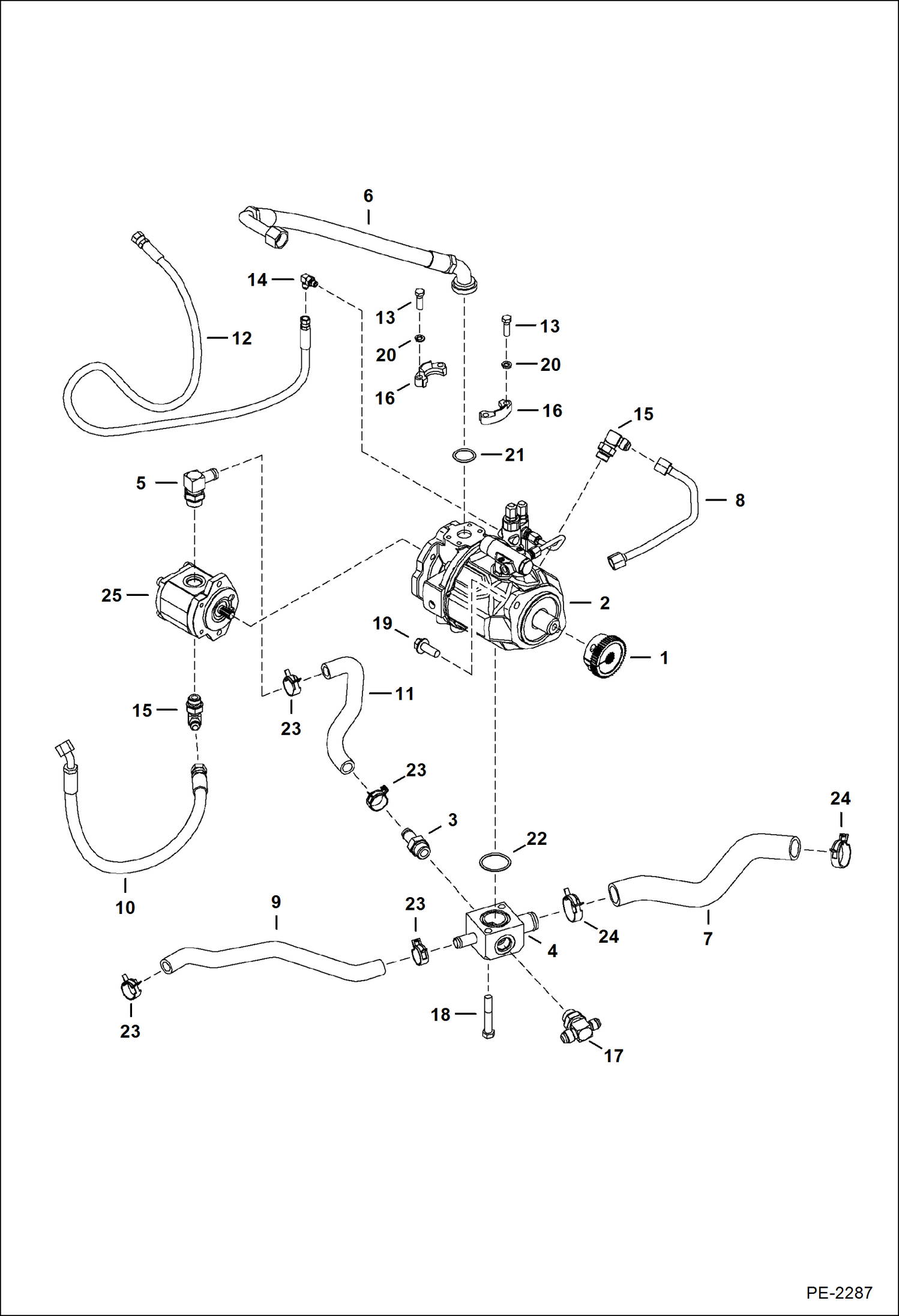

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Pump) HYDRAULIC SYSTEM

1

6676535

COUPLER

2

7001430

PUMP, HYD - assy - W/gear pump - Was 6685694 - A

3

6812865

FITTING

3

79K12

O RING 10

4

6814414

MANIFOLD

5

6814419

FITTING

5

79K12

O RING 10

6

6815429

HOSE

7

7159241

HOSE, HYD FORMED Was 7101024 - A

8

7101026

TUBELINE

9

6814942

HOSE See Illustration HYDRAULIC CIRCUITRY/ PE2313 Was 7101112 - B

10

7102579

HOSE

11

7102953

HOSE

12

7107865

HOSE

13

17C620

BOLT

14

17KB0404

FTG HYD ELBOW 90 90 degree

14

79K4

O RING 10

15

17KB0810

FITTING, HYD ELBOW 90 degree

15

79K10

O RING 10

16

19J16

FLANGE

17

19KB0812

FITTING, HYD TEE

17

79K12

O RING 10

18

17C848

BOLT

19

29CM1435

SCREW

20

WASHER no longer needed - Was 4E6 - B

21

58K219

O RING 10

22

58K225

O RING 10

23

5HM29

HOSECLAMP hose

24

5HM42

HOSECLAMP

25

GEAR PUMP See Illustration GEAR PUMP/ MS2060
