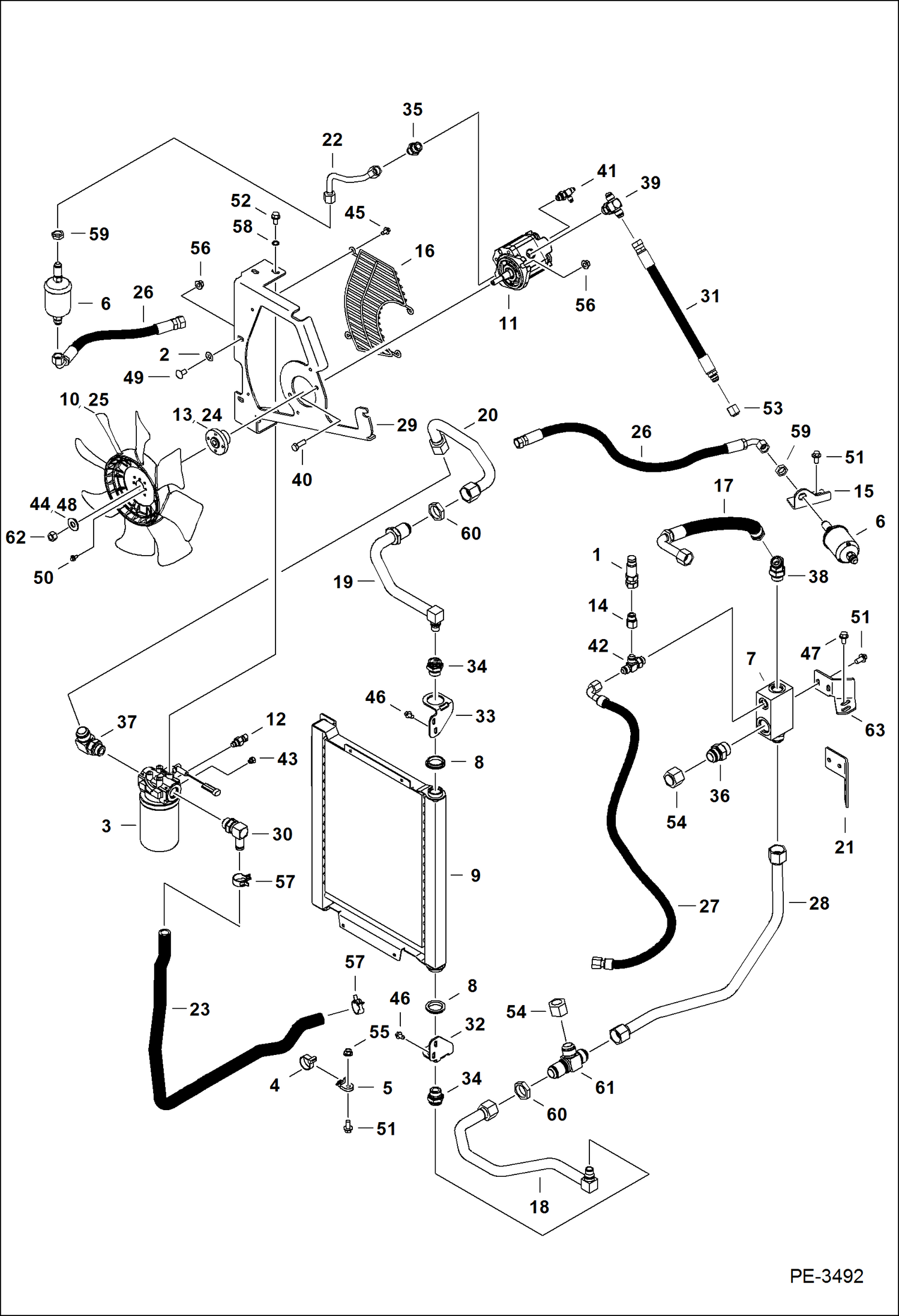

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Cooler/Filter) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

1

6667806

COUPLER

2

6674264

RETAINER NUT

3

FILTER See Illustration HYDROSTATIC OIL FILTER/ NA1844 NLA - assy - Order 6688385 filter assy & 6668819 filter - replace existing short filter (5.5'' long) with longer 6668819 filter (9'' long) -

3

6668819

FILTER, OIL HYD hydraulic - 9.5 (241,3 mm) long

4

6678669

STRAP

5

6679034

MOUNT

6

6681012

FILTER, OIL HYD IN-LINE in-line

7

6681586

VALVE pressure build-up

7

6681968

SPRING

7

6681969

POPPET

7

6676044

ADAPTER

8

6681623

BUSHING

9

6683316

EXCHANGER heat hyd.

10

6683810

FAN 8 blade

11

MOTOR See Illustration FAN MOTOR/ B24364

12

6727869

SENDER,HYD TEMP

13

6812390

HUB 1.42'' (36 mm) long - Use W/ 6683810 fan

14

6812828

ADAPTER W/Ref. 61

15

6814286

BRACKET filter

16

6814288

GUARD fan

17

6815433

HOSE

18

6815879

TUBE

19

6815880

TUBE

20

6815883

TUBE

21

6815885

BRACKET original design

22

6815893

TUBE

22

7165282

TUBELINE, HYD Use W/ 7165327 mount

23

7166145

HOSE, FORMED HYD Was 7156384 - A

24

7117206

HUB 2.01'' (51 mm) long - ESA Only - Use W/ 7117208 fan

25

7117208

FAN 5 blade - ESA Only

26

7125154

HOSE

27

7141621

HOSE

28

7141792

TUBELINE

29

MOUNT, FAN NLA - Order 7165327 mount and 7165282 tubeline - Was 7141918 - A

29

7165327

MOUNT, FAN

30

7144732

FITTING, ELBOW HYD

30

79K12

O RING 10

31

7147700

HOSE, HYD

32

7147737

BRACKET, OIL COOLER

33

7147738

BRACKET, OIL COOLER

34

10L1212

ADAPTER to std

35

15KB0810

FITTING, HYD CONNECTOR

35

79K10

O RING 10

36

15KB1616

FITTING, HYD CONNECTOR

36

79K16

O RING 10

37

17KB1612

FITTING, HYD ELBOW

37

79K12

O RING 10

38

18KB1212

FITTING, HYD ELBOW

38

79K12

O RING 10

39

19KB0810

FITTING, HYD TEE

39

79K10

O RING 10

40

1CM1030

BOLT

41

21KB0406

FTG HYD STRAIGHT TEE

41

79K6

O RING 10

42

21KB0808

FTG HYD STRAIGHT TEE

42

79K8

O RING 10

43

24K2

PLUG

43

79K3

O RING 10

44

25E21

WASHER 5 ESA Only - Use W/ 7117208 fan

45

26GM8013

BOLT

46

26GM8016

SCREW

47

26GM10020

BOLT

48

27E8

WASHER 10 Use W/ 6683810 fan

49

28CM1020

BOLT

50

29CM620

SCREW

51

29CM1020

BOLT

52

35C612

BOLT

53

36K6

CAP

54

36K10

CAP

55

43DM10

NUT

56

51DM10

NUT

57

5HM29

HOSECLAMP

58

6E6

WASHER

59

86F6

NUT

60

86F10

NUT

61

91K10

FITTING

62

96D8

NUT

63

7160487

BRACKET, BUILD UP VALVE modified design - Use W/replacement upperstructure
