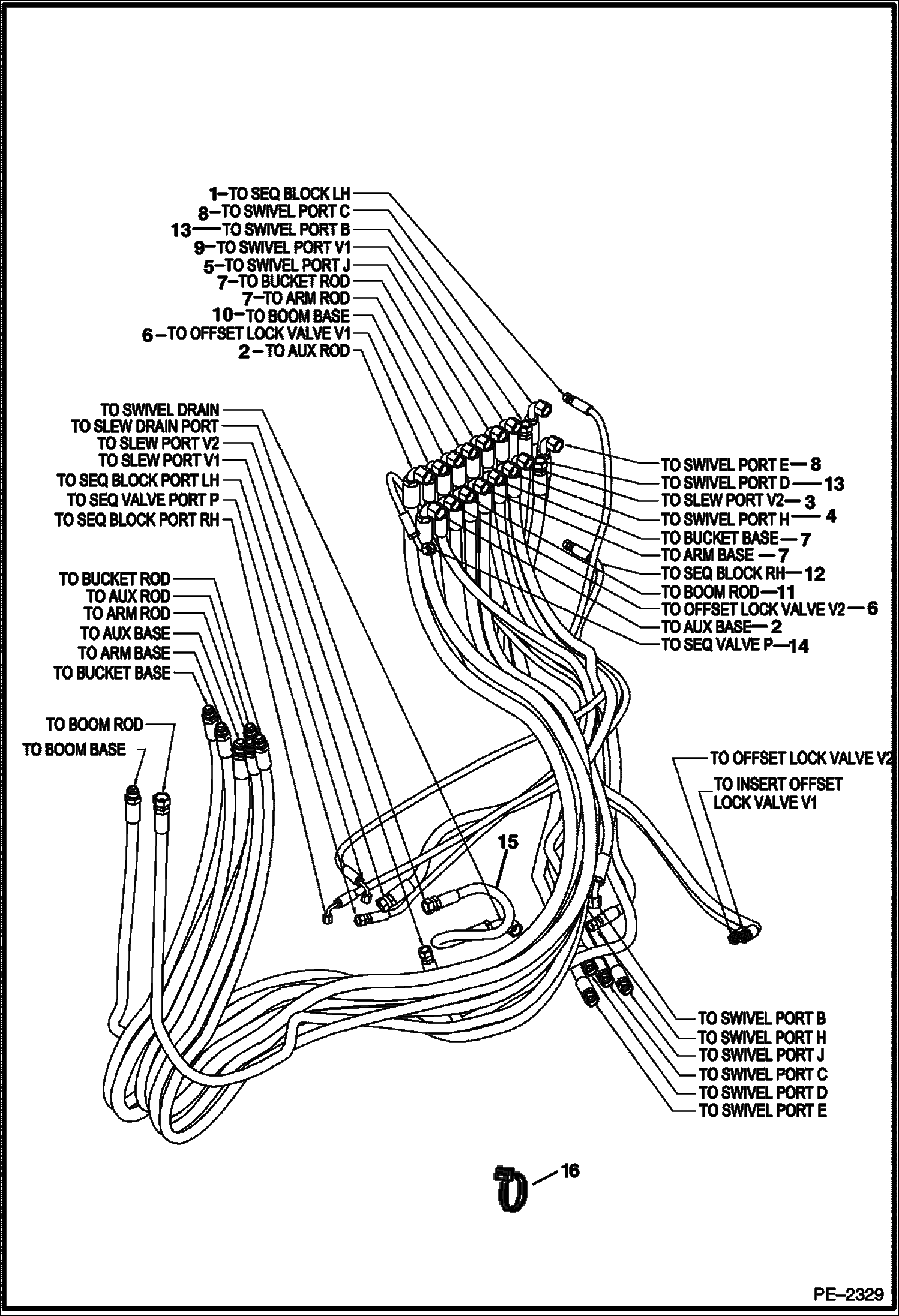

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Function Hoses) (S/N 5631 11001-13999, 14007-14999) HYDRAULIC SYSTEM

1

7125157

HOSE Was 6806788 - B

2

6807460

HOSE

3

6813903

HOSE

4

6815033

HOSE

5

6815582

HOSE

6

6817060

HOSE

7

6818101

HOSE

8

6818105

HOSE

9

7101790

HOSE

10

7117825

HOSE Was 7101791 - A

11

7117826

HOSE Was 7101792 - A

12

7125153

HOSE Was 7102576 - B

13

7103037

HOSE

14

7105261

HOSE

15

7106221

HOSE Was 6615630 - A

16

6624289

STRAP, TIE
