Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Upper) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

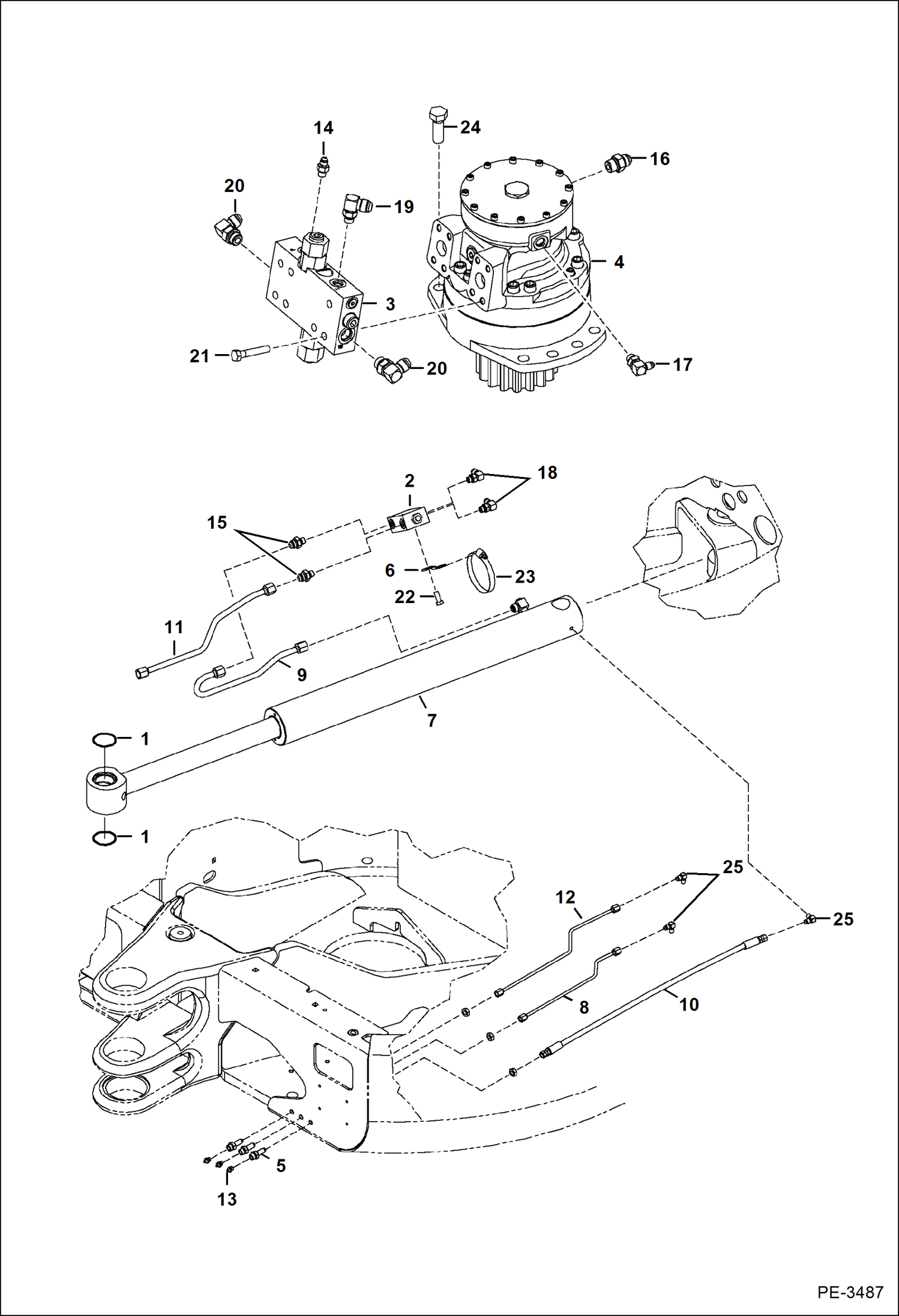

Схема запчастей Bobcat 435 - HYDRAULIC CIRCUITRY (Upper) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6669287

SEAL

2

6676167

VALVE See Illustration LOCK VALVE/ C3475 lock

3

6678788

VALVE See Illustration RELIEF/BRAKE VALVE/ B16419 - Assy.

4

6689391

MOTOR, HYD SLEW

5

6807184

FITTING

6

6807345

MOUNT

7

CYLINDER, SWING See Illustration SWING CYLINDER/ PE3778

8

6813917

TUBE

9

6816328

TUBE

10

7107658

HOSE Was - 6802064 - A

11

7109685

TUBELINE See Illustration SWING CYLINDER/ PE3778 - Use on NLA cylinders 6812633 & 7156130 - Was 6816329 - A

11

7164139

TUBELINE, HYD See Illustration SWING CYLINDER/ NA6519 - Use W/replacement cylinder 7161469

12

7126402

TUBELINE

13

10H25

FITTING, GREASE 5 grease

14

15KB0404

FTG HYD S Connector

14

79K4

O RING 10

15

15KB0806

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

15KB0808

FITTING, HYD CONNECTOR

16

79K8

O RING 10

17

17KB0406

FITTING, HYD ELBOW

17

79K6

O RING 10

18

17KB0606

FITTING

18

79K6

O RING 10

19

17KB0806

FITTING, HYD ELBOW

19

79K6

O RING 10

20

17KB0808

FITTING, HYD ELBOW

20

79K8

O RING 10

21

17C732

BOLT

22

1CM1020

BOLT

23

42H56

CLAMP

24

7CM1645

SCREW

25

83F3

ELBOW 5

Выбрано товаров: 33
