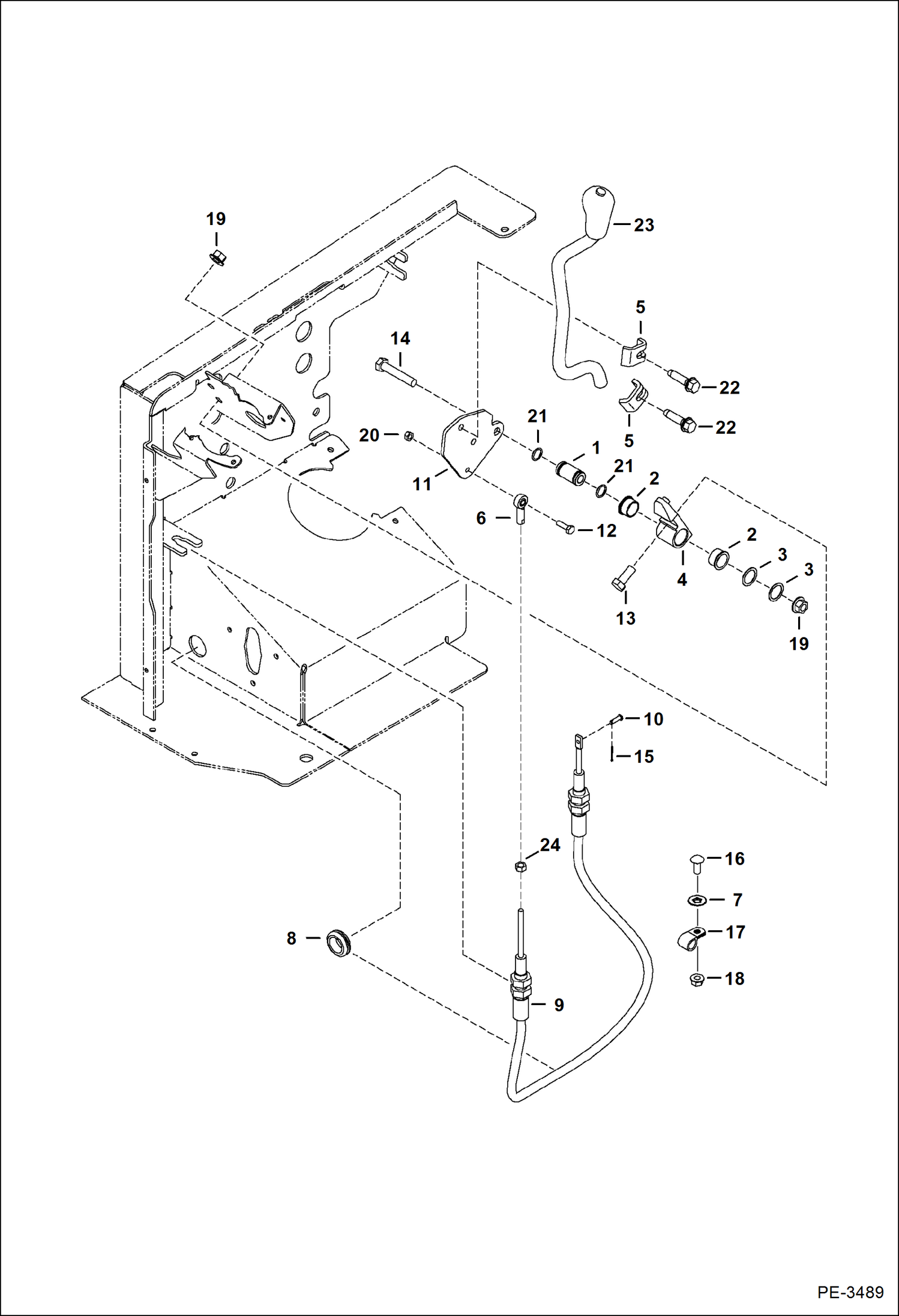

Запчасти Bobcat 435 BLADE CONTROL (S/N 5631 14000-14006, 15000 & Above) CONTROLS

1

6536545

SLEEVE

2

6536801

BUSHING

3

6536802

WASHER

4

6537481

MOUNT

5

6562266

CLAMP

6

6593671

CONNECTOR

7

6675859

RETAINER

8

6676508

GROMMET

9

6679038

CABLE

10

6801068

PIN

11

7137687

PLATE Was 7100534 - A

12

1CM620

BOLT

13

1CM1025

BOLT

14

1CM1055

BOLT

15

1F212

PIN

16

28CM820

BOLT

17

30H30

CLAMP

18

43DM8

NUT

19

43DM10

NUT

20

1DM6

NUT Was 4DM6 - A

21

58K015

O-RING 10

22

84G3720

BOLT Was 84G3724

23

BLADE LEVER NLA - Order components - Was 7117039 - A

23

6675721

SWITCH momentary

23

6675831

HANDLE front half

23

6675832

HANDLE back half

23

7117038

TUBE

23

SCREW NLA - #6 x 5/8 pan head

24

62D4

NUT
