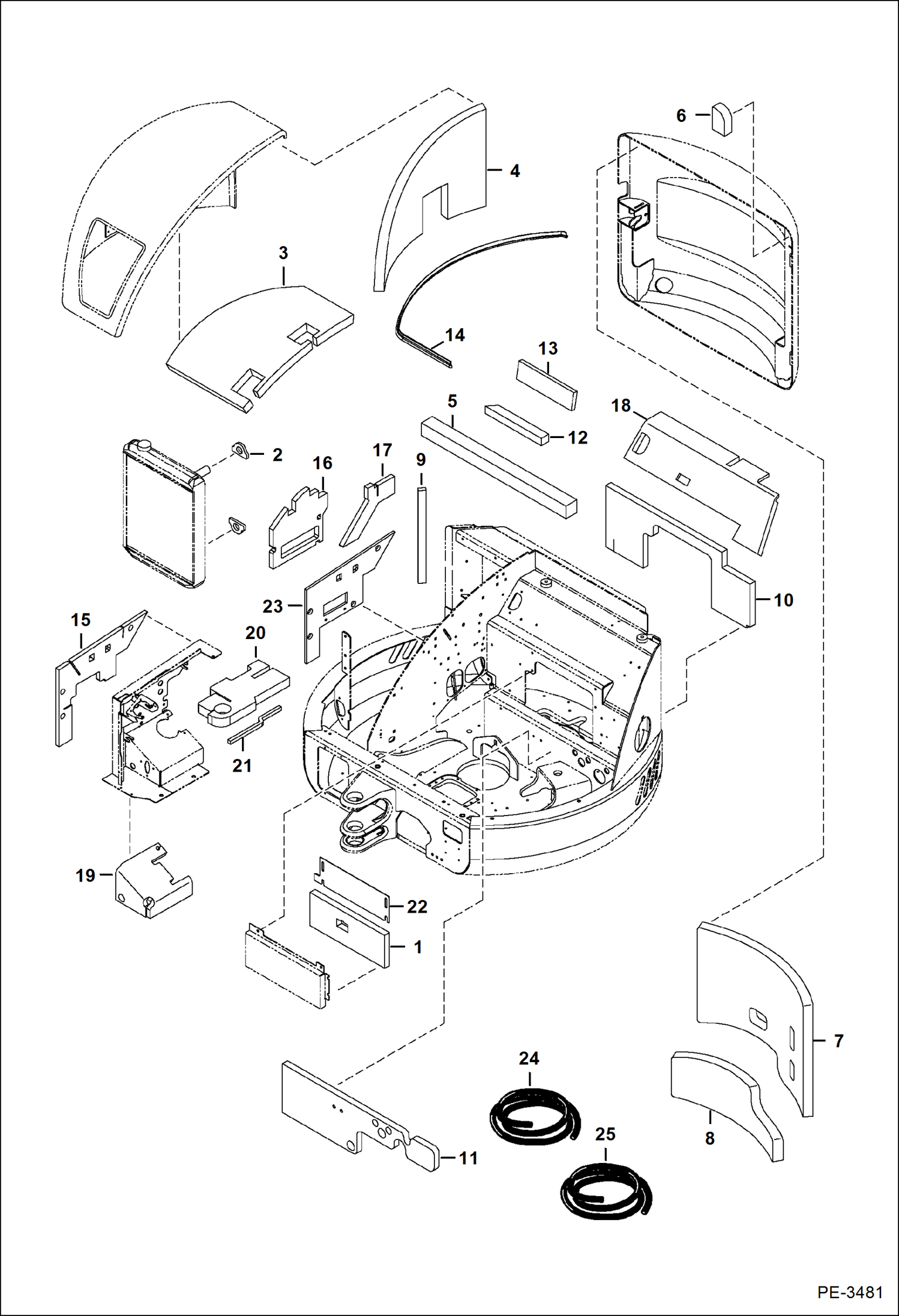

Запчасти Bobcat 435 INSULATION (S/N 5631 14000-14006, 15000 & Above) MAIN FRAME

1

6812193

INSULATION seat

2

6812377

INSULATION radiator

3

6814371

INSULATION RH cover

4

6814372

INSULATION RH cover

5

6814393

INSULATION tailgate

6

6816600

INSULATION tailgate

7

7100755

INSULATION tailgate

8

7100756

INSULATION tailgate - not Use W/ option ext arm 430 or long arm 435

9

7102123

INSULATION RH cover

10

7103022

INSULATION engine

11

7103023

INSULATION engine

12

7103034

INSULATION RH cover

13

7114273

INSULATION Europe sound requirement

14

SEAL BULB NLA - Europe sound requirement - 66'' (1676.4 mm) long - Order Ref. 24

15

7135614

INSULATION, CONSOLE RH

16

7135900

INSULATION, VALVE

17

7135902

INSULATION, VALVE

18

7135962

INSULATION, ENGINE

19

7138375

INSULATION, CONSOLE

20

7148581

INSULATION

21

INSULATION NLA - 16'' (406 mm) long - Order Ref. 25

22

7150750

INSULATION, SEAT

23

7151656

INSULATION, CONSOLE RH

24

6676396

SEAL bulk - sold per foot

25

6808577

SEAL 28.25'' (718 mm) long
