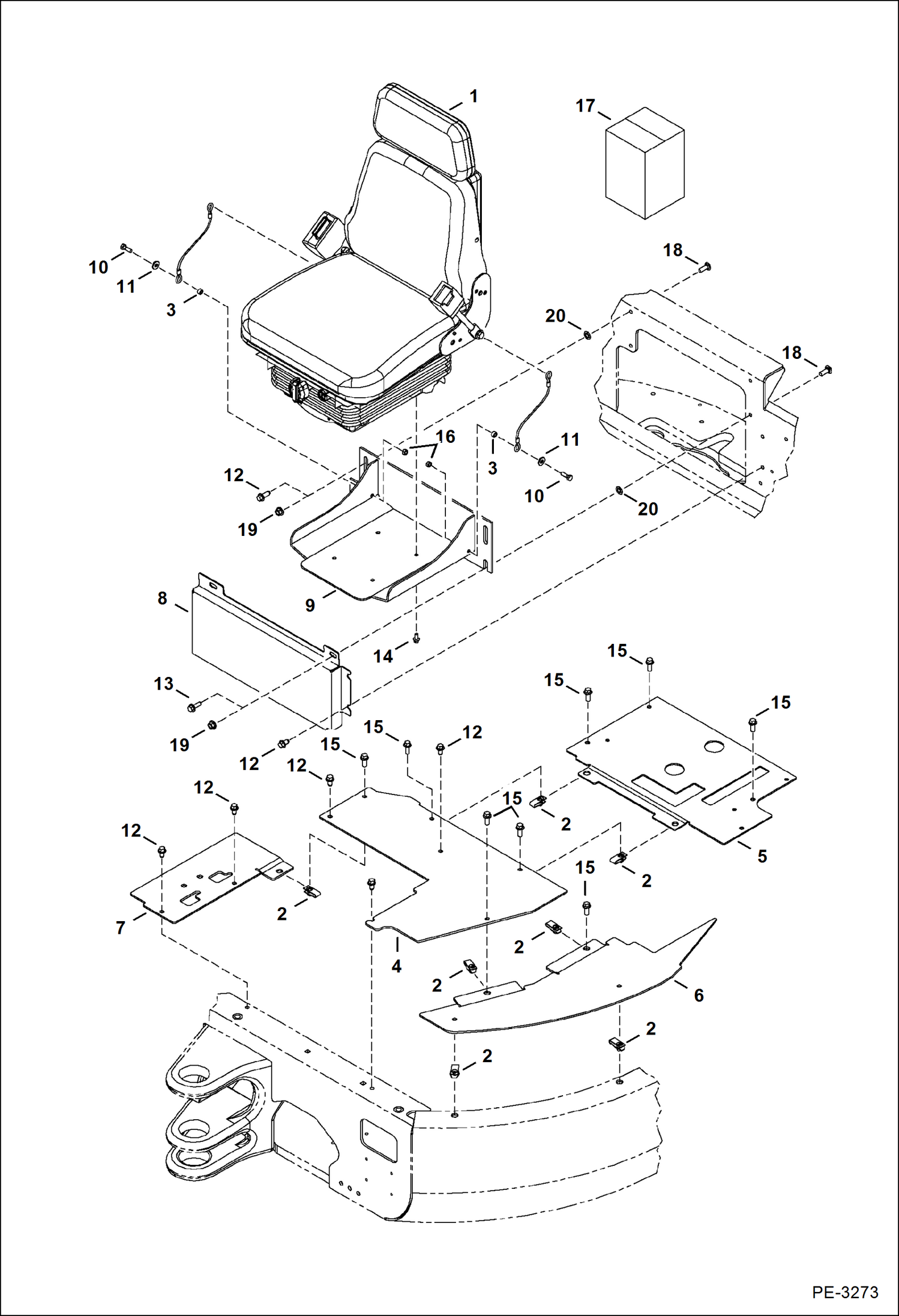

Запчасти Bobcat 435 OPERATOR AREA & SEAT MAIN FRAME

1

6685657

SEAT, OPERATOR VINYL - EXCAVATOR See Illustration SEAT SUSPENSION/ PE2300 - no seat belt or hardware

2

6675722

NUT

3

6802539

SPACER

4

6812296

PLATE front

5

6812297

PLATE rear - recessed

5

7135887

FLOORPLATE flat

6

6812298

PLATE

7

6812299

PLATE

8

6812458

PLATE

9

6814192

SEAT pan

10

1CM825

BOLT

11

25E16

WSHR

12

26GM10020

BOLT

12

26GM10020

BOLT

13

26GM10030

BOLT

14

29CM816

SCREW

15

29CM1025

BOLT

16

53DM8

NUT

17

6690059

SEAT RAIL KIT seat rail - slide, handle, knob

18

28CM1030

BOLT

19

51DM10

NUT

20

6674264

RETAINER NUT
