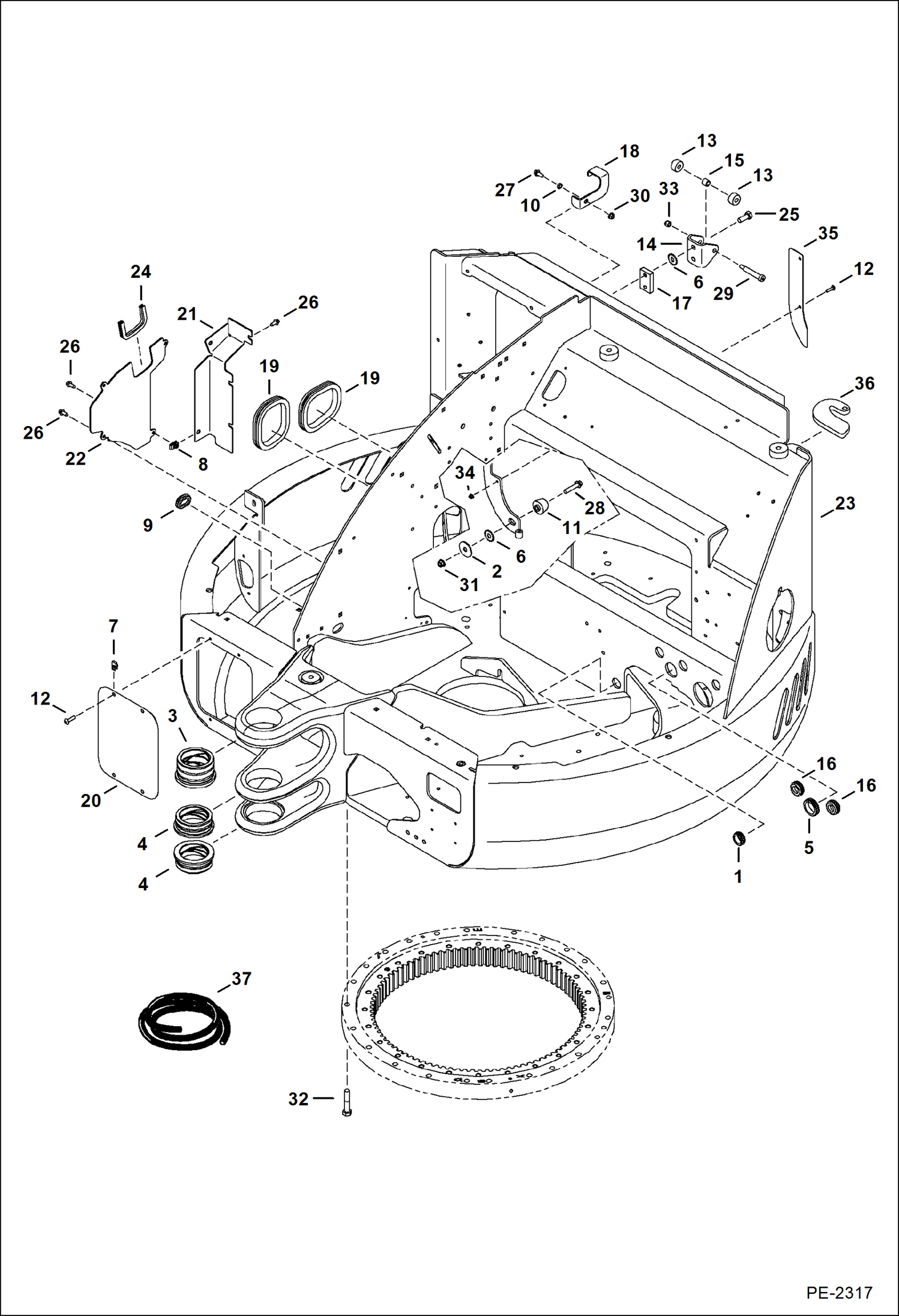

Запчасти Bobcat 435 UPPERSTRUCTURE (S/N 5631 11001-13999, 14007-14999) MAIN FRAME

1

6515603

GROMMET

2

6560899

WASHER flat

3

6628101

BUSHING

4

6628102

BUSHING

5

6670119

GROMMET

6

6675273

WASHER

7

6676026

NUT

8

6676169

NUT clip

9

6681886

GROMMET

10

6807220

SPACER

11

6808365

BUMPER

12

6809030

SCREW

13

6809726

ROLLER

14

6809727

CHANNEL

15

6809734

BUSHING

16

6810133

GROMMET

17

6810802

BAR striker

18

6811886

TAILGATE LOCK

19

7124332

GROMMET Was 6814926 - A

20

6816555

SCREEN

21

7101106

COVER

22

7101107

COVER

23

UPPERSTRUCTURE NLA - Order 7102847 upperstructure, 7109894 hose, and 7109134 bracket - Was 7102847 - A

23

7102847

UPPERSTRUCTURE

24

SEAL NLA - 7.7'' (196 mm) long - Order Ref. 37 - Was 7104660 - A

25

17C820

BOLT

26

26GM8020

SCREW

27

29CM820

SCREW

28

29CM1050

BOLT

29

38C840

BOLT

30

43DM8

NUT

31

51DM10

NUT

32

55CM1470

SCREW

33

59D6

NUT

34

43DM6

NUT

35

7110857

COVER

36

6810968

HINGE weld-on

37

6682492

TRIM bulk - sold per foot
